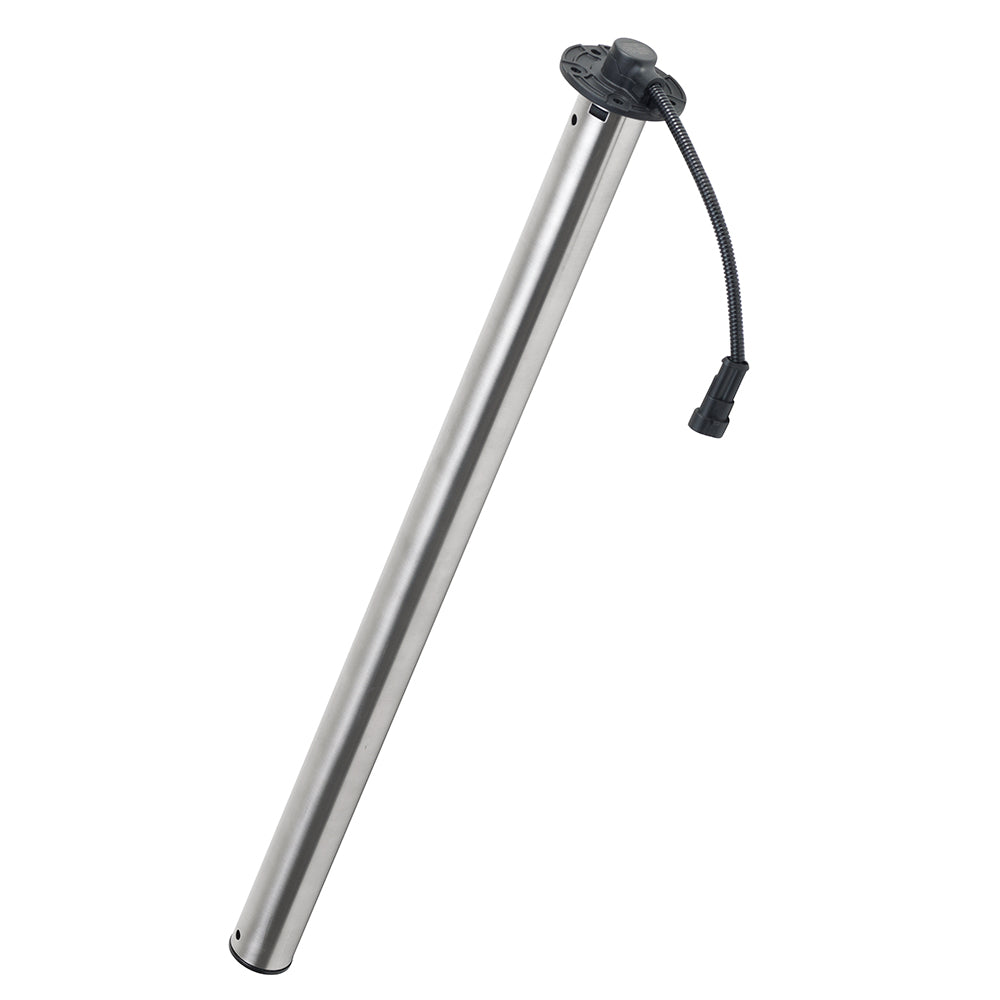

Veratron Deep-Pipe Level Sender - 300mm - 90 to 4 OHM

Ensure precise fuel level monitoring on your marine vessel with the Deep-Pipe Level Sender. Engineered specifically for use in fuel tanks, this robust sensor delivers reliable performance even in rough sea conditions, providing boaters with accurate fuel measurements essential for safe and efficient voyages.

Features

• Durable Stainless Steel Tubular Sensor
• Compatible with Various Fuels: Oil, Petroleum, Diesel, Gasoline, and Water
• Length: 300 mm

Technical Specifications

Connector	TE Superseal Connector 2-Pole IP67
Operating Temperature	-25°C to 65°C (-13°F to 149°F)
Operating Voltage	6 to 24 VDC
Compensation Chamber	Included
Flange	5-Hole SAE Flange 54mm PA66 GF30
Wiring Harness Length	200 mm
Signal Range	90–4 OHM
Protection Rating	IP67
Communication	Analog

What's in the Box

• Deep-Pipe Level Sensor
• Installation Kit
• Safety Instructions
• Installation Instructions

Note: Sold as an individual unit.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

Color	Silver
Box Dimensions	4"H x 4"W x 17"L
Weight	1.2 lbs
UPC	7640178726437
