Veratron Deep-Pipe Level Sender - 290mm - 90 to 4 OHM

The Deep-Pipe Level Sender is a reliable and precise solution for monitoring fuel levels in marine fuel tanks. Designed specifically for the demanding conditions of marine environments, this sensor ensures accurate readings by maintaining a stable float position, even in rough seas. Its robust construction and advanced features make it an essential component for effective fuel management on boats and yachts.

Product Overview

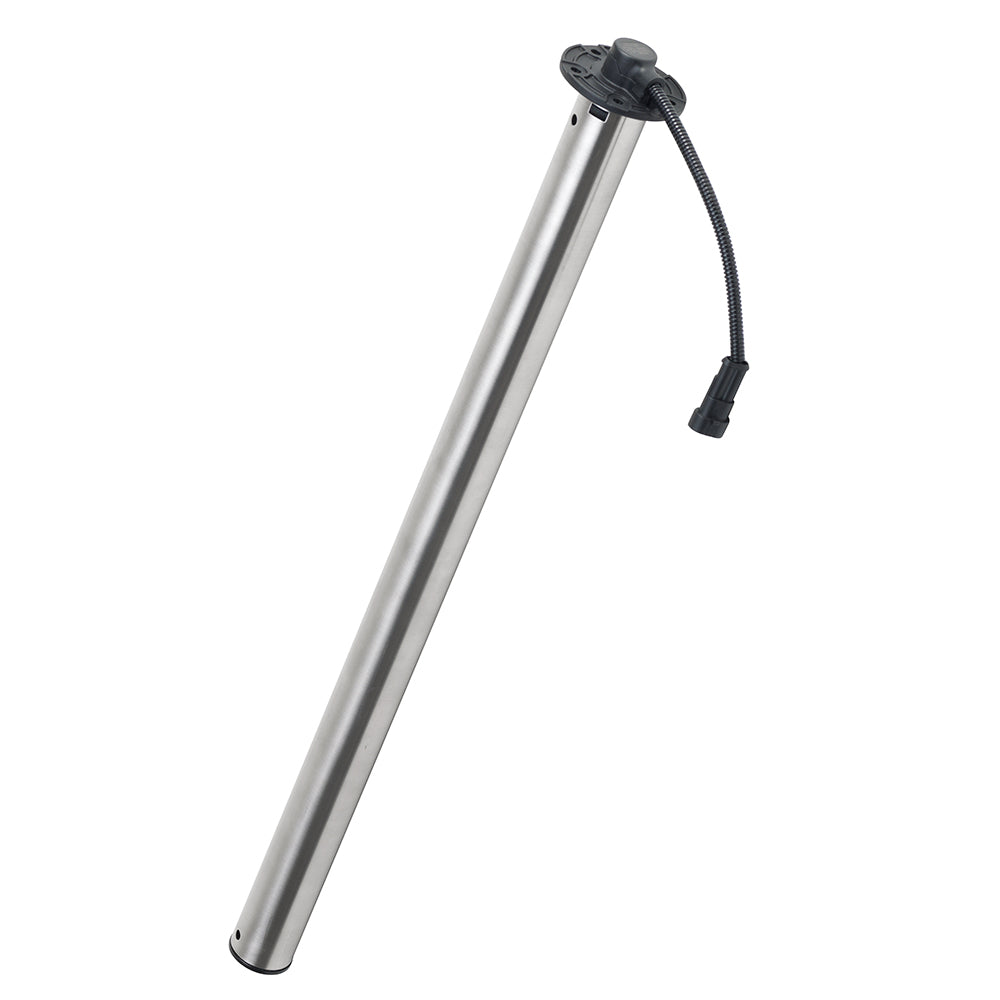

The Deep-Pipe Level Sender features a 290mm long, stainless steel vertical tube that houses a float to measure liquid levels accurately. The construction includes strategically placed small holes at both the top and bottom of the tube, acting as baffles to minimize fuel sloshing. This design ensures that the float remains stable, providing consistent and reliable measurements regardless of sea conditions.

Key Features

• Durable Construction: Made from high-quality stainless steel, ensuring longevity and resistance to corrosion in marine environments.
• Versatile Compatibility: Suitable for various liquids including fuel (Oi, Petroleum, Diesel, Gasoline) and water.
• Optimal Length: The 290mm length is ideal for most marine fuel tanks, with options available from 150mm to 1200mm to suit different tank sizes.
• Stable Performance: Baffle holes reduce fuel movement, maintaining the accuracy of the float position even in turbulent conditions.
• IP67 Rated: Provides excellent protection against dust and water ingress, ensuring reliable operation in harsh marine environments.

Technical Specifications

Specification	Details
Connector	TE Superseal Connector 2-Pole IP67
Operating Temperature	-25°C to 65°C (-13°F to 149°F)
Operating Voltage	6 to 24 VDC
Compensation Chamber	Included
Flange	5-Hole SAE Flange 54mm PA66 GF30
Wiring Harness	200 mm length
Signal Range	90–4 OHM
Protection Rating	IP67
Communication	Analog
Color	Silver

What's Included

• Deep-Pipe Level Sensor
• Installation Kit
• Safety Instructions
• Installation Instructions

Installation Notes

Ensure that the chosen length of the Deep-Pipe Level Sender is at least 4 mm above the base of your fuel tank once installed. This precaution guarantees accurate measurements and prevents potential issues related to tank settling or movement. Refer to the included installation instructions for detailed guidance on proper setup.

Additional Information

Sold Individually
