Veratron Deep-Pipe Level Sender - 270mm - 0 to180 OHM

Deep-Pipe Level Sender offers marine enthusiasts and professionals a precise and dependable solution for monitoring fuel and water levels in boats and marine tanks. Engineered for stability and durability, this sensor ensures accurate readings even in turbulent sea conditions.

Product Overview

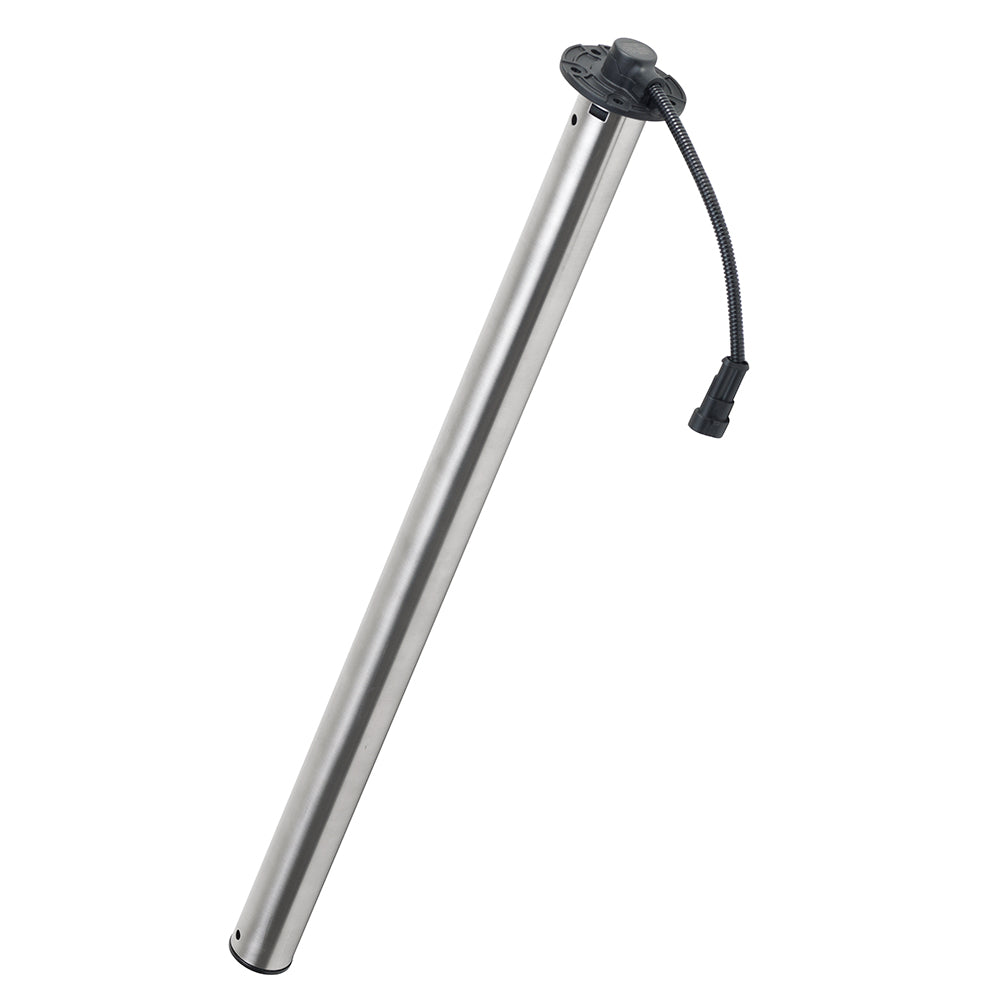

The Deep-Pipe Level Sender incorporates a sturdy 38 mm diameter vertical tube housing a float mechanism that directly measures liquid levels within fuel tanks. Designed to withstand the dynamic movements of marine environments, the sensor features small baffle holes at both the top and bottom of the tube. These baffles effectively dampen fuel sloshing, maintaining the float’s position steady regardless of sea state. Available in lengths from 150 mm up to 1200 mm, it is crucial to select a sensor length that allows at least a 4 mm clearance from the base of the fuel tank upon installation to ensure optimal performance.

Key Features

• Durable stainless steel tubular sensor for long-lasting use
• Compatible with various fuels including Oil, Petroleum, Diesel, Gasoline, and water applications
• Standard length of 270 mm, with customizable options available

Technical Specifications

Specification	Details
Connector	TE Superseal Connector, 2-Pole, IP67 rated
Operating Temperature	-25°C to 65°C (-13°F to 149°F)
Operating Voltage	6 to 24 VDC
Compensation Chamber	Included for enhanced measurement accuracy
Flange	5-Hole SAE Flange, 54mm, PA66 GF30 material
Wiring Harness	200 mm length for easy installation
Signal Range	0 to 180 OHM
Protection Rating	IP67 – Dust tight and protected against temporary immersion
Communication	Analog signal output

Package Includes

• Deep-Pipe Level Sender
• Comprehensive Installation Kit
• Safety Instructions
• Detailed Installation Instructions

Product Specifications

• Color: Silver

Installation Guidelines

When installing the Deep-Pipe Level Sender, ensure that the sensor length provides a minimum clearance of 4 mm from the base of the fuel tank. Proper installation guarantees accurate level readings and prevents potential damage to the sensor.
