Veratron Deep-Pipe Level Sender - 260mm - 90 to 4 OHM

The Deep-Pipe Level Sender is an essential component for accurately monitoring fuel levels in marine and boating applications. Designed to withstand the dynamic environment of boats, this sensor ensures reliable performance and stability, even in rough sea conditions.

Product Overview

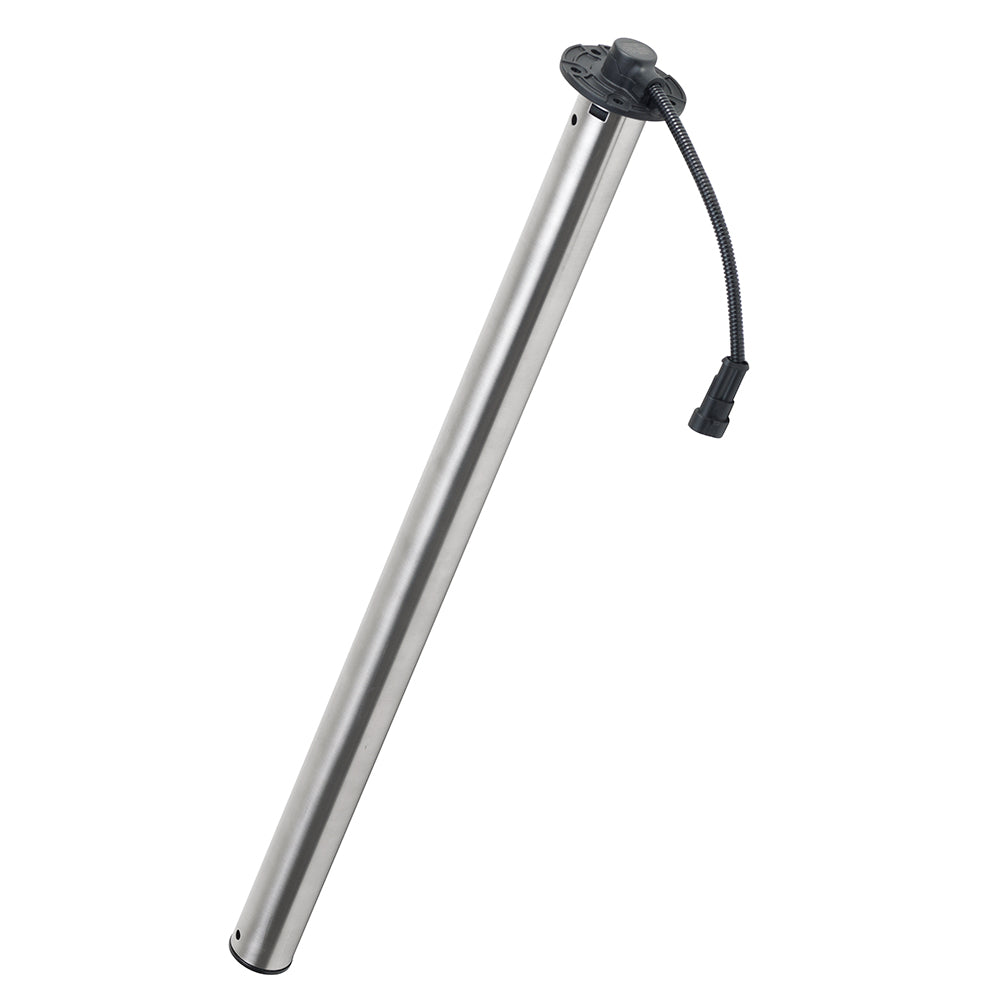

The Deep-Pipe Level Sensor is optimized for use in fuel tanks, featuring a robust 38 mm diameter vertical tube that houses a precision float. This float measures the liquid level with high accuracy. The sensor's design includes strategically placed small holes at both the top and bottom of the tube, acting as baffles to minimize fuel sloshing. This ensures the float remains steady, providing consistent readings regardless of the boat's movement or sea state.

Available in various lengths ranging from 150 mm to 1200 mm, it is crucial to select a sensor length that maintains at least a 4 mm clearance from the base of the fuel tank once installed.

Features

• Stainless steel tubular sensor for enhanced durability
• Compatible with a variety of liquids including fuel (Oi-Petroleum, Diesel, Gasoline) and water
• Standard length of 260 mm, with customizable sizes available

Technical Specifications

Feature	Specification
Connector	TE Superseal Connector 2-Pole IP67
Operating Temperature	-25°C to 65°C (-13°F to 149°F)
Operating Voltage	6 to 24 VDC
Compensation	Compensation chamber included
Flange	5-Hole SAE Flange 54mm PA66 GF30
Wiring Harness	200 mm length
Signal Range	90–4 OHM
Protection Rating	IP67
Communication	Analog

What's in the Box

• Deep-Pipe Level Sensor
• Installation Kit
• Safety Instructions
• Installation Instructions

Note: *Sold individually. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Additional Specifications

Specification	Detail
Color	Silver
