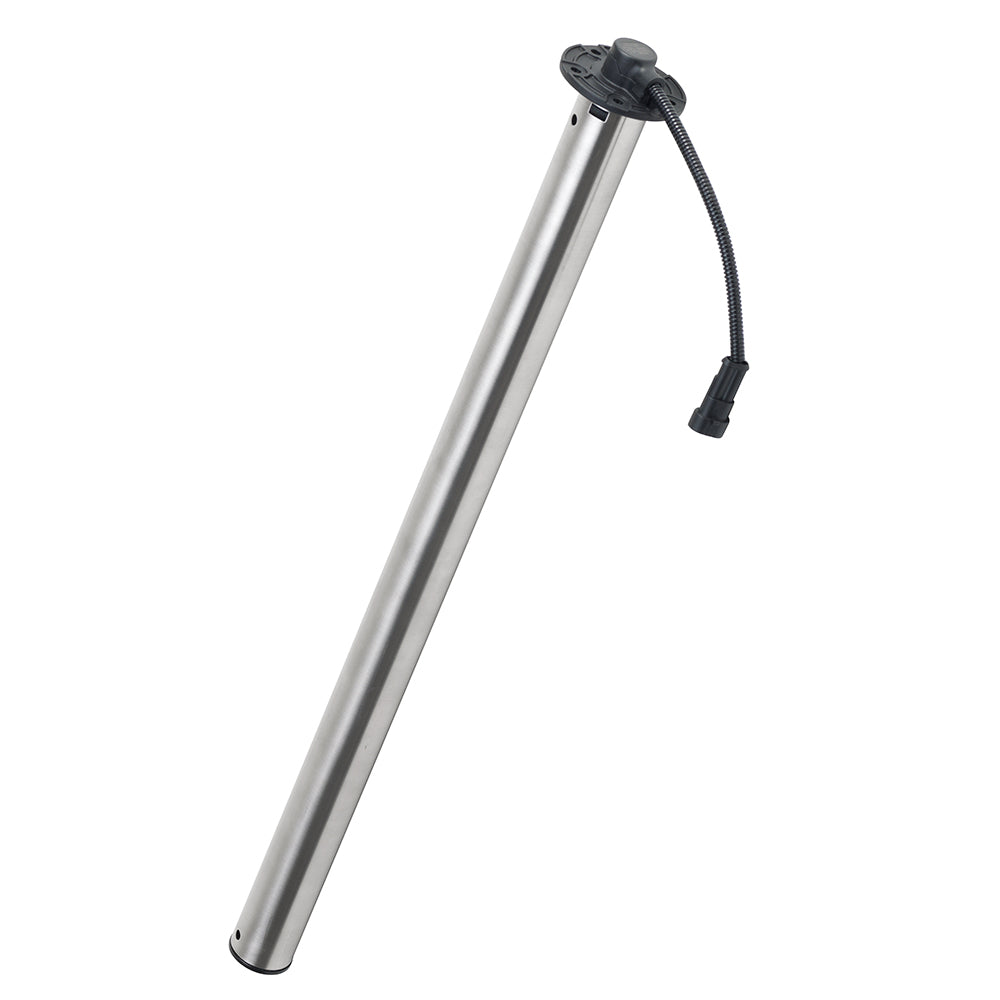

Veratron Deep-Pipe Level Sender - 220mm - 90 to 4 OHM

The Deep-Pipe Level Sender is specifically engineered for accurate liquid level monitoring in marine fuel tanks. With its robust 38mm stainless steel vertical tube and reliable float mechanism, it ensures stable readings even in rough sea conditions, making it an essential component for any boating or marine application.

Product Overview

The 220mm Deep-Pipe Level Sender is designed to provide precise measurement of fuel levels in various marine environments. Its vertical tube houses a durable float that responds to liquid levels, while strategically placed baffles prevent fuel sloshing, ensuring consistent sensor readings regardless of sea state. Available in lengths from 150mm to 1200mm, it is crucial to select a length that maintains a minimum of 4mm clearance from the base of the fuel tank when installed.

Features

• Construction: Stainless steel tubular sensor for enhanced durability.
• Compatibility: Suitable for use with fuel types including Oil, Petroleum, Diesel, Gasoline, and water.
• Length: 220mm, with options ranging up to 1200mm.

Technical Specifications

Specification	Details
Connector	TE Superseal Connector 2-Pole IP67
Operating Temperature	-25°C to 65°C (-13°F to 149°F)
Operating Voltage	6 to 24 VDC
Compensation	Compensation chamber included
Flange	5-Hole SAE Flange 54mm PA66 GF30
Wiring Harness	200mm in length
Signal Range	90–4 OHM
Protection Rating	IP67
Communication	Analog

What’s Included

• Deep-Pipe Level Sensor
• Installation Kit
• Safety Instructions
• Installation Instructions

*Sold individually

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

• Color: Silver

Installation Guide

Installing the Deep-Pipe Level Sender is straightforward with the included installation kit and instructions. Ensure that the selected sensor length maintains at least 4mm clearance from the base of the fuel tank for optimal performance. The TE Superseal Connector ensures a secure and waterproof connection, suitable for harsh marine environments.
