Veratron Deep-Pipe Level Sender - 190mm - 0 to 180 OHM

The Deep-Pipe Level Sender is a reliable and precise solution designed specifically for marine and boating fuel tanks. With its robust construction and advanced float mechanism, it ensures accurate fuel level measurements even in dynamic sea conditions, providing peace of mind for every voyage.

Product Overview

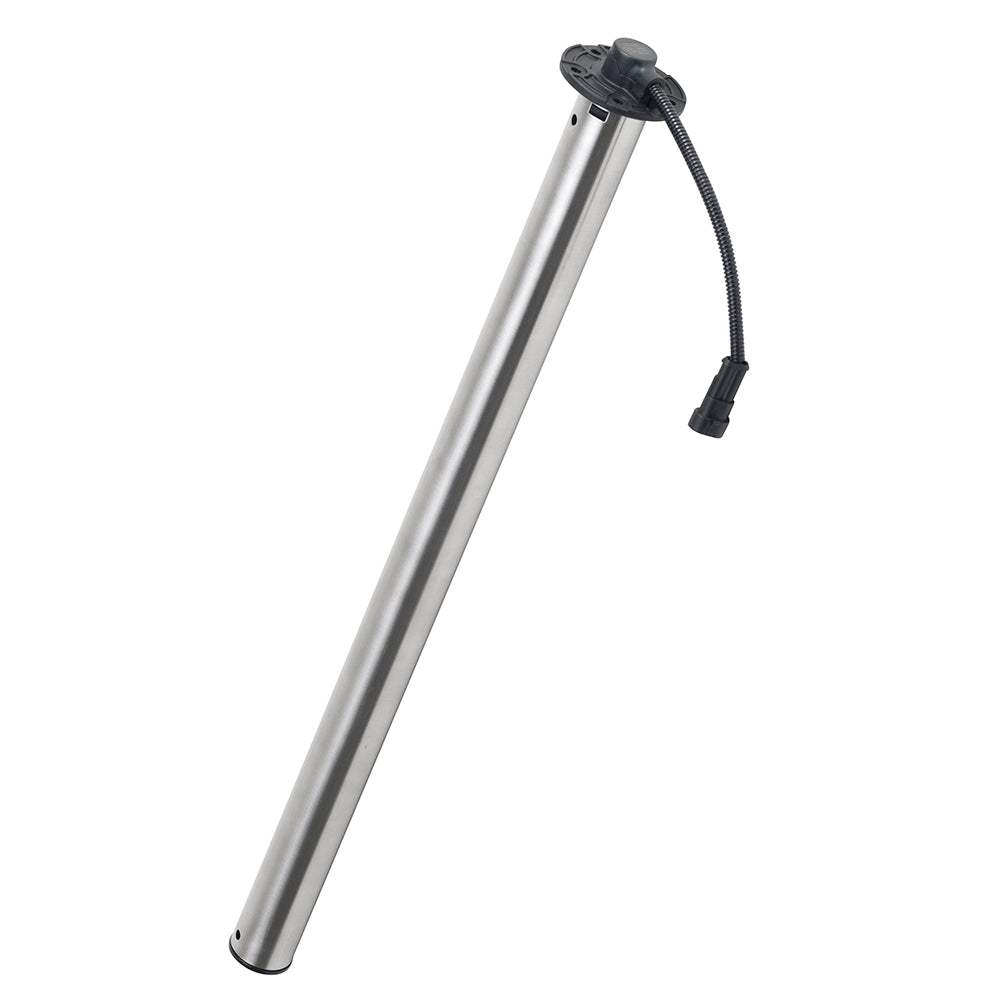

The Deep-Pipe Level Sender features a 38 mm diameter vertical stainless steel tube housing a float that accurately tracks the liquid level within fuel tanks. Engineered to minimize the impact of fuel sloshing, the sensor maintains a stable float position across various sea states, ensuring consistent and reliable readings. Available in lengths ranging from 150 mm to 1200 mm, this sensor allows for versatile installation tailored to different tank sizes and configurations. When installing, ensure the sensor extends at least 4 mm from the base of the fuel tank for optimal performance.

Key Features

• Constructed from durable stainless steel for longevity in marine environments
• Compatible with a wide range of fuels, including Oil, Petroleum, Diesel, and Gasoline, as well as water
• Standard length of 190 mm, with customizable options available

Technical Specifications

Specification	Details
Connector	TE Superseal 2-Pole IP67
Operating Temperature	-25°C to 65°C (-13°F to 149°F)
Operating Voltage	6 to 24 VDC
Compensation Chamber	Included
Flange	5-Hole SAE Flange 54mm PA66 GF30
Wiring Harness Length	200 mm
Signal Range	0 to 180 OHM
Protection Rating	IP67
Communication	Analog

What's Included

• Deep-Pipe Level Sender
• Installation Kit
• Safety Instructions
• Installation Instructions

*Sold individually

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

• Color: Silver
