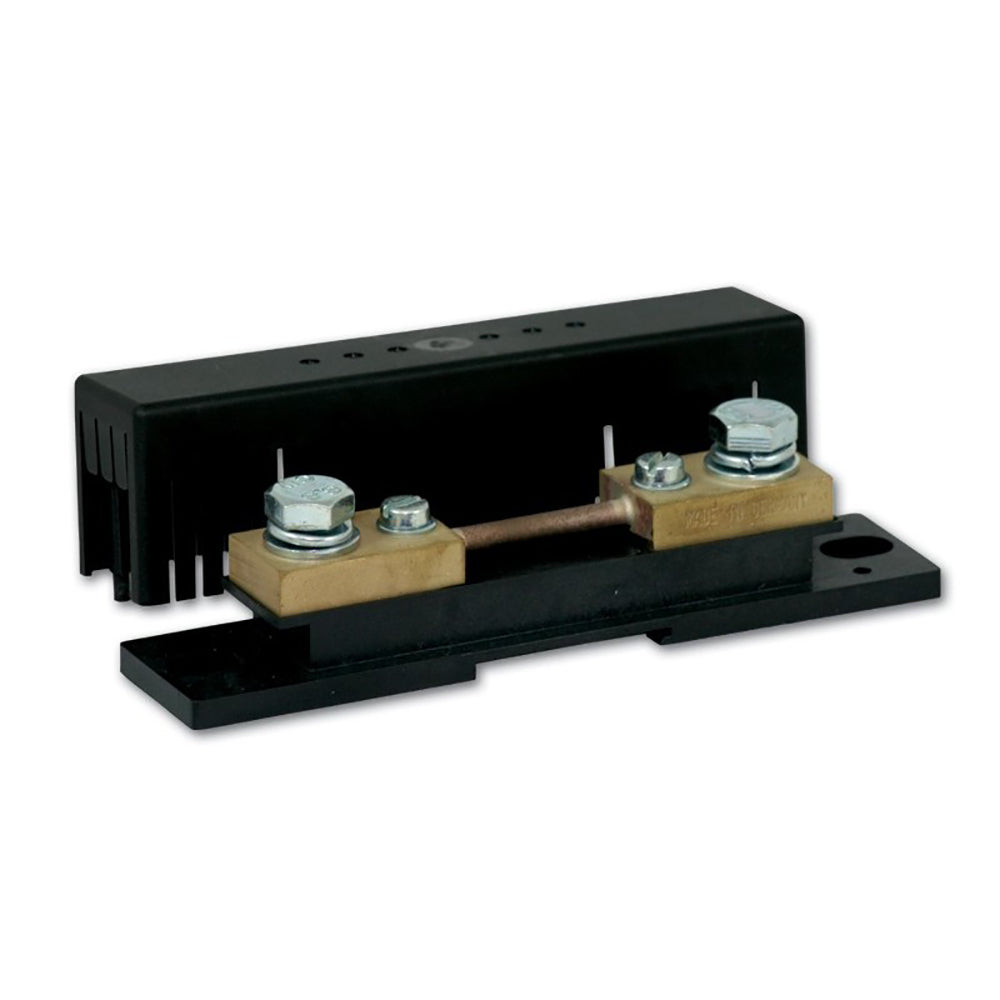

Veratron Ammeter Shunt -150/150AMP - 60mV Input - 12/24V

The Ammeter Shunt is a crucial component for efficiently managing and monitoring high-current electrical systems on your boat. It enables accurate measurement of electrical currents without the need for bulky wiring, enhancing both safety and performance in marine applications.

Product Overview

Ammeter Shunt - 150/150AMP - 60mV Input - 12/24V

Our Ammeter Shunt is designed to handle currents up to 150 amps, making it perfect for the demanding electrical needs of marine and boating systems. With a 60mV input, it delivers precise current measurements for both 12V and 24V setups commonly found on vessels.

Key Features

• High Current Capacity: Supports up to 150 amps, suitable for large marine electrical systems.
• Accurate Measurement: 60mV input ensures reliable and precise current readings.
• Versatile Voltage Compatibility: Compatible with both 12V and 24V systems, offering flexibility for various marine setups.
• Space-Saving Design: Compact size allows easy installation in tight spaces within your boat’s electrical panel.
• Enhanced Efficiency: Minimizes the need for thick wiring, reducing weight and simplifying the wiring layout.

Benefits for Marine Applications

In the marine environment, electrical systems face unique challenges such as constant vibrations, exposure to moisture, and limited space. Our Ammeter Shunt is built to withstand these conditions, ensuring long-lasting performance and accurate current monitoring. By using a shunt, you can monitor the total electrical flow with just two thin wires, simplifying installation and maintenance while enhancing the overall efficiency of your boat’s power system.

Technical Specifications

Specification	Details
Current Rating	150/150AMP
Input Voltage	60mV
Operating Voltage	12V / 24V

Installation Instructions

Installing the Ammeter Shunt in your marine electrical system is straightforward. Follow these steps to ensure a proper and safe installation:

1. Locate the main power line where current measurement is required.
2. Ensure the power is disconnected to prevent electrical hazards.
3. Insert the shunt into the circuit, observing correct polarity as indicated.
4. Connect two thin wires from your ammeter to the shunt at the earth connection point of the main system.
5. Secure all connections, ensuring there are no loose wires.
6. Restore power and verify the installation by checking the current readings on your ammeter.

Customer Support

Note: This product cannot be returned to the original point of purchase. For any issues or concerns, please contact the manufacturer directly to receive assistance and support.
