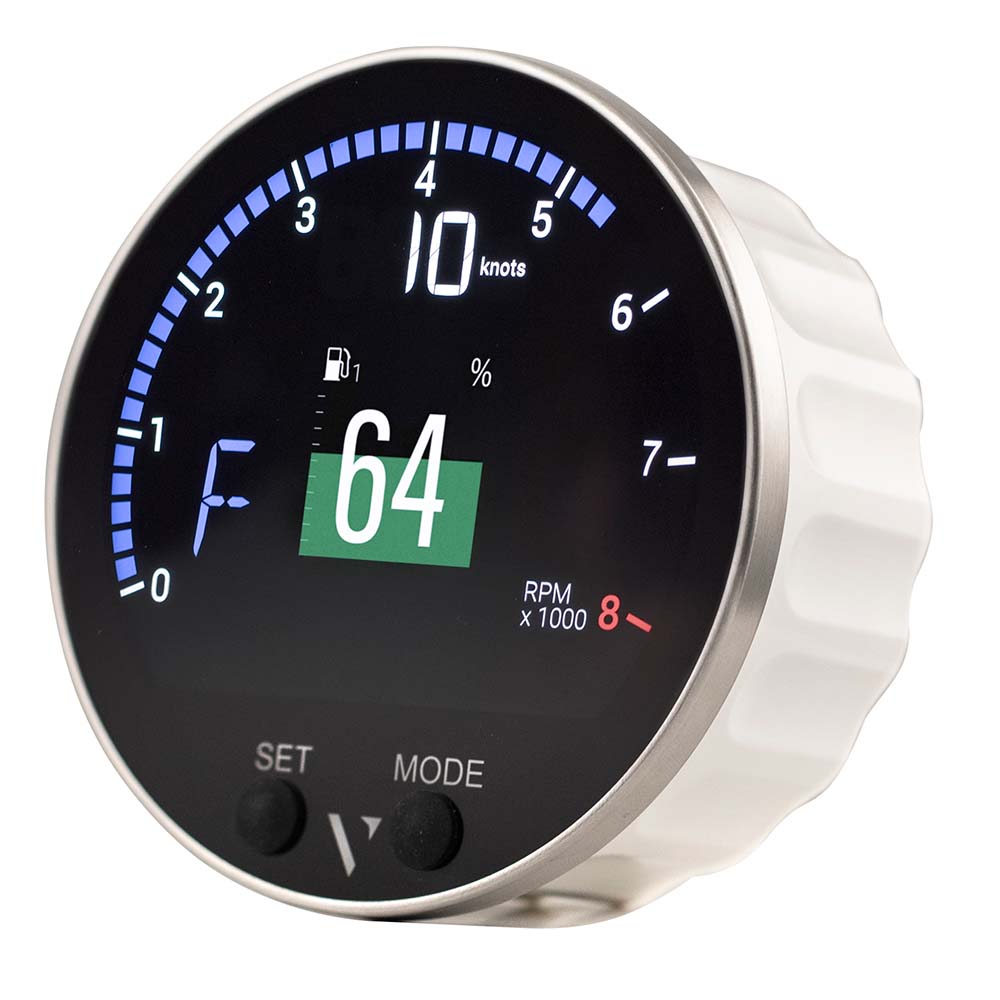

Veratron 85mm (3-3/8") VMH-35S Multifunction Gauge w/Voltage Dependent (0-5V) Sensor Input w/o GPS

The Veratron VMH-35S is the ultimate solution for outboard engine monitoring, specifically designed for marine and boating enthusiasts. Featuring a digital, sun-readable display complemented by analog inputs and an NMEA 2000 converter, this premium gauge ensures precise and reliable engine data at your fingertips. As the first model in Veratron's new VMH line, the VMH-35S is tailored for single inboard or outboard engine applications, combining advanced technology with a sleek, durable design.

Key Features

• Digital Sun-Readable Display: Easily view essential engine data in bright sunlight.
• Analog Inputs: Equipped with 1x Resistive, 1x 0-5 V, and 1x Frequency inputs for versatile sensor integration.
• NMEA 2000 Compatibility: Seamless connectivity with your boat's network via the embedded analog gateway.
• Energy Efficient: Operates at full brightness while drawing only 170mA, significantly lower than comparable TFT screens.
• Data-Rich: Provides up to 30 types of data, including engine stats, EcoMode pop-up screen, RPMs up to 8000 with programmable overspeed alarm, tank levels, battery status, and vessel information.
• User-Friendly Configuration: Easily configure settings using the embedded on-screen menu and soft-touch buttons.
• Stylish and Durable Design: Features a black-glass display with a brushed stainless-steel front ring and mineral glass lens.

Technical Specifications

Specification	Details
Nominal Voltage	12V
Operating Voltage	9-16V
Current Consumption	≤ 150 mA (normal mode)
Protection Class	IP X7
Dimensions	100 mm (outer) x 85 mm (mounting hole)
Display	1.44" TFT, color IBN, optically bonded
Connectors	Molex MX-150 12 pins / DeviceNet M12 5 pins
Series	VMH
Gauge Size	3-3/8"
Weight	0.75 lbs
UPC	7640190290213
Box Dimensions	4"H x 6"W x 6"L

Additional Features

• Intelligent Battery Sensor (IBS) Port: Monitor your battery status effectively.
• Front Ring and Lens: Crafted with brushed stainless steel and durable mineral glass for a premium look and long-lasting durability.

Package Includes

• Gauge Unit: VMH-35S Multifunction Gauge
• Connectors: Molex MX-150 and DeviceNet M12 connectors
• Documentation: Quick Guide and Owner's Manual available in PDF

Important Information

This product cannot be returned to the original point of purchase. Please contact the manufacturer directly for any issues or concerns.

Resources

Quick Guide (pdf)
Owner's Manual (pdf)
