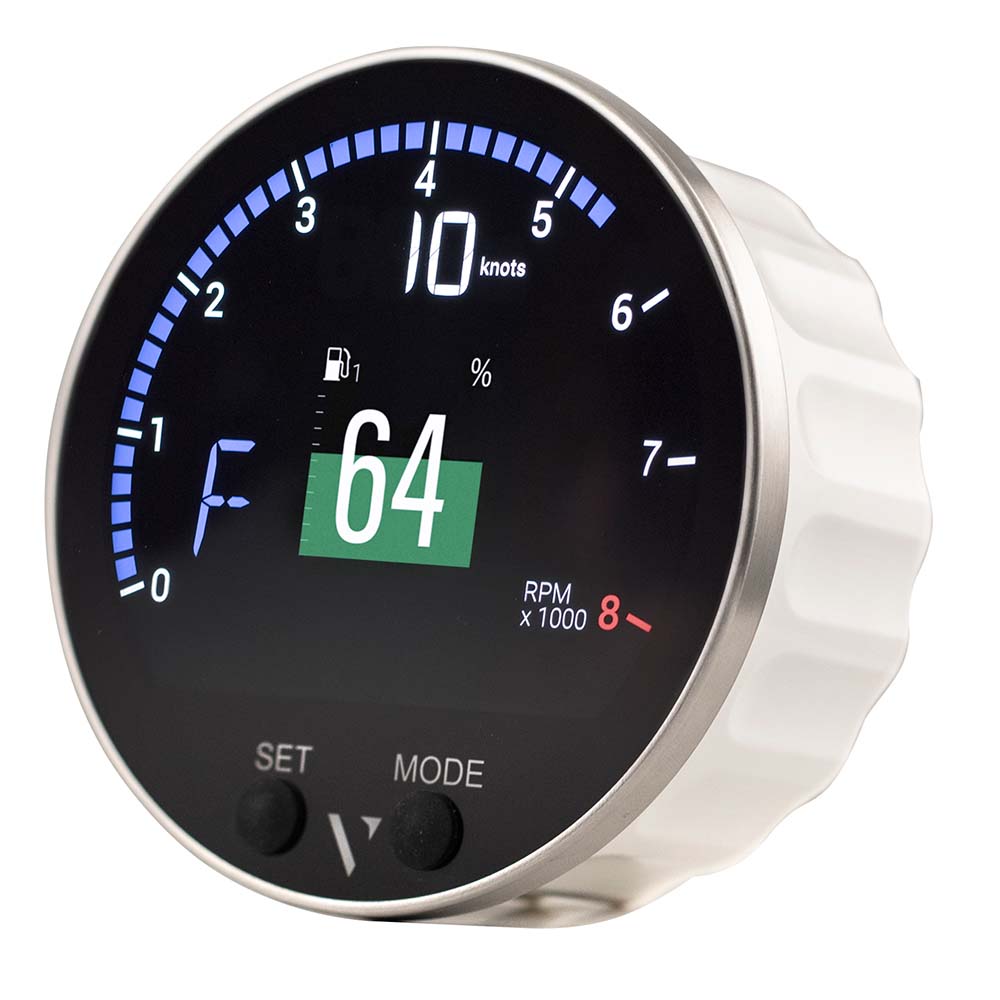

Veratron 85mm (3-3/8") VMH-35S Multifunction Gauge w/Voltage Dependent (0-5V) Sensor Input

The Veratron VMH-35S Multifunction Gauge is the ultimate solution for monitoring your outboard engine, offering a bright digital sun-readable display, versatile analog inputs, and seamless NMEA 2000 connectivity. Designed specifically for marine applications, this premium gauge integrates a high-performance GNSS receiver, making it the perfect addition to your boat's cockpit.

Key Features

• Integrated High-Performance GNSS Receiver: Ensures accurate positioning and navigation data.
• Intelligent Battery Sensor (IBS) Port: Monitors battery status for optimal performance.
• Analog Inputs:
  • 1x Resistive
  • 1x 0-5 V
  • 1x Frequency
• Stylish Design: Features a black-glass display with a brushed stainless-steel ring.
• Durable Front Ring: Made from brushed stainless steel for longevity.
• High-Quality Front Lens: Constructed with mineral glass for clear visibility.
• Vivid Display: Color IBN + 1.44" TFT optically bonded screen.
• Robust Connectors:
  • Molex MX-150 12 pins
  • DeviceNet M12 5 pins
• NMEA 2000 Certified: Includes an embedded analog gateway for expanded connectivity.
• Comprehensive Connectivity: Supports NMEA 2000, LIN, and EasyLink systems.

Technical Specifications

Nominal Voltage	12V
Operating Voltage	9-16V
Current Consumption	≤ 150 mA (normal mode)
Protection Class	IP X7
Dimensions	100 mm (outer) x 85 mm (mounting hole)

Product Specifications

Box Set	No
Gauge Size	3-3/8"
Gauge Type	Multifunction
Series	VMH
Voltage - Input Range	12V
Box Dimensions	4"H x 4"W x 6"L
Weight	0.75 lbs
UPC	7640190290206

Performance and Efficiency

Powered by the latest microprocessor, the Veratron VMH-35S delivers exceptional speed and responsiveness. Even at full brightness, it maintains a low power draw of just 170mA, significantly reducing energy consumption compared to traditional TFT screens.

Data Monitoring Capabilities

The VMH-35S can display up to 30 different types of data, including:

• Engine performance metrics
• EcoMode pop-up screens
• RPMs up to 8000 with a programmable overspeed alarm
• Tank levels
• Battery status
• GPS and vessel information

Configuration is straightforward with the embedded on-screen menu and intuitive soft-touch buttons, allowing you to customize the display to your specific needs.

Connectivity and Integration

The VMH-35S seamlessly integrates with your boat's existing systems through multiple connectivity options:

• NMEA 2000: Ensures reliable communication with other marine electronics.
• LIN: Facilitates easy integration with various onboard devices.
• EasyLink: Simplifies the setup and configuration process.

Return Policy

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Resources

Quick Guide (PDF)
Owner's Manual (PDF)
