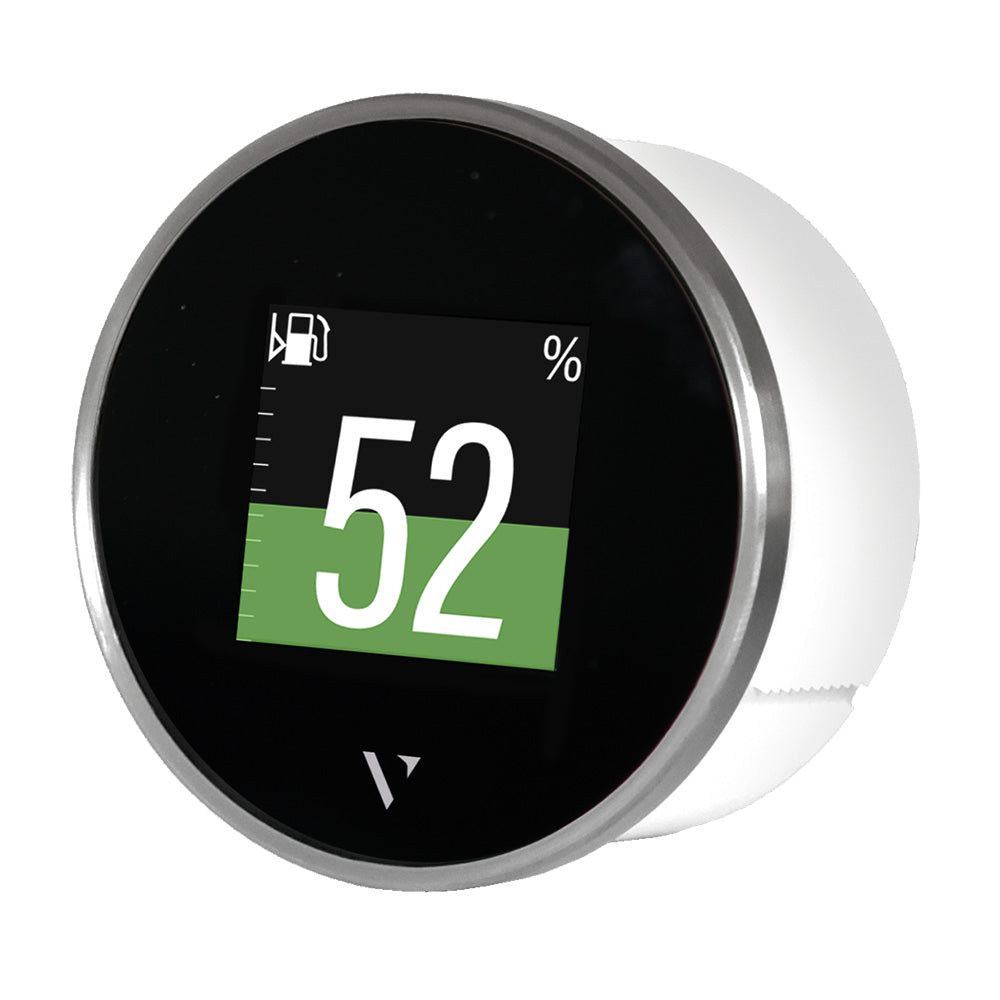

Veratron 52mm (2-1/16") VMH Flex Multifunction Gauge - NMEA2000

The VMH Flex Multifunction Gauge - NMEA2000 offers boaters a sleek and efficient way to monitor a wide range of vessel data through its compact design. Engineered to withstand harsh marine conditions, this versatile gauge ensures that critical information remains visible and accessible, whether you're navigating in heavy rain or handling rough seas. The state-of-the-art laser touch button facilitates seamless navigation between up to five customizable screens, all of which can be easily configured using your smartphone for a personalized boating experience.

Features

• Multiple Display Options: Navigate through up to five screens in both single and dual layout configurations to view the data most important to you.
• Comprehensive Functionality: Monitor essential boat metrics including rudder position, trim level, speed, engine revolutions, engine hours, fuel levels, fresh water levels, wastewater levels, coolant temperature, oil temperature, engine oil pressure, transmission oil pressure, boost pressure, depth, clock, compass, and battery status.
• Reliable Operation: The innovative laser touch-button is designed to function flawlessly in all weather conditions, making it easy to use even while wearing gloves.
• Seamless Connectivity: Equipped with NMEA 2000® connectivity for integration with your boat's existing navigation and monitoring systems.
• Direct Sensor Integration: Features two analog resistive inputs for direct connections to your boat's sensors.
• Advanced Conversion: Includes an embedded analog to NMEA 2000® converter for enhanced compatibility and data management.
• Smart Battery Management: Comes with a LIN port for connecting an Intelligent Battery Sensor, ensuring optimal battery performance and longevity.

Technical Specifications

Specification	Details
Nominal Voltage	12/24V
Operating Voltage	9-32V
Protection Class	IPX7
Dimensions	60mm (outer), 52mm (mounting hole)
Display	1.44" sun-readable color TFT display
Resolution	125 x 125 pixels
Analog Inputs	1x resistive, 1x frequency
Connectors	Tyco / Hirschmann MQS connector 8 pin / Micro-C M12 5Pin
Digital Ports	NMEA2000, LIN bus
Wireless Interface	NFC

What's in the Box

• 1x VMH Flex – NMEA 2000®
• 1x 52 mm Spinlock Nut
• 1x Rubber Sealing Gasket
• 1x Wiring Harness – NMEA 2000®
• 1x Safety Instructions and Veratron Card

Download the Owner's Manual (PDF)
