Veratron  |  SKU: LOS-107275  |  Barcode: 7640190290060

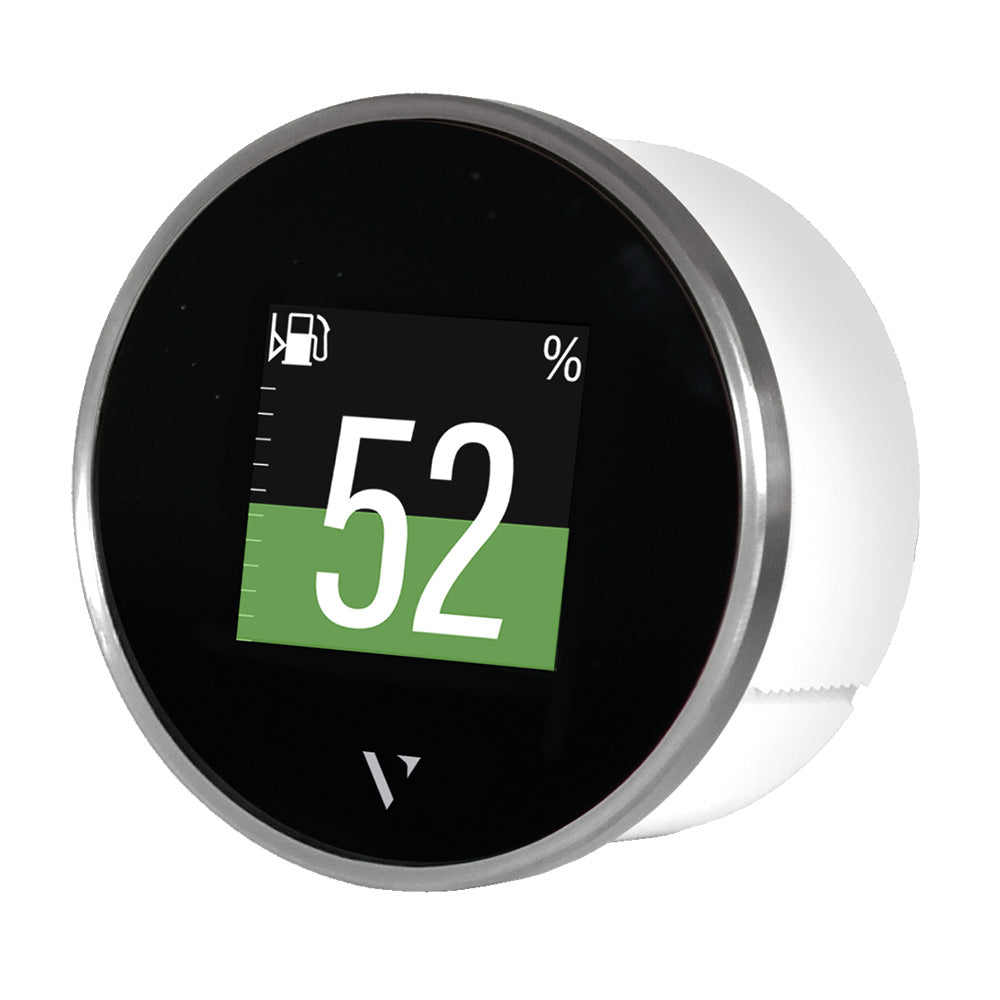

Veratron 52mm (2-1/16") VMH Flex Multifunction Gauge - J1939

$150.57 USD $167.30

Product Description

The VMH Flex Multifunction Gauge offers boat enthusiasts a compact yet comprehensive solution to monitor essential marine data. Designed to withstand harsh maritime environments, this gauge ensures you have critical information at your fingertips, whether you're navigating in calm waters or challenging weather conditions.

Key Features

  • Up to 5 customizable, scrollable screens available in single or dual layouts
  • Comprehensive functions including Rudder, Trim, Speed, Engine Revolution, Engine Hours, Fuel Level, Fresh Water Level, Wastewater Level, Coolant Temperature, Oil Temperature, Engine Oil Pressure, Transmission Oil Pressure, Boost Pressure, Depth, Clock, Compass, and Battery monitoring
  • Innovative laser touch-button designed for reliable use in all conditions, including when wearing gloves or in the rain
  • Seamless SAE J1939 connectivity for integrated marine systems
  • Two analog resistive inputs for direct sensor connections
  • LIN port compatible with Intelligent Battery Sensors for enhanced power management

Technical Specifications

Specification Details
Nominal Voltage 12/24V
Operating Voltage 9-32V
Protection Class IPX7
Dimensions 60mm (outer), 52mm (mounting hole)
Display 1.44" sun-readable color TFT display
Resolution 125 x 125 pixels
Analog Inputs 1x resistive, 1x frequency
Connectors Tyco / Hirschmann MQS connector 8-pin
Digital Ports J1939, LIN bus
Wireless Interface NFC

What's Included

  • 1x VMH Flex – J1939 Multifunction Gauge
  • 1x 52 mm Spinlock Nut for secure mounting
  • 1x Rubber Sealing Gasket to ensure water resistance
  • 1x Wiring Harness – J1939 for easy installation
  • 1x Safety Instructions and Veratron Card for quick setup and reference

Download the Owner's Manual (PDF)

Delivery and Shipping

Orders of physical products placed by 3 PM EST M-F typically ships the same day, if all requested items are in stock. Weekend orders will typically ship on Monday.

Shipping takes 2-7 days.

We currently ship to the Contiguous 48 States.

Life of Sailing merch is custom made for the customer after an order is placed. Total turnaround is typically 7-14 days from order to doorstep.
