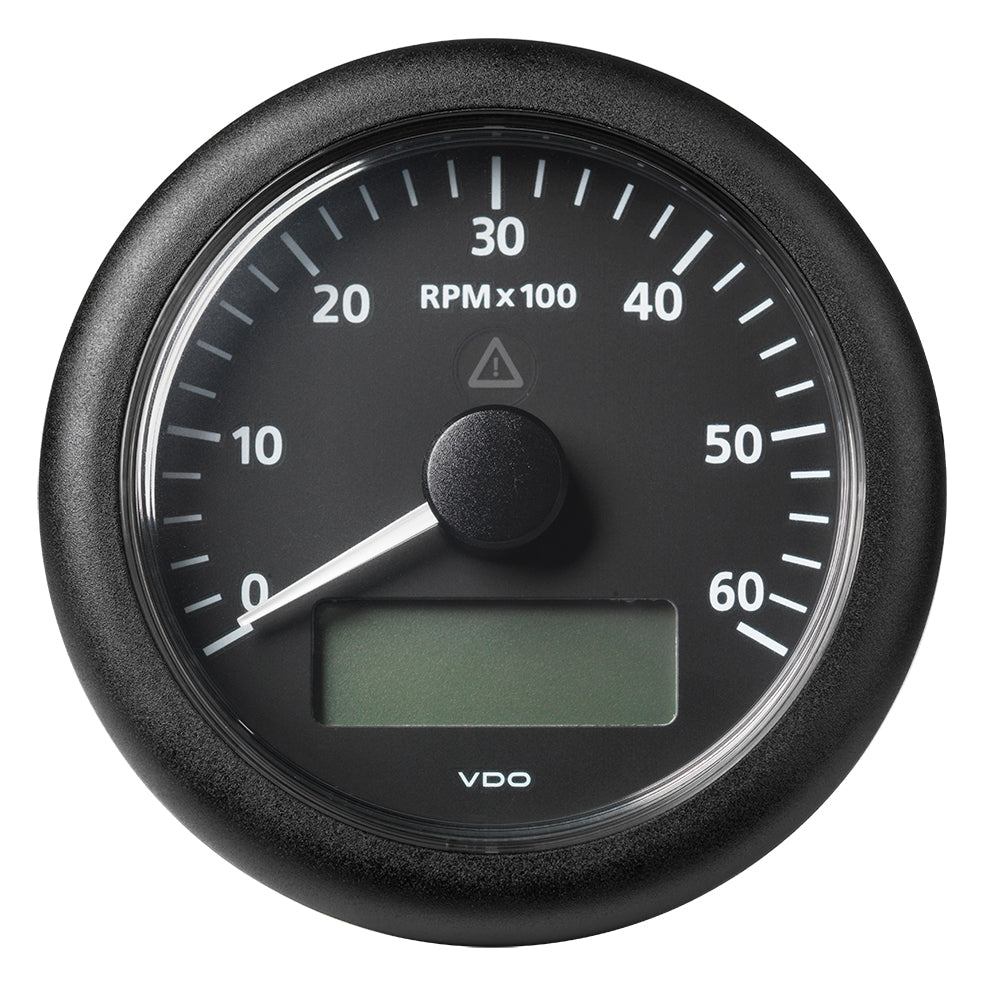

Veratron 3-3/8" (85MM) ViewLine Tachometer w/Multi-Function Display - 0 to 6000 RPM - Black Dial Bezel

Upgrade your marine vessel's instrumentation with the ViewLine 3-3/8" Tachometer, featuring a versatile multi-function display that accurately monitors engine RPM up to 6000. Designed for durability and seamless integration, this tachometer is ideal for conventional marine engines without the need for a data bus.

Key Features

• Choose between models with or without an operating hours counter (digital display)
• Compatible with a variety of sensor inputs, including Wideband (W), Inductive (Ind), Hall, and Generator
• Integrated LED warning light enhances safety and alerts
• Optional acoustic alert output for additional notifications
• Low power consumption, drawing less than 175 mA with the LED warning light
• Programmable number of pulses via dip switch or using the ViewLine PC software
• Anti-fog double lens ensures clear visibility in all weather conditions
• Robust protection ratings with IP67 front and IP52 rear, suitable for harsh marine environments
• Reverse polarity protection safeguards against incorrect wiring

Technical Specifications

Display	LCD size: 37 mm x 11 mm
Housing	8 and 14 pole Tyco / Hirschmann bush housing
Operating Voltage	8 – 32 V
Accuracy	± 2.5% of full scale reading
Installation	Diameter: 85 mm Depth: 50 mm
Operating Temperature	-20 °C to +70 °C
Power Consumption	Less than 175 mA with LED warning light
Protection Rating	Front: IP67 Rear: IP52

Product Details

• Series: ViewLine
• Gauge Type: Multifunction
• Gauge Size: 3-3/8"
• Box Set: Not included
• Box Dimensions: 4" H x 7" W x 8" L
• Weight: 0.45 lbs
• UPC: 7640178722163

Installation and Compatibility

The ViewLine Tachometer is engineered for easy installation on a wide range of marine engines. Its 85 mm installation diameter and 50 mm installation depth make it compatible with most standard dashboards. Whether you're upgrading your existing instrumentation or installing a new system, this tachometer provides reliable performance without the need for a data bus connection.

Durability and Protection

Built to withstand the challenging conditions of marine environments, the ViewLine Tachometer features an anti-fog double lens and high protection ratings (IP67 front and IP52 rear). This ensures clear visibility and long-lasting performance, even in humid or wet conditions.

Programming and Customization

Customize your tachometer settings with ease. The number of pulses can be programmed either via a dip switch or through the ViewLine programming tool software on your PC. This flexibility allows for precise calibration to match your engine's specifications.
