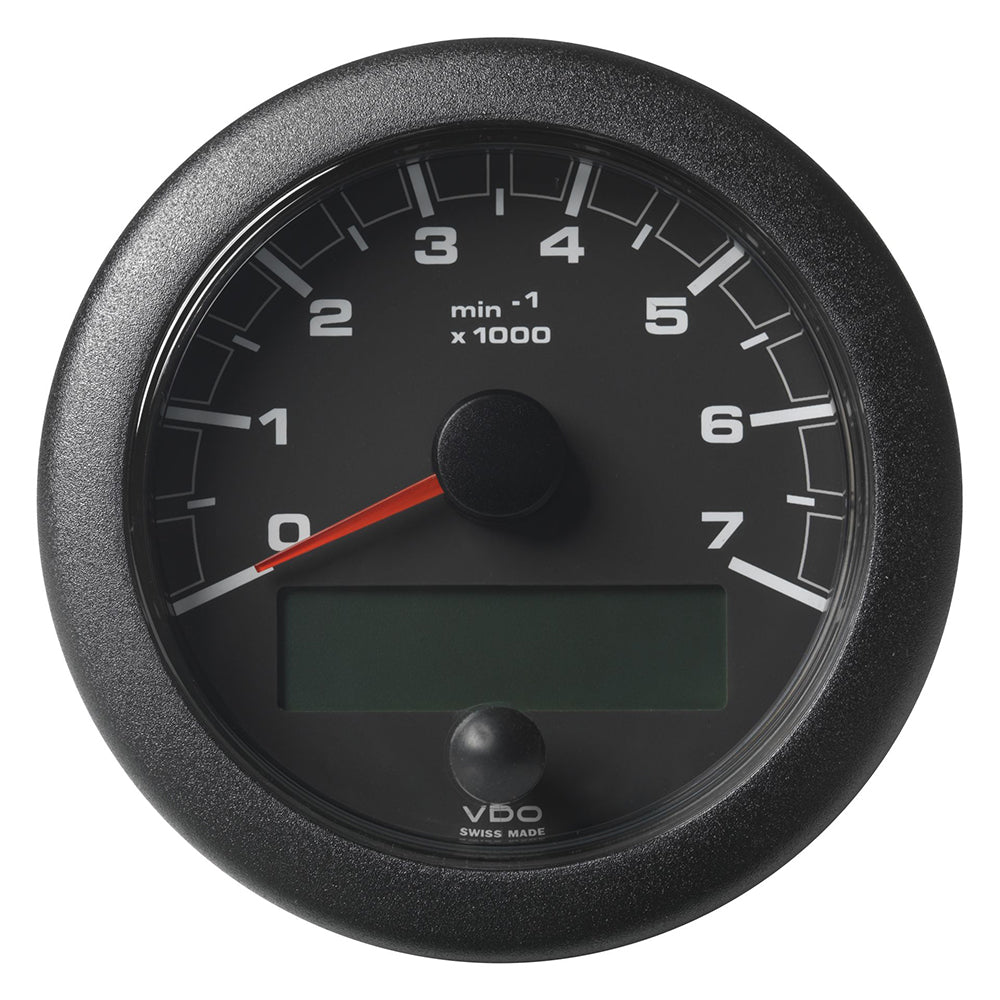

Veratron 3-3/8" (85MM) OceanLink NMEA 2000 Tachometer - 7000 RPM - Black Dial Bezel

The OceanLink® NMEA 2000® Tachometer is a vital addition to any marine dashboard, providing precise and real-time monitoring of your vessel's engine performance. Featuring a sleek black dial and bezel, this tachometer ensures that critical data such as oil pressure, fuel consumption, and operating hours are always within clear view, enhancing both safety and efficiency on the water.

Features

• Generous inverted dot matrix digital display for enhanced readability
• Monitors key parameters including oil pressure, fuel consumption, and operating hours
• Compatible with CAN interface using NMEA 2000® and SAE J1939 data protocols
• Equipped with two analog sensor inputs for expanded functionality
• EasyLink data connection simplifies installation, reducing time and costs
• Satellite instruments receive central updates every 20 milliseconds for dynamic measurements
• Reverse polarity protection ensures safe operation
• IPX5 protection rating for reliable performance in harsh marine environments
• Operates efficiently within a temperature range of -20°C to +70°C
• Supports both 12V and 24V power systems

Technical Specifications

Specification	Details
Gauge Type	Tachometer with System Check
Voltage Input Range	12/24V
Gauge Size	3-3/8" (85MM)
Series	OceanLink
Box Dimensions	4"H x 8"W x 8"L
Weight	0.85 lbs
UPC	7640178720985
Protection Rating	IPX5
Operating Temperature Range	-20°C to +70°C
Inputs	1x NMEA 2000®, 1x J1939 and analog
Additional Features	Reverse polarity protection
