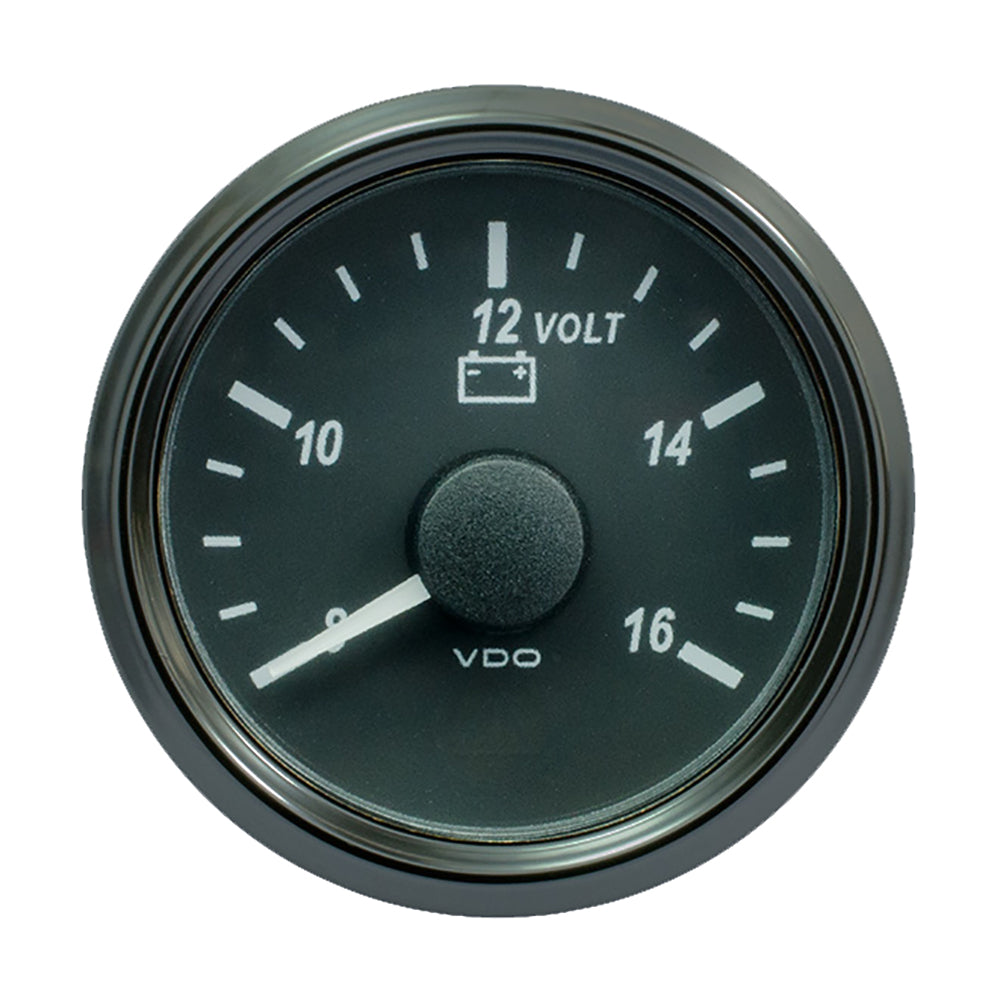

VDO SingleViu 52mm (2-1/16") Voltmeter f/12V Systems

Enhance your marine electrical system with the SingleViu 52mm (2-1/16") Voltmeter, specifically designed for 12V applications. This advanced voltmeter seamlessly integrates with traditional analog senders or connects directly to a J1939 CAN network, providing accurate and reliable performance for your boating needs.

Product Overview

The SingleViu 52mm Voltmeter is at the forefront of marine instrumentation technology. Equipped with its own microprocessor, each gauge offers dual-input capabilities, allowing you to switch effortlessly between analog input and J1939 CAN via the SingleViu Configuration software. Additionally, network fault codes are easily accessible directly on your speedometer or tachometer, ensuring you stay informed about your vessel's electrical health.

Key Features

• RGB LED Illumination: Default white illumination enhances visibility in any lighting condition.
• Waterproof & Fog Proof: Durable construction ensures reliable performance in harsh marine environments.
• Included Wire Harness: Simplifies installation with all necessary wiring provided.
• Molex MX 150 8 Pin Connector: Ensures a secure and stable connection.
• Wide Voltage Range: Compatible with 12-24V systems, making it versatile for various marine applications.
• Spin-Lok™ Mounting Hardware: Provides secure and easy mounting on your dashboard.
• Dual Input Capability: Switch between analog and J1939 CAN inputs as needed.

Technical Specifications

Parameter	Specification
Voltage - Input Range	12-24V
Series	SingleViu
Gauge Type	Voltmeter/Ammeter
Gauge Size	52mm (2-1/16")
Box Set	No
Box Dimensions	4"H x 4"W x 6"L
Weight	0.45 lbs
UPC	4103590683595

Installation & Usage

Installing the SingleViu 52mm Voltmeter is straightforward, thanks to the included wire harness and Spin-Lok™ mounting hardware. Whether you're upgrading your boat's existing dashboard or integrating new systems, the dual-input capability ensures compatibility with both analog and digital networks.

Additional Resources

For detailed installation instructions and operational guidelines, please refer to the Owner's Manual (PDF).

Note: This product is sold individually.
