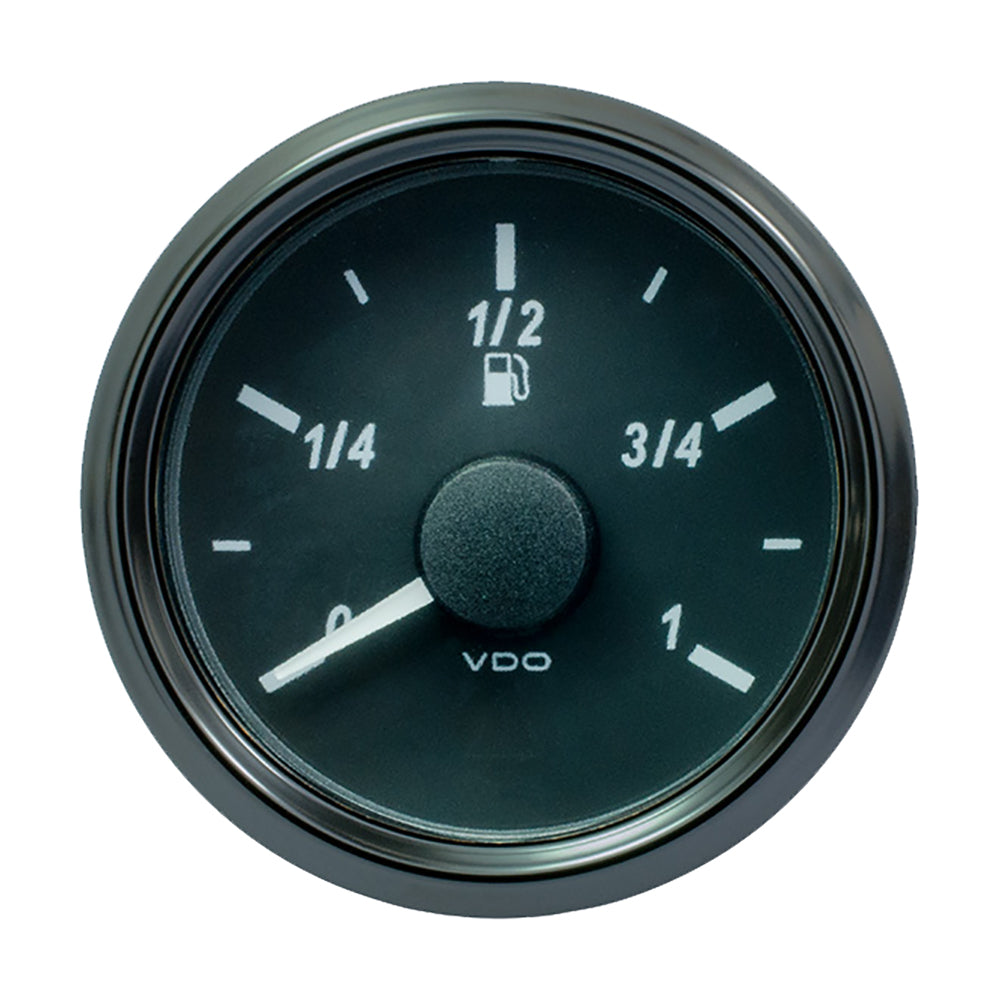

VDO SingleViu 52mm (2-1/16") Fuel Level Gauge - Euro - 3-180 Ohm

Upgrade your boat's instrumentation with the SingleViu 52mm (2-1/16") Fuel Level Gauge, engineered for precision and compatibility in marine environments. Perfectly suited for both traditional analog senders and advanced J1939 CAN networks, this gauge ensures accurate fuel monitoring to keep your vessel running smoothly.

Advanced Connectivity

The SingleViu fuel level gauge features an integrated microprocessor that allows seamless switching between analog inputs and J1939 CAN network connections. Utilizing the SingleViu Configuration software, you can effortlessly transition from the default 0-180 Ω analog input to the versatile J1939 CAN interface. Additionally, the gauge can display J1939 system fault codes, providing comprehensive diagnostic information at a glance.

Durable and Reliable Construction

Designed for the harsh conditions of marine environments, the SingleViu 52mm Fuel Level Gauge boasts a waterproof and fog proof construction. The robust build ensures longevity and consistent performance, whether you're navigating rough seas or anchored in calm waters.

Customizable Illumination and Precision

Illuminate your engine room with RGB LED lighting, customizable to match your boat’s aesthetic. The advanced stepper motors provide smooth and precise needle movements, offering an accurate and visually appealing fuel level display.

Key Features

• Dual-Input Capability: Switch between 0-180 Ω analog input and J1939 CAN network
• RGB LED Illumination: Default set to white, customizable via software
• Water Resistant: Front and rear panels sealed against moisture and fog
• Included Wire Harness: Easy installation with provided harness
• Wide Voltage Range: Operates on 12-24V systems
• Molex MX 150 8 Pin Connector: Reliable and secure connection
• Spin-Lok™ Mounting Hardware: Ensures a stable and secure installation
• Analog Input Support: Compatible with traditional analog senders

Specifications

Gauge Size	52mm (2-1/16")
Voltage Input Range	12-24V
Series	SingleViu
Gauge Type	Fuel Level
Box Set	No
Box Dimensions	4"H x 5"W x 6"L
Weight	0.3 lbs
UPC	4103590682963

Installation and Setup

Installing the SingleViu Fuel Level Gauge is straightforward with the included wire harness and Spin-Lok™ mounting hardware. Use the SingleViu Configuration software to switch between analog and J1939 CAN inputs, and customize the RGB LED illumination to fit your vessel’s design.

Additional Resources

Owner's Manual (PDF)

WARNING: This product can expose you to chemicals including LEAD, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit P65Warnings.ca.gov.

*Note: 3 - 180 Ohm sender required. Sold individually.
