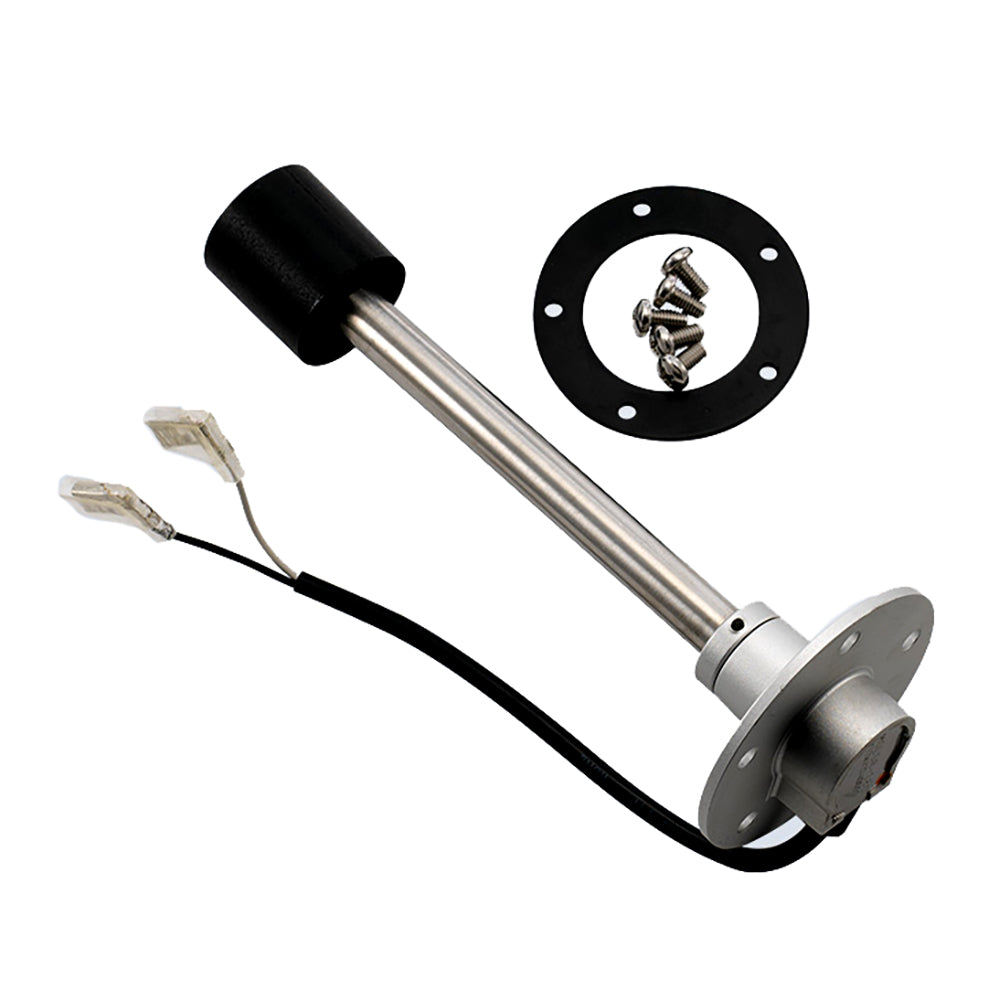

VDO Reed Switch Fuel Sender - 800 MM

Upgrade your marine fuel system with the Reed Switch Fuel Sender - 800 MM, a reliable and innovative solution designed to provide accurate fuel level measurements without the complications of traditional float-based senders. Perfect for boating enthusiasts seeking durability and precision, this advanced fuel sender ensures consistent gauge readings and minimal maintenance, even in the most demanding marine environments.

Why Choose the Reed Switch Fuel Sender?

The Reed Switch Fuel Sender revolutionizes fuel level measurement by eliminating the traditional rotating float arm. This floatless design minimizes erratic gauge pointer movements caused by fuel slosh and ensures a stable and precise reading every time. Ideal for tight tank installations, the tubular construction provides exceptional durability and reduces clearance issues.

Key Features

• Stainless Steel Construction: Ensures longevity and resistance to corrosion in marine environments.
• Ethanol Resistant Viton Gasket: Provides a secure, leak-proof seal even with ethanol-blended fuels.
• Wide Resistance Range: 240-33 Ohm range for compatibility with various marine fuel gauges.
• 800 MM Tank Compatibility: Fits fuel tanks with a depth of up to 31.5" (800mm), perfect for most marine applications.
• Insulated Spade Connectors: 1/4" spade connectors protect against moisture and corrosion.
• Standard SAE 5-Hole Mounting Flange: Easy installation with aftermarket standard mounting.
• Universal Compatibility: Works seamlessly with most standard marine fuel gauges.
• Ground - Floating: Enhances signal stability for accurate readings.

Technical Specifications

Feature	Description
Material	Stainless Steel
Gasket	Ethanol Resistant Viton
Resistance Range	240-33 Ohm
Tank Depth Compatibility	31.5" (800mm)
Connector Type	Insulated 1/4" Spade
Mounting Flange	Standard 5-Hole SAE
Compatibility	Most Standard Marine Fuel Gauges
Specification	Ground - Floating

Product Information

• Color: Silver
• Box Dimensions: 3"H x 3"W x 36"L
• Weight: 1.2 lbs
• UPC: 754059064482

Sold individually.
