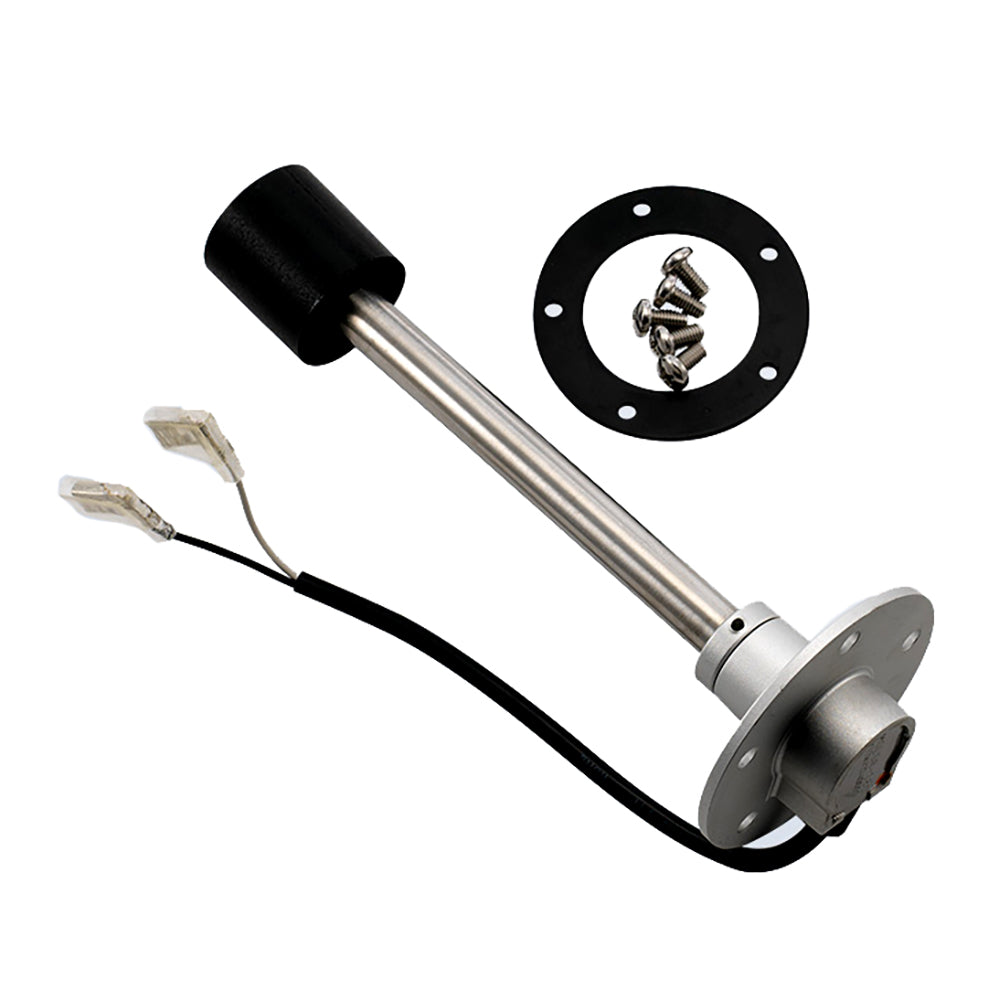

VDO Reed Switch Fuel Sender - 660 MM

The Reed Switch Fuel Sender - 660 MM is a premium marine fuel sender designed to deliver precise and reliable fuel level measurements for boats and marine vessels. Its innovative floatless design eliminates the inconsistencies found in traditional float arm systems, ensuring smooth gauge readings even in choppy waters.

Product Overview

Engineered specifically for marine applications, the Reed Switch Fuel Sender features a tubular design that acts as a dampener, minimizing gauge pointer fluctuations caused by fuel movement or tank vibrations. This compact and robust sender is ideal for installations where space is limited, providing a dependable solution without compromising tank clearance.

Advantages of the Reed Switch Fuel Sender

Unlike conventional fuel senders that utilize rotating float arms and resistance cards, the Reed Switch Fuel Sender offers several key benefits:

• Enhanced Stability: The floatless design ensures no side-to-side motion, resulting in steady and accurate gauge readings.
• Durability: With no moving parts to wear out, this fuel sender boasts a longer lifespan and requires minimal maintenance.
• Improved Accuracy: The stainless steel construction and insulated connectors provide reliable performance, reducing erratic pointer movements caused by fuel slosh.
• Easy Installation: Top-mounted with a standard SAE 5-hole flange, it fits seamlessly into most marine fuel systems.

Key Features

• Stainless Steel Construction: Ensures durability and resistance to corrosion in harsh marine environments.
• Ethanol Resistant Viton Gasket: Provides a secure seal and withstands fuel types containing ethanol.
• 240-33 Ohm Range: Compatible with a wide range of marine fuel gauges for accurate measurements.
• Depth Compatibility: Fits fuel tanks with a depth of up to 26" (660mm), suitable for various marine vessels.
• Insulated 1/4" Spade Connectors: Offers secure and reliable electrical connections.
• Standard 5-Hole Mounting Flange: Facilitates easy installation using the common SAE standard.
• Universal Compatibility: Works with most standard marine fuel gauges, ensuring versatility.
• Ground-Floating Design: Enhances safety and reliability within marine electrical systems.
• Connection Type: Features insulated .25" spade connectors for protected and stable connections.

Specifications

Color	Silver
Box Dimensions	3"H x 3"W x 27"L
Weight	1 lbs
UPC	754059064475

Installation

The Reed Switch Fuel Sender is designed for straightforward installation in marine fuel tanks. It is top-mounted and utilizes the aftermarket standard SAE 5-hole mounting flange. The package includes a neoprene gasket and all necessary mounting hardware, ensuring a secure and leak-free fit. Whether upgrading your existing system or installing a new fuel sender, the Reed Switch Fuel Sender integrates seamlessly with minimal effort.

Compatibility

Compatible with most standard marine fuel gauges, the Reed Switch Fuel Sender offers versatile integration for various boats and marine applications. Its insulated spade connectors and ground-floating design ensure reliable performance, making it a perfect match for both recreational and commercial marine fuel systems.

Safety Information

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Note: Sold as an individual unit.
