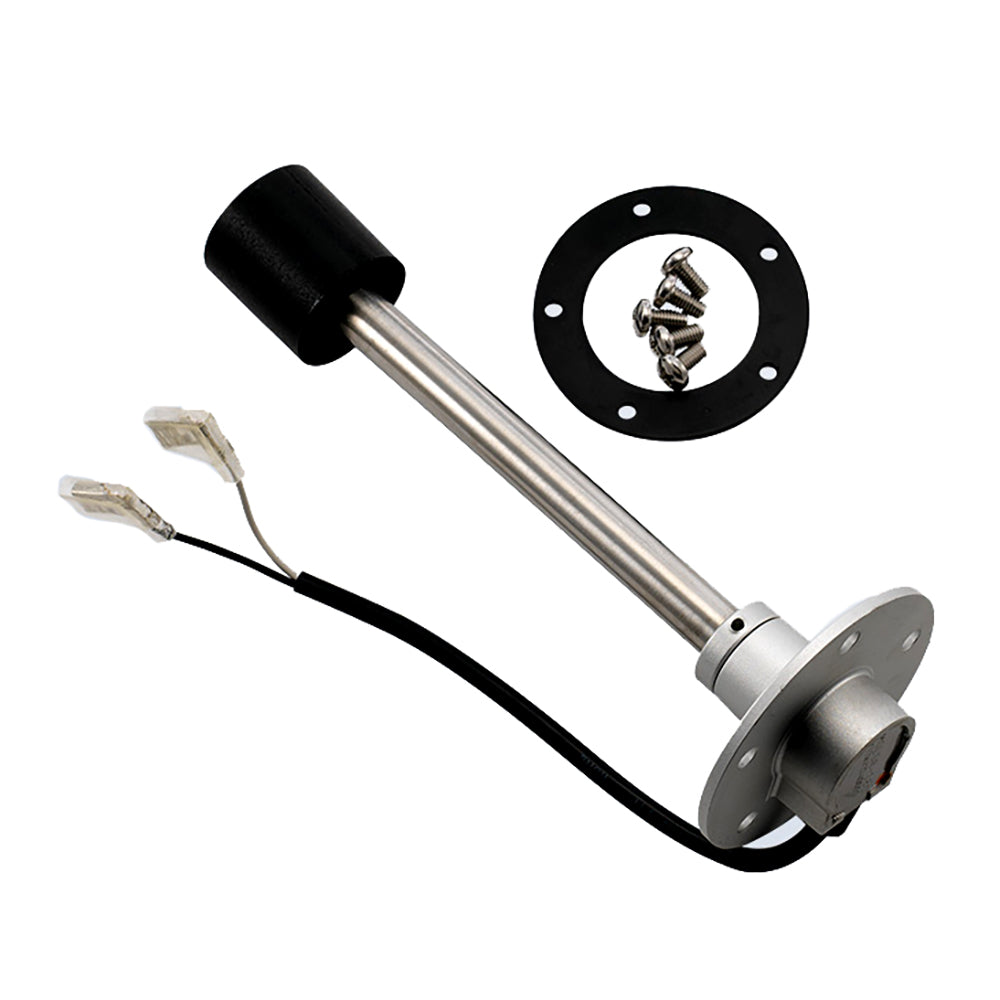

VDO Reed Switch Fuel Sender - 180mm

Enhance the accuracy and reliability of your vessel's fuel monitoring system with the Reed Switch Fuel Sender - 180mm. Designed specifically for marine applications, this advanced fuel sender ensures stable and precise readings, even in turbulent waters.

Innovative Floatless Design

Traditional fuel senders often rely on a rotating float arm and resistance cards, which can cause erratic gauge movements due to fuel slosh. The Reed Switch Fuel Sender eliminates these issues with its unique floatless design, featuring a tubular structure that acts as a dampener. This ensures smooth and consistent gauge readings without the side-to-side motion, making it perfect for tight spaces where conventional swing arms can't be accommodated.

Durable Construction for Marine Environments

Built to withstand the harsh conditions of marine settings, this fuel sender is constructed from high-quality stainless steel, offering exceptional resistance to corrosion and wear. The ethanol-resistant Viton gasket ensures a tight seal, preventing leaks and maintaining system integrity over time.

Easy Installation and Compatibility

The Reed Switch Fuel Sender is top-mounted and utilizes the standard SAE 5-hole mounting flange, making it compatible with most aftermarket fuel tanks and gauges. It includes all necessary mounting hardware and a neoprene gasket for a secure and hassle-free installation process.

Key Features

• Stainless steel construction for enhanced durability
• Ethanol-resistant Viton gasket to prevent leaks and corrosion
• 240-33 Ohm range for accurate fuel level measurement
• Fits tanks with a depth of 7.2" (180mm), ideal for compact marine tanks
• Insulated 1/4" spade connectors for reliable electrical connections
• Standard 5-hole mounting flange for easy installation
• Compatible with most standard marine fuel gauges
• Grounding option available with floating ground design
• Insulated .25" spade connection for secure wiring

*Sold individually

Specifications

Attribute	Details
Color	Silver
Box Dimensions	3"H x 3"W x 10"L
Weight	0.5 lbs
UPC	754059064369
