VDO ALAS Adjustable Fuel Sender - 6-3/4 to 23" - 10-184 Ohm

The ALAS Adjustable Fuel Sender by VDO is a premium solution tailored for marine and boating applications. Designed to deliver precise fuel level measurements, this fuel sender ensures reliability and durability even in the most demanding marine environments.

Product Overview

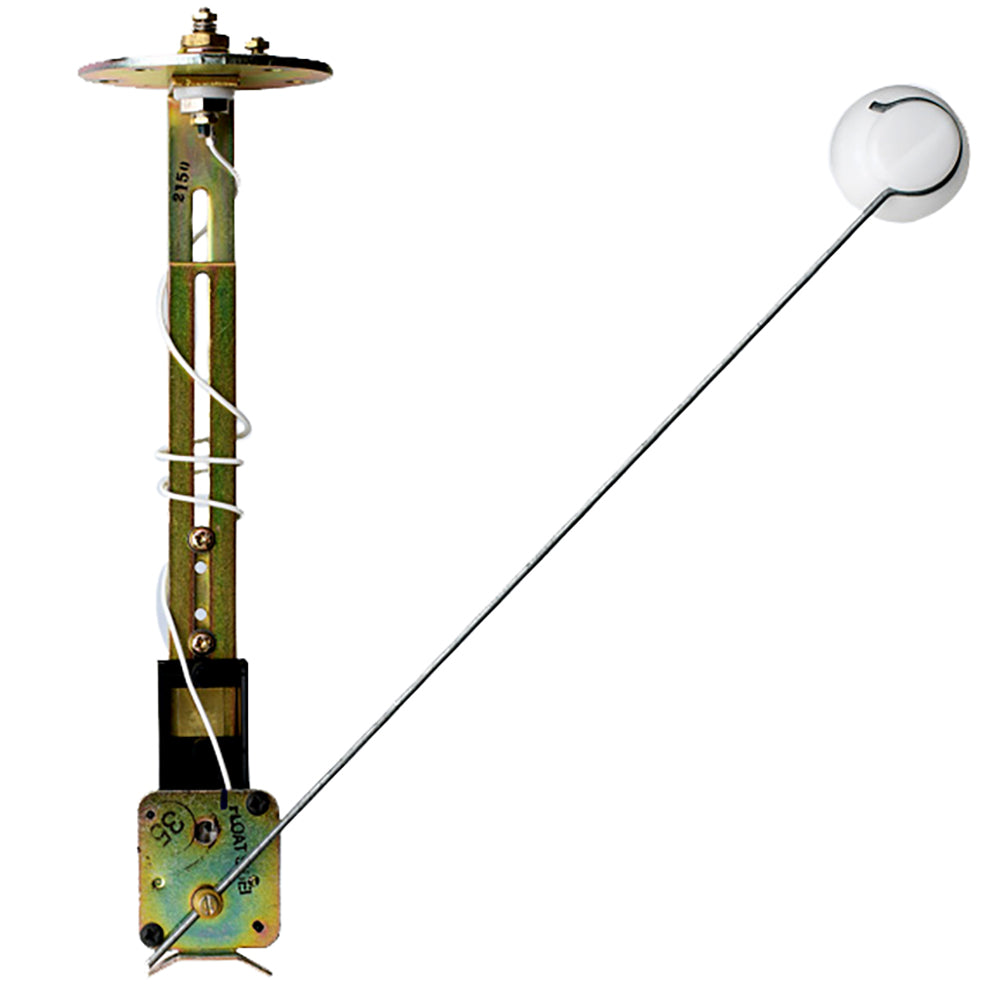

The VDO ALAS 12/24 V adjustable swingarm fuel sender is constructed with a robust plated steel body, providing excellent resistance against fuel slosh and potential damage. Its versatile adjustment range accommodates tank depths from 6 inches to 23 inches, making it ideal for a wide variety of boat fuel tanks. The sender features an SAE standard 5-hole metal mounting flange, ensuring easy installation and compatibility with both right and left-hand swingarms.

For enhanced longevity, the wiper and thick film resistor are shielded from fuel splashes, and the float arm stops maintain consistent contact between the wiper and resistor board regardless of the fuel level. This design guarantees accurate fuel readings whether your tank is full or nearing empty.

Key Features

• Adjustable Tank Depth: Easily configurable from 6 inches to 23 inches to fit various marine fuel tank sizes.
• Durable Construction: Plated steel main body resists damage from fuel slosh and harsh marine conditions.
• Flexible Mounting: SAE standard 5-hole metal mounting flange supports both right and left-hand swingarm installations.
• Shielded Components: Wiper and thick film resistor are protected from fuel splashes for extended product life.
• Consistent Contact: Float arm stops ensure reliable contact between the wiper and resistor board at all fuel levels.
• Secure Connection: M4 stud connection provides a stable and secure wiring interface.
• Wide Voltage Range: Compatible with 6V to 24V marine electrical systems.

Technical Specifications

Color	Gold
Box Dimensions	4"H x 4"W x 19"L
Weight	1.3 lbs
UPC	754059001036
Voltage	6-24V
Connection Type	M4 Stud

*Sold individually.
