UFlex Power A Electronic Control Package - Single Engine/Dual Station - Mechanical Throttle/Mechanical Shift

The Power A MM12 Electronic Control Package is a versatile and advanced system designed for single engine or dual station marine applications. With mechanical throttle and shift capabilities, it offers reliable control and seamless integration with your vessel's existing systems, enhancing both performance and ease of use.

Features

• Private Protocol CAN bus for efficient data transmission
• Supports connection of up to 4 control stations
• Modular system for customizable configurations
• Direct communication with electronic engines (SAE J 1939 or NMEA 2000)
• Plug 'N Play connectivity for easy installation
• Automatic engine synchronization for optimal performance
• Integrated Dock Assist for simplified docking maneuvers
• Fully programmable shift delays to tailor operation to your needs

Compatibility

The Power A Mark II™ Electronics Control Systems are designed to work seamlessly with a wide range of marine engines and control setups, ensuring compatibility and flexibility for various boating configurations.

Package Includes

Quantity	Part Number	Description

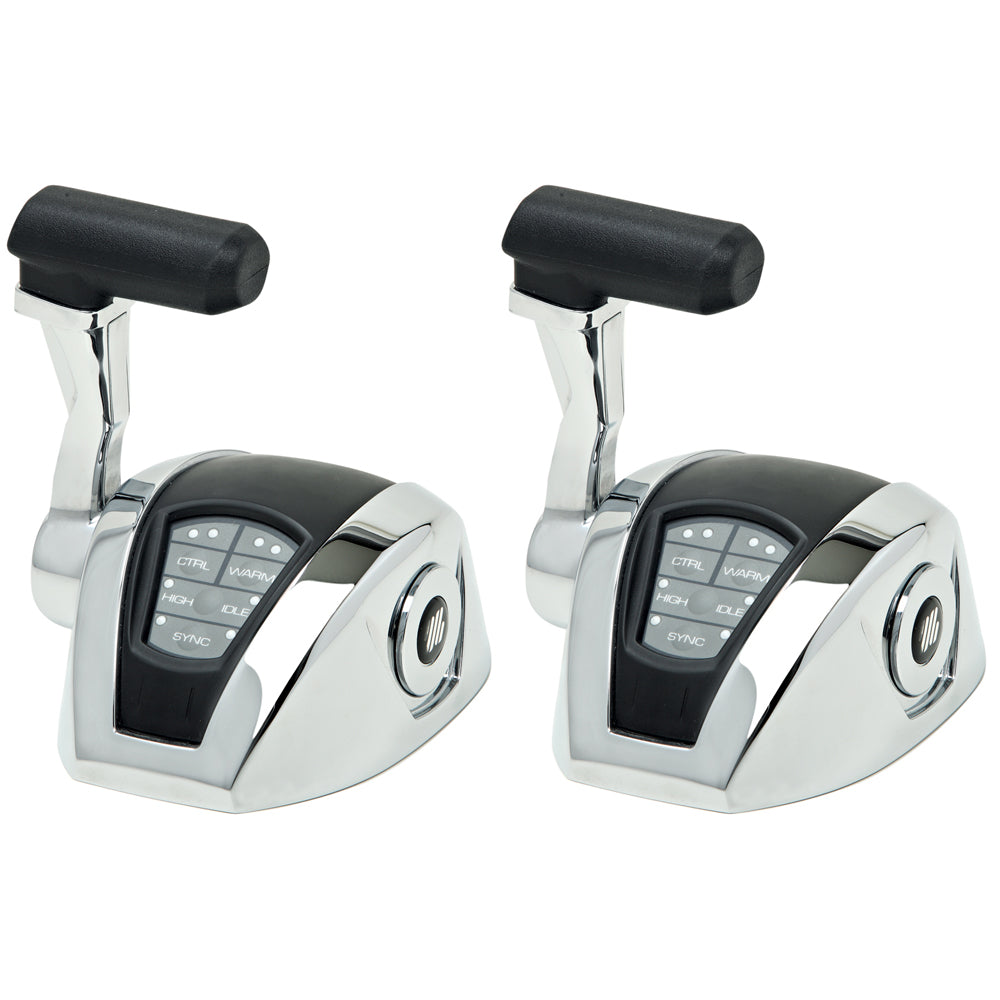

2	42009G	PA2-B1 - Single Lever Control without Trim
1	42017F	PA2-CU - Control Unit with LED Diagnostic & Programming Screen
2	42027J	PA2-MA - Electro Mechanical Actuator for Shift and/or Throttle
1	42028L	PA2-NT - Network Terminator
1	42053K	M-P3 - Main Power Supply Cable, 9.8'
2	71021K	CAN-10 - Network Connection Cable 33'
2	73639T	CAN-1 - Network Connection Cable 3'
1	42026G	PA2-PU - Power Supply Unit for 12V Systems
2	42056S	M-PE1 - Power Extension Cable 3.3'

Resources

• Quick Guide (PDF)
• Brochure (PDF)
