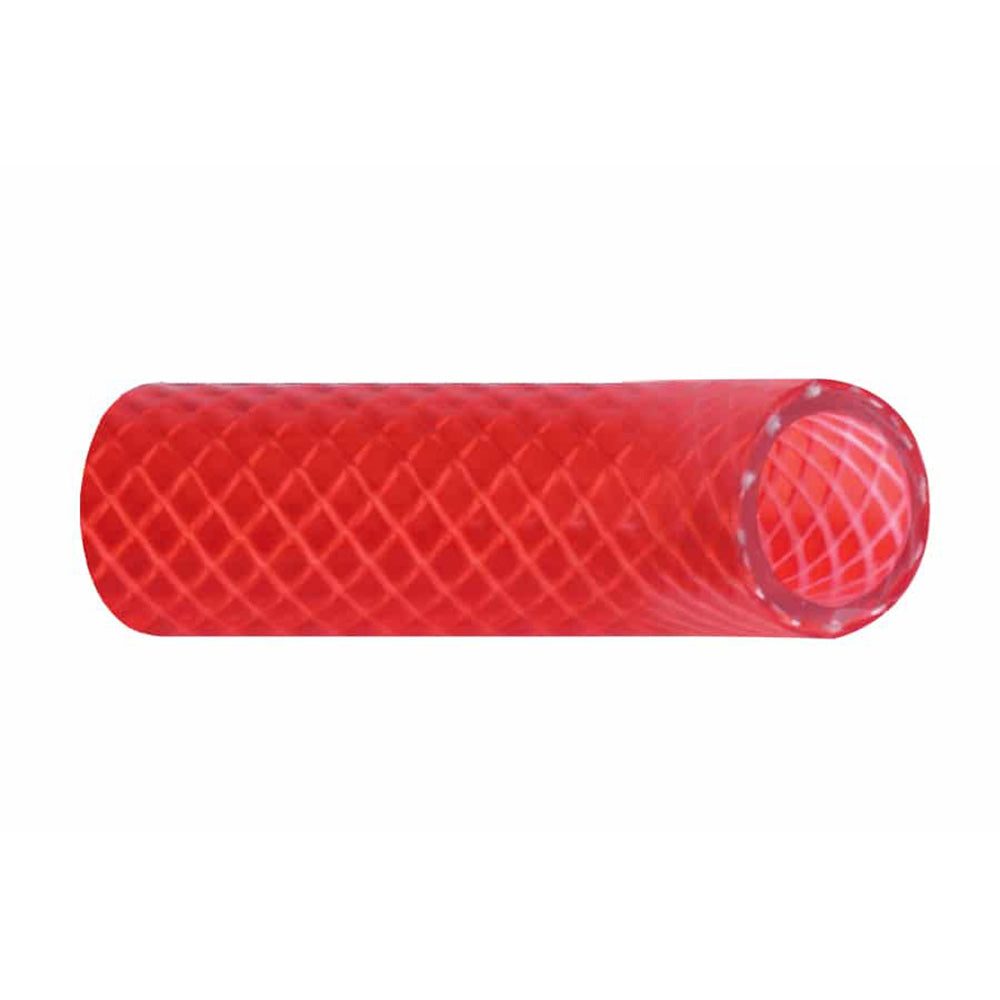

Trident Marine 5/8" x 50 Boxed Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red

Upgrade your marine plumbing system with the Trident 166 Series Red Boxed Reinforced PVC Hose, designed to deliver dependable hot water supply on your boat or yacht. Built with FDA-approved, non-toxic materials, this hose ensures safe and efficient water flow, making it the perfect choice for marine enthusiasts who prioritize quality and safety.

Key Features

• Color-Coded for Marine Applications: The distinctive red translucent cover facilitates easy identification of hot water lines, enhancing organization and safety on board.
• Superior Durability: Featuring a 3-ply polyester reinforced PVC construction, this hose offers exceptional abrasion resistance and maintains flexibility in various marine conditions.
• Drinking Water Safe: Compliant with FDA standards, the hose ensures that the water transported remains pure, without any unwanted tastes or smells.
• High-Temperature Resistance: Capable of handling temperatures up to 149ºF (65ºC), making it suitable for demanding hot water applications.
• High-Pressure Capacity: Designed to withstand pressures up to 250 psi (dependent on inner diameter), ensuring reliable performance under high-pressure conditions.

Ideal Marine Applications

• Hot water feed systems for marine kitchens and galley areas
• Pressurized hot water supply for onboard showers and sinks
• Drainage and venting lines for efficient water management
• Other high-temperature, high-pressure water applications on boats and yachts

Product Construction

• Tube & Cover: Made from clear, FDA-grade PVC tubing for visibility and safety
• Color: Translucent Red cover for easy line identification
• Reinforcement: 3-ply polyester for enhanced strength and longevity
• Temperature Range: Operates efficiently between -18°F to 149°F (-28°C to 65°C)
• Length: 50 feet (15.24 meters) provides ample reach for various installations

Technical Specifications

Specification	Details
Inner Diameter	5/8" (15.9 mm)
Outer Diameter	0.866" (22.5 mm)
Working Pressure	230 PSI / 16 bar
Bend Radius	1.26" (32 mm)
Burst Pressure	920 PSI (4 x Working Pressure)

Product Dimensions and Details

• Length: 50 feet
• Box Dimensions: 5" H x 18" W x 18" L
• Weight: 9.4 lbs
• UPC: 704917024042

Additional Resources

For installation instructions and detailed usage guidelines, refer to our Quick Guide (PDF).
