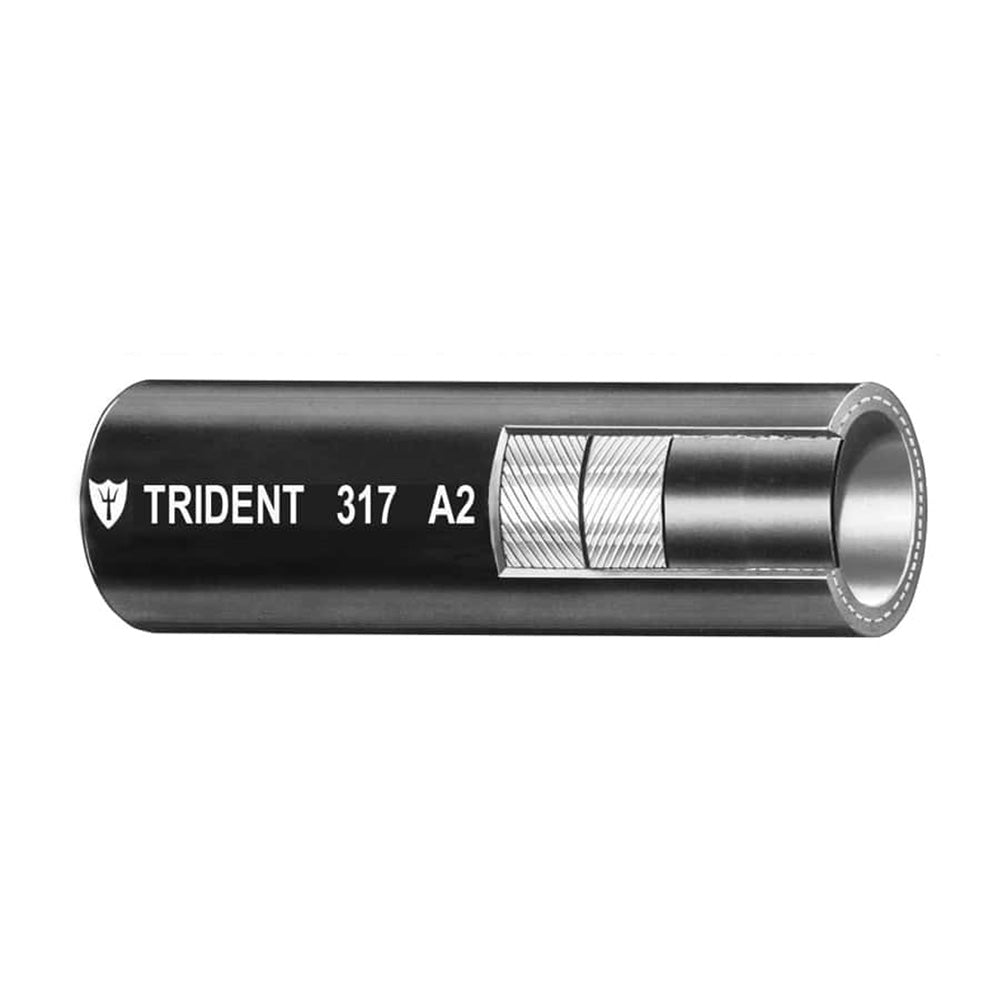

Trident Marine 5/8" Type A2 Fuel Vent Line Hose - Black - Sold by the Foot

Ensure reliable and safe fuel transfer on your marine vessel with our 5/8" Type A2 Fuel & Vent Line Hose. Engineered for use with gasoline, ethanol blends, diesel, and bio-diesel, this hose offers superior resistance to aging, fire, extreme temperatures, and environmental factors, making it an ideal choice for boating applications.

Features

• Available in custom lengths, sold by the foot
• Exceptional resistance to aging, fire, heat, cold, and ozone exposure
• Highly flexible with excellent bend-ability
• NMMA Type Accepted and CE certified for quality assurance

Applications

• Fuel venting and diesel distribution systems on boats and marine vessels
• Compatible with all marine fuels, including gasoline, alcohol blends, diesel, and bio-diesel

Construction

Component	Material
Tube	Nylon Internal Barrier, NBR
Cover	NBR/PVC Blend
Reinforcement	Polyester 2 spiral
Temperature Range	-20°F to 212°F (-28ºC to 100ºC)

Specifications

Specification	Value
Inner Diameter	5/8" (15.9 mm)
Outer Diameter	0.960" (24.4 mm)
Burst Pressure	200 psi (1.38 MPa)
Working Pressure	50 psi (0.34 MPa)
Bend Radius	3" (76.2 mm)
Weight	25.84 lb/100 ft (11.72 kg/m)

Certifications

The #317 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, and USCG Type A2 standards, ensuring top-notch quality and compliance for marine fuel systems.

Resources

Download our Quick Guide (PDF)
