Trident Marine 5/16" Low Permeation Type A1-15 Fuel Line Hose - Black - Sold by the Foot

Upgrade your marine fueling system with our premium 5/16" Low Permeation Type A1-15 Fuel Line Hose. Designed specifically for boating enthusiasts, this durable hose ensures safe and efficient fuel transfer for both gasoline and diesel engines, including ethanol and biodiesel blends. Its superior construction guarantees longevity and reliability even in the harshest marine environments.

Key Features

• Sold by the foot for customizable lengths to suit your specific needs
• Exceptional resistance to fuel permeation, aging, fire, heat, cold, and ozone
• Outstanding bend-ability for easy installation in tight spaces
• NMMA Type Accepted and CE certified for top-tier quality and safety standards

Ideal Applications

• Marine Fuel Hose for distribution, return, venting, and fuel transfer systems
• Compatible with all marine fuels, including gasoline, alcohol blends (up to CE-10), diesel, and biodiesel

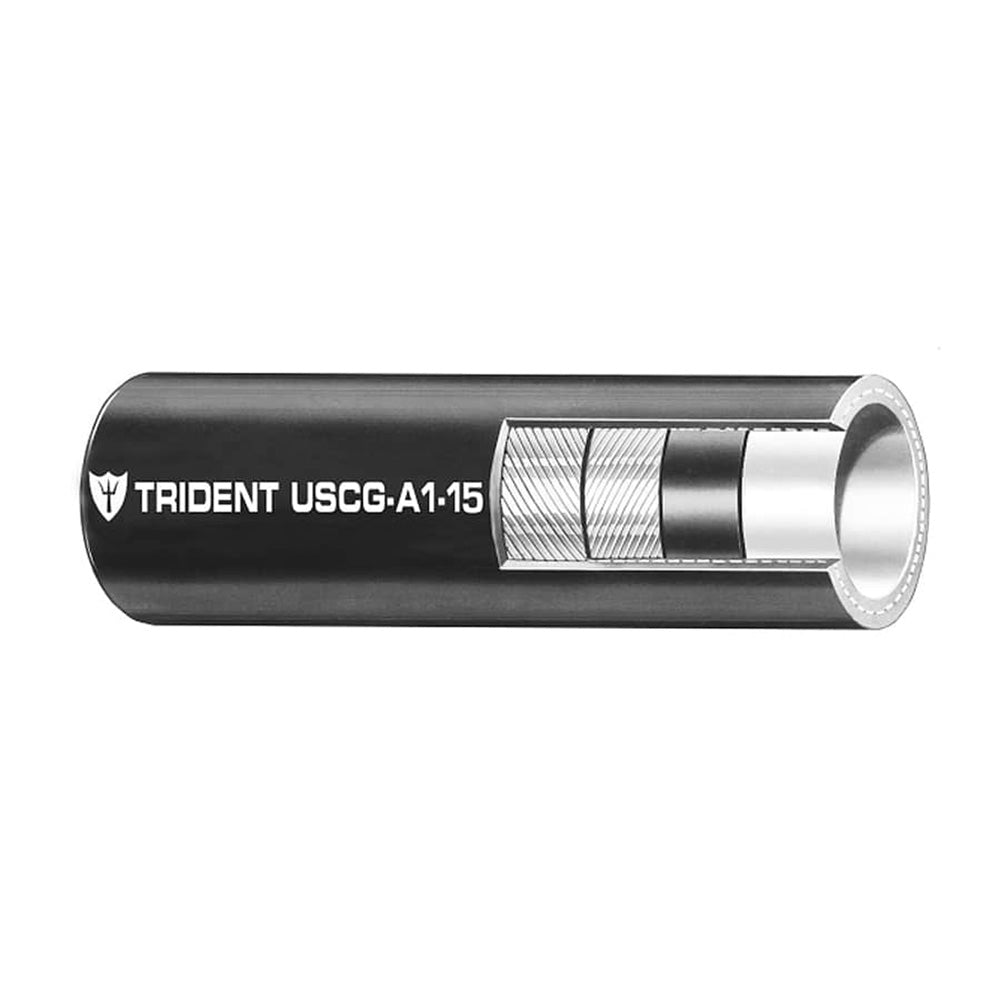

Construction Details

• Tube: Nylon Internal Barrier combined with NBR for optimal fuel resistance
• Cover: NBR/PVC Blend offering enhanced protection against environmental factors
• Reinforcement: Dual polyester spirals ensuring maximum strength and durability
• Temperature Range: -20°F to 212°F (-28ºC to 100ºC) suitable for various climates

Technical Specifications

Specification	Value
Inner Diameter	5/16" (7.92 mm)
Outer Diameter	0.611" (15.5 mm)
Burst Pressure	400 psi (2.76 MPa)
Working Pressure	100 psi (0.69 MPa)
Bend Radius	1.75" (44.5 mm)
Weight	13.3 lb/100 ft. (0.198 kg/m)
Permeation Rate	<10 g/m²/24 hrs (CE10)

Certifications and Compliance

This hose exceeds industry standards, including ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15, CARB Executive Order RM-17-008, and EPA Certified low permeation Type A1-10. Trust in a product that meets rigorous quality and safety benchmarks for your marine applications.

*The #365 series surpasses ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and EPA Certified low permeation Type A1-10 standards.
