Trident Marine 5/16" Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose - Gray - Sold by the Foot

The 5/16" Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose in gray is specifically engineered for marine applications, ensuring safe and efficient fuel transport on your vessel. Sold by the foot, this high-performance hose offers superior resistance to fuel permeation, aging, and environmental factors, making it an essential component for any boat owner.

Key Features

• Available for purchase by the foot, allowing for customizable lengths to fit your specific needs
• Exceptional resistance to fuel permeation, aging, heat, cold, and ozone, ensuring long-lasting performance
• Excellent rope-like bend-ability and fitting retention for easy installation and durability
• Compatible with both gasoline (including ethanol blends up to E85) and diesel (including biodiesel blends up to 100%)
• EPA Certified and CARB Executive Order compliant for low permeation Type B1-15
• NMMA Type Accepted and CE certified, meeting stringent industry standards

Applications

• Marine fuel hose for distribution, return, vent, and transfer applications
• Suitable for all marine fuels, including gasoline, alcohol blends (CE-10), diesel, and biodiesel

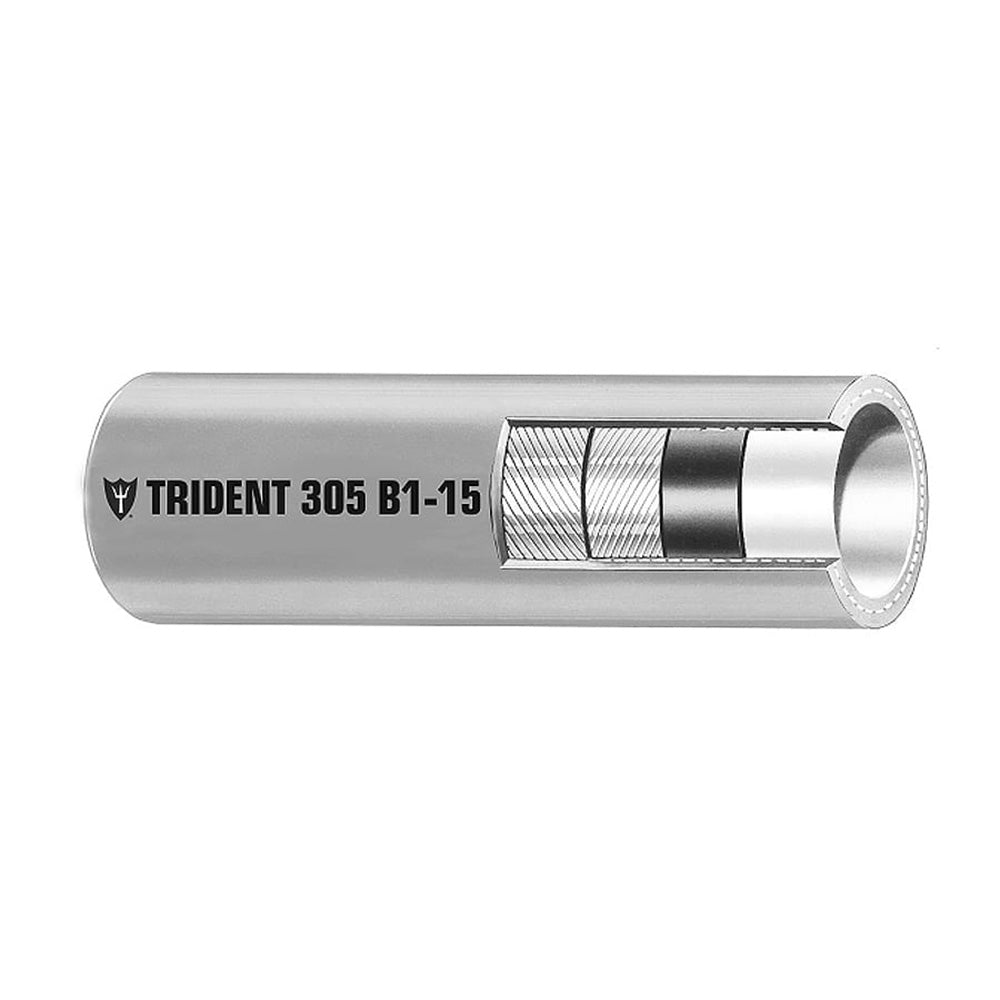

Construction

• Tube: Fluoroplastic Internal Barrier
• Cover: Gray CPE Rubber for added protection and durability
• Reinforcement: 2-Spiral Polyester Plies provide strength and flexibility
• Temperature Range: -20°F to 212°F (-28ºC to 100ºC), suitable for various marine environments

Specifications

Specification	Value
Inner Diameter	5/16" (7.92 mm)
Outer Diameter	0.500" (12.7 mm)
Burst Pressure	175 psi (1.21 MPa)
Working Pressure	35 psi (0.24 MPa)
Bend Radius	2.5" (63.5 mm)
Weight	7.8 lb/100 ft. (0.116 kg/m)
Permeation Rate (Standard is 15g/m²/24hrs CE10)	5.0

The #305 series exceeds ABYC H-24, SAE J1527, ISO 8469 B1, USCG Type B1-15 standards.

Download Quick Guide (PDF)
