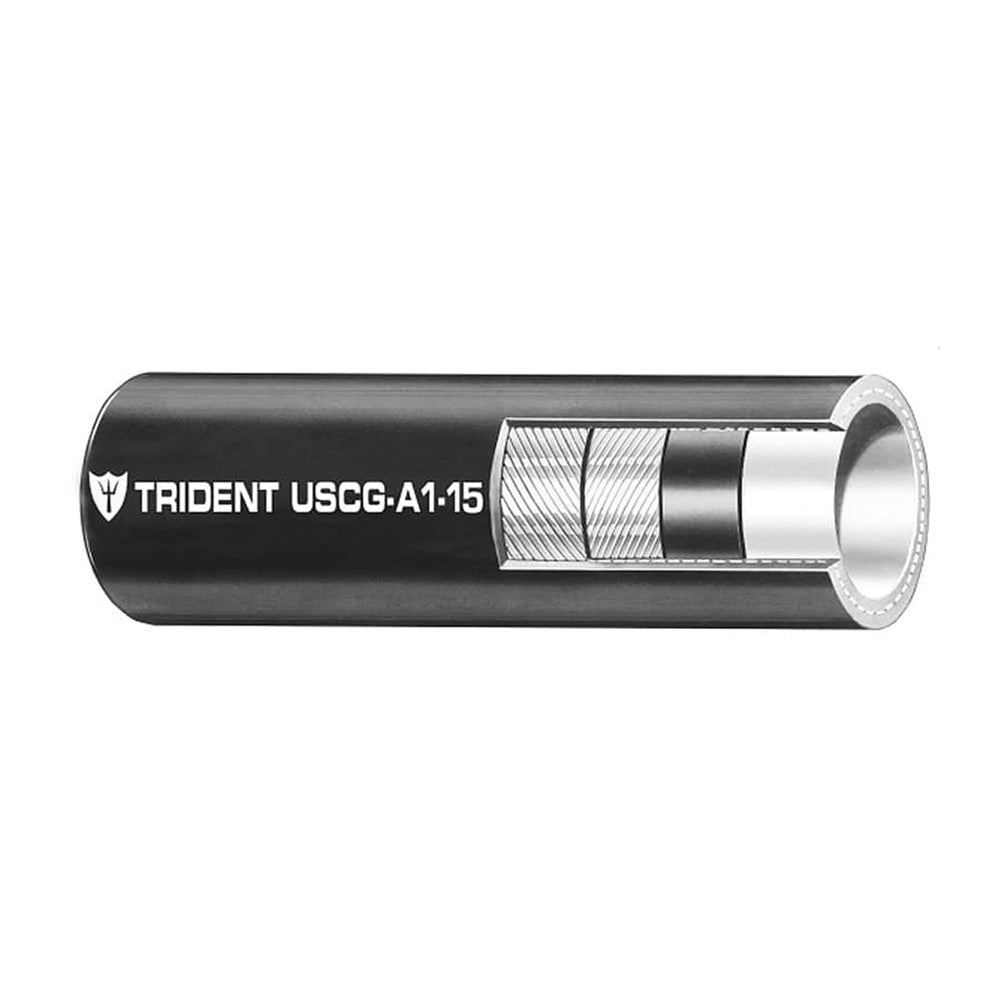

Trident Marine 5/16" A1-15 Reel Low Permeation Fuel Line Hose - Black - Sold by the Foot

Upgrade your marine fuel system with the Trident Barrier Lined A1-15 Fuel Hose, engineered for both gasoline (including ethanol blends up to 85%) and diesel (including biodiesel blends up to B100). This high-performance hose offers exceptional resistance to fuel permeation, aging, and environmental factors, ensuring reliable and safe fuel delivery for your vessel.

Key Features

• Sold by the foot for customizable lengths
• Superior resistance to fuel permeation, aging, fire, heat, cold, and ozone
• Excellent bend-ability for easy installation in tight spaces
• NMMA Type Accepted & CE certified for marine use

Optimal Applications

• Fuel distribution, return, vent, and transfer on marine vessels
• Compatible with all marine fuels including gasoline, alcohol blends (CE-10), diesel, and biodiesel

Durable Construction

• Tube: Nylon Internal Barrier with NBR for enhanced fuel compatibility
• Cover: NBR/PVC Blend providing robust protection
• Reinforcement: Two spiral polyester strands for added strength
• Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
• Length: 250 ft. reel, available for purchase by the foot

Technical Specifications

Specification	Value
Inner Diameter	5/16" / 7.92 mm
Outer Diameter	0.611" / 15.5 mm
Burst Pressure	400 psi / 2.76 MPa
Working Pressure	100 psi / 0.69 MPa
Bend Radius	1.75" / 44.5 mm
Weight	13.3 lb/100 ft. / 0.198 kg/m
Permeation Rate	<10 g/m²/24 hrs (CE10)

Compliance and Certifications

The #365 series surpasses industry standards including:

• ABYC H-24 & H-33
• SAE J1527
• ISO 7840
• USCG Type A1-15
• CARB Executive Order RM-17-008
• EPA Certified Low Permeation Type A1-10

Download the Quick Guide (PDF)
