Trident Marine 4" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps
Trident Marine 4" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps is backordered and will ship as soon as it is back in stock.
Product Description
Product Description

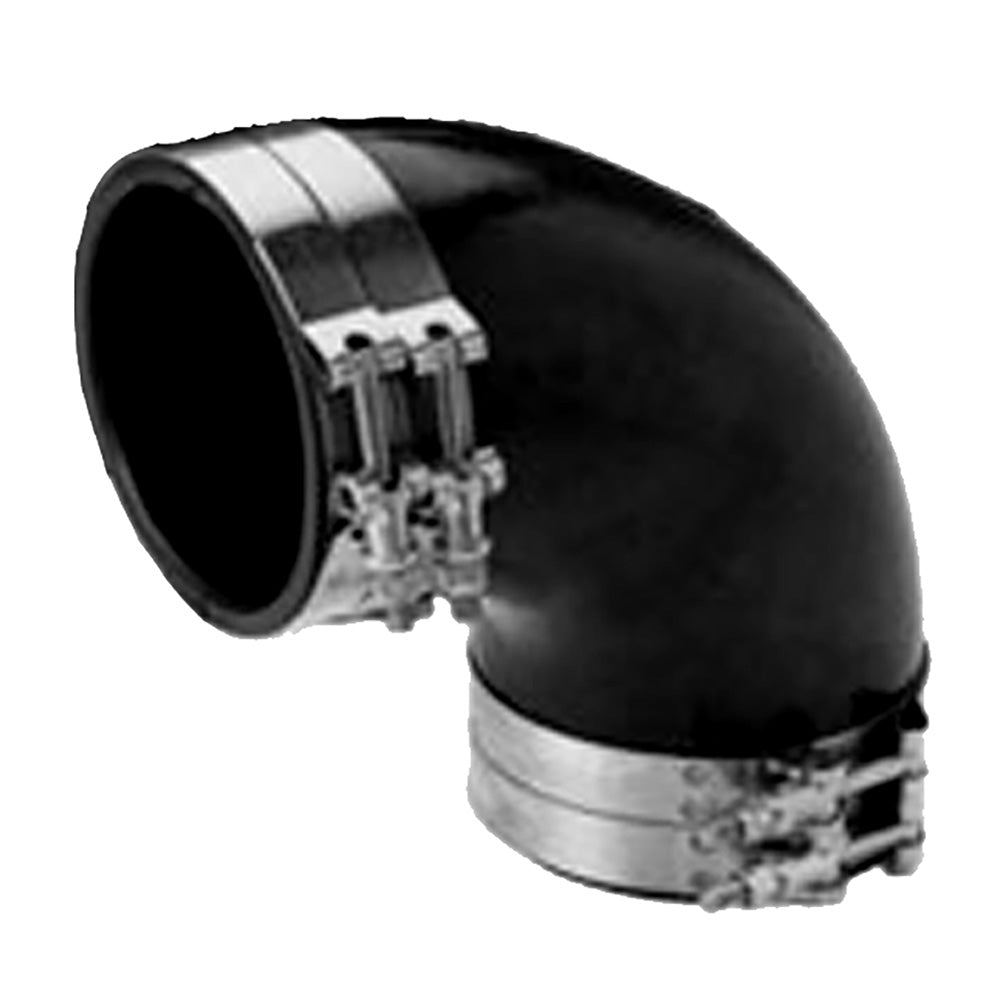

The 4" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow is a crucial component for marine and boating exhaust systems. Crafted from durable high-temperature EPDM rubber, this elbow ensures a reliable and leak-free connection, even in the harshest marine environments.
Features
- Includes four stainless steel T-Bolt clamps for secure and easy installation
- Exceptional resistance to ozone, salt water, diesel fumes, splashes, extreme cold and heat, and aging
- Meets and exceeds SAE J2006-R1, ABYC, and NMMA P-1 exhaust standards for superior performance
- Constructed from black high-temperature EPDM rubber for enhanced durability and longevity
Construction
- Color: Black
- Reinforcement: Features reinforcing ribs on elbows with a 6” inner diameter and above for added strength
- Temperature Range: Capable of withstanding temperatures up to 250°F (121°C)

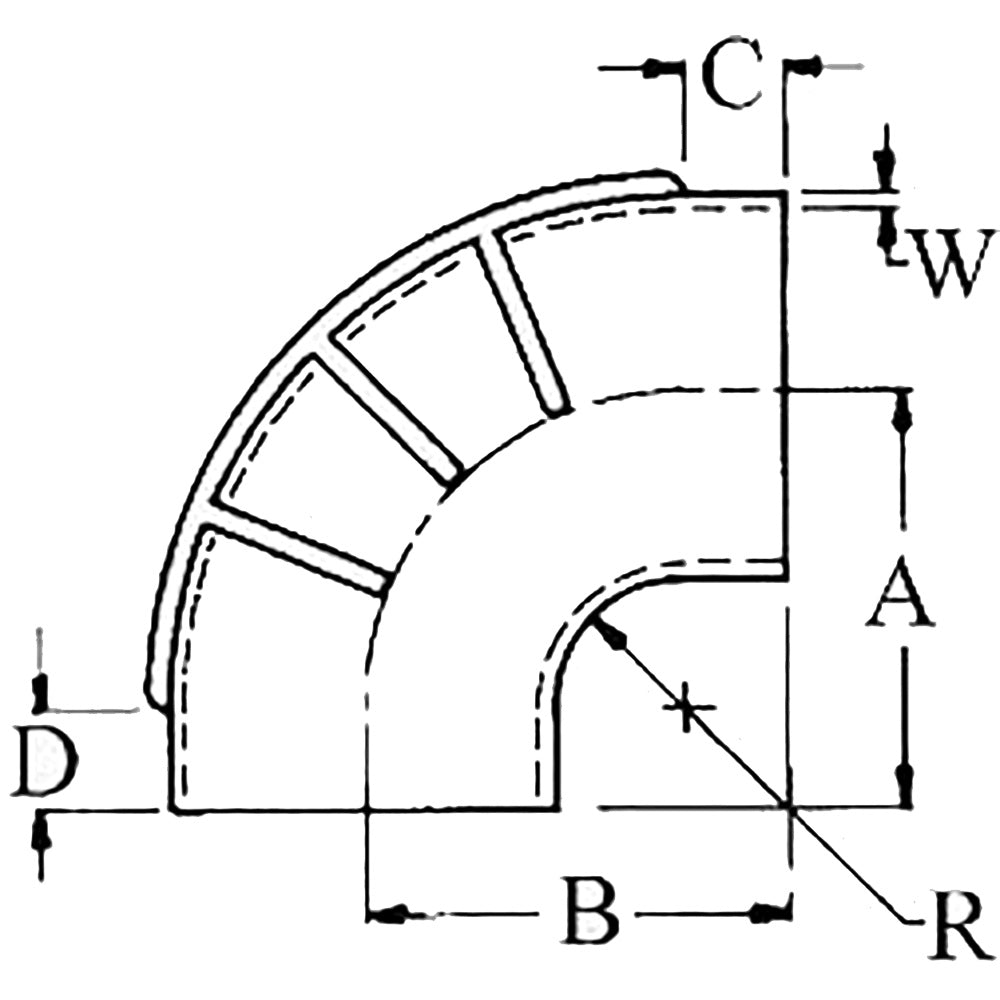

Specifications
Measurement | Imperial | Metric |
---|---|---|
Inner Diameter | 4” | 101.6 mm |
A | 5.75” | 146 mm |
B | 5.75” | 146 mm |
C | 1.75” | 44.4 mm |
D | 1.75” | 44.4 mm |
R | 2” | 50.8 mm |
W | 0.25” | 6.4 mm |
Elbow Degree | 90 degrees |
Additional Resources
For more detailed installation instructions, download the Quick Guide (PDF).
