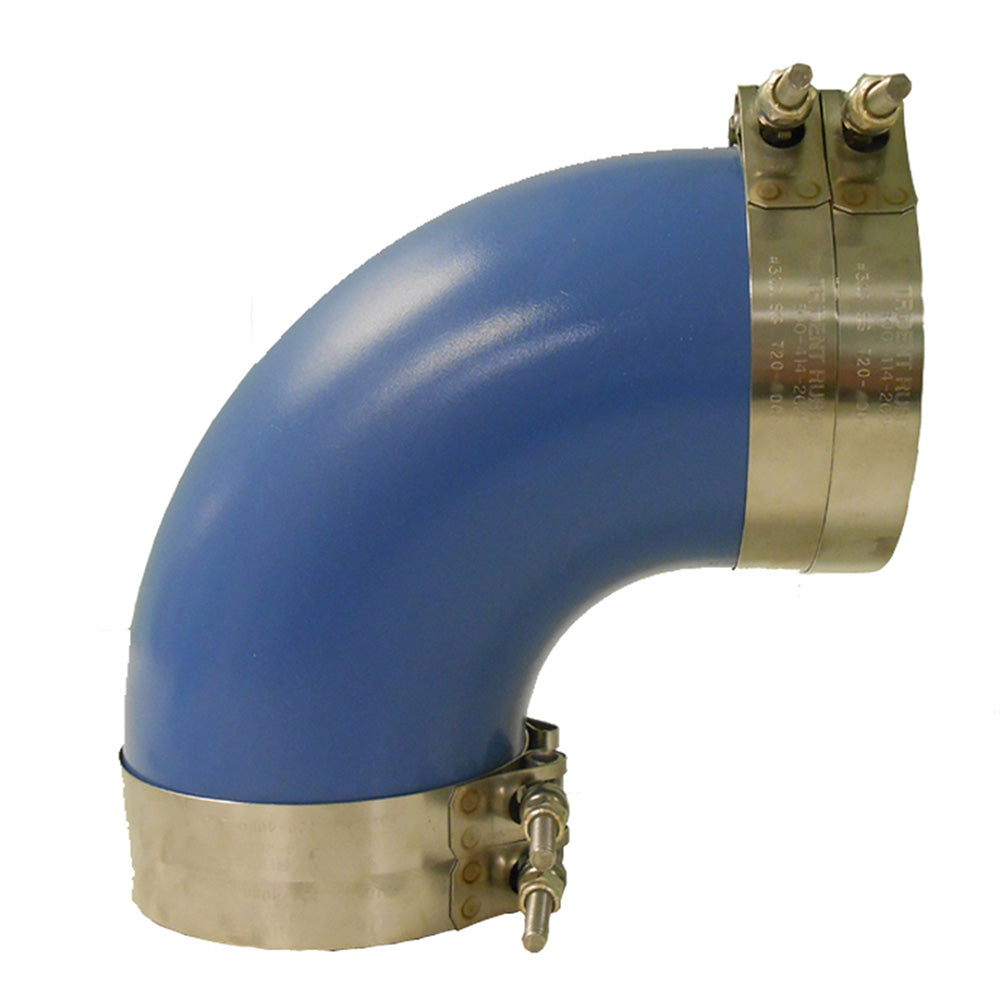

Trident Marine 4" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps
Trident Marine 4" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
Enhance your marine exhaust system with our 4" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow. Designed for durability and performance, this elbow ensures a reliable connection in even the harshest marine environments.
Premium Construction for Marine Applications
Crafted from a high-temperature silicone and EPDM rubber blend, this exhaust elbow is molded to withstand the demanding conditions of marine use. The vibrant blue color not only adds a sleek look to your vessel but also signifies its high-temperature capabilities.
Key Features
- Includes four stainless steel T-bolt clamps for secure installation
- Constructed from a very high-temperature silicone/EPDM blend rubber
- Exceptional resistance to ozone, salt water, diesel fumes, splashing, cold, heat, and aging
- Meets and exceeds SAE J2006-R1, ABYC, and NMMA P-1 exhaust standards
- Operates continuously at temperatures up to 350°F (177°C)

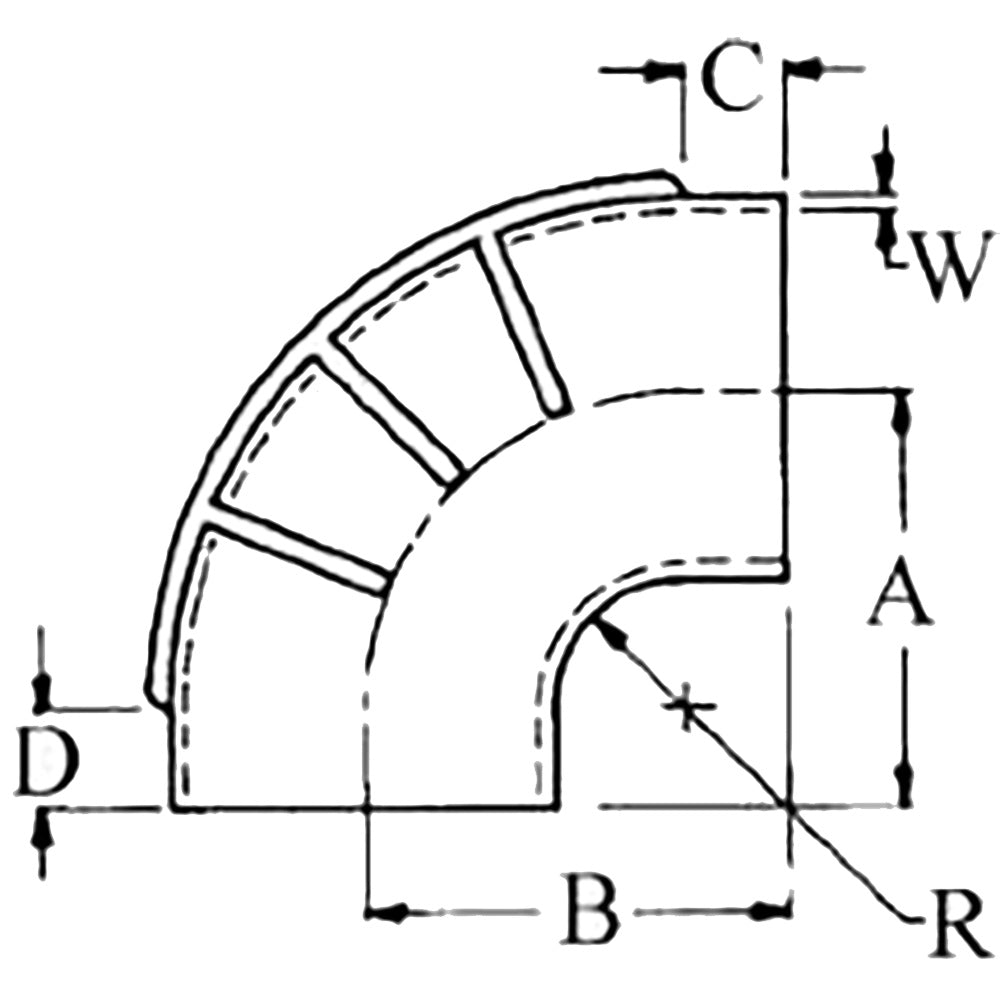

Technical Specifications
| Specification | Details |
|---|---|
| Inner Diameter | 4” (101.6 mm) |
| Dimension A | 5.75” (146 mm) |
| Dimension B | 5.75” (146 mm) |
| Dimension C | 1.75” (44.4 mm) |
| Dimension D | 1.50” (38.1 mm) |
| Radius | 2” (50.8 mm) |
| Width | 0.25” (6.4 mm) |
| Elbow Degree | 90 degrees |
Construction Details
- Color: Blue
- Temperature Range: Up to 350°F (177°C)
Installation and Maintenance
Installing the 4" ID 90-Degree Wet Exhaust Elbow is straightforward with the included stainless steel T-bolt clamps. Ensure a tight and secure fit to prevent exhaust leaks and maintain optimal engine performance. Regularly inspect the clamps and rubber connections for signs of wear or damage, especially after exposure to harsh marine conditions.
