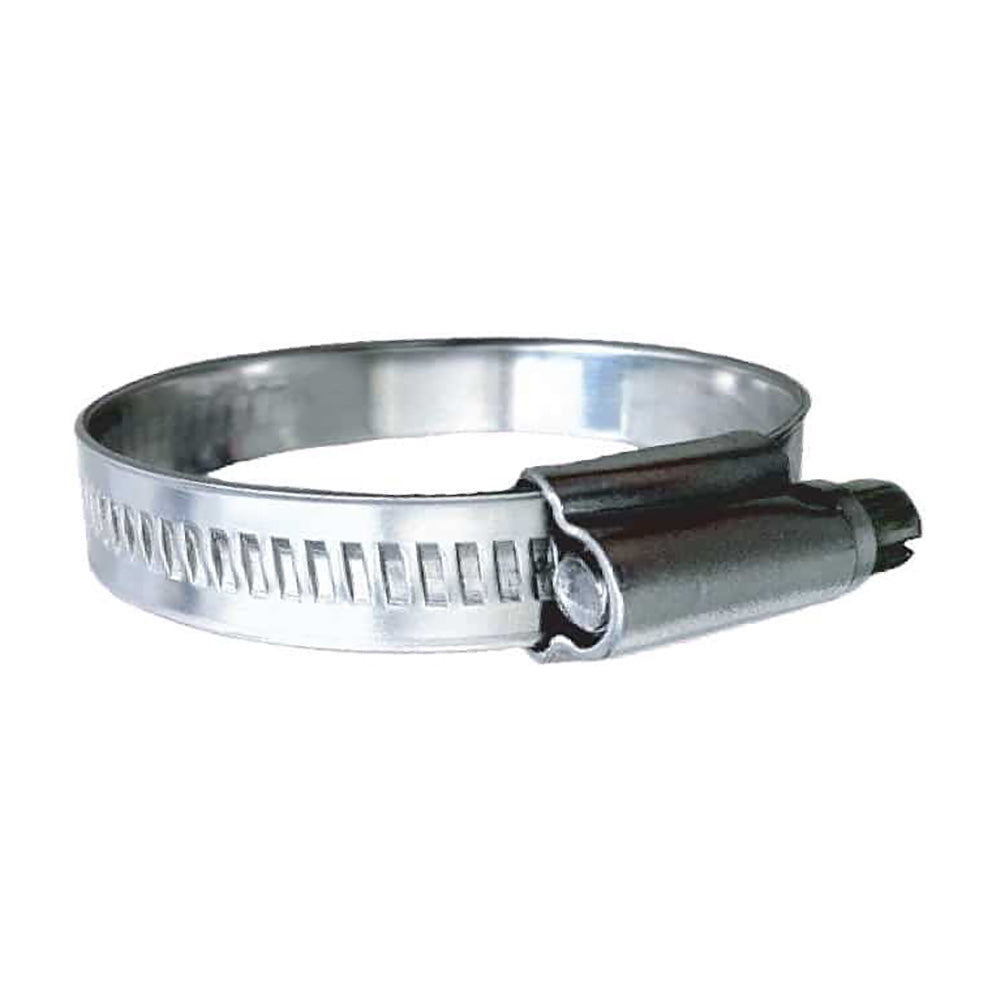

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (5/8" 15/16") Clamping Range - 10-Pack - SAE Size 8

Ensure the integrity of your marine connections with our premium 316 Stainless Steel Non-Perforated Worm Gear Hose Clamps. Designed specifically for demanding marine and boating applications, these clamps offer unmatched durability and clamping force to keep your hoses secure in harsh environments.

Product Overview

Crafted from high-grade AISI 316 stainless steel, our worm gear hose clamps are built to withstand the corrosive marine atmosphere. The non-perforated, smooth interior prevents hose damage, while the high tensile strength band ensures a reliable and robust hold. Each pack includes 10 clamps, suited for a variety of marine applications with a clamping range of 5/8" to 15/16".

Key Features

• High-Quality Material: Made from AISI 316 stainless steel for superior corrosion resistance and longevity.
• Non-Perforated Design: Smooth inner surface eliminates hose damage while providing increased clamping force.
• Robust Clamping Force: The compact, one-piece housing delivers one of the highest clamping force ratings in its class.
• Secure Fit: 11.7 mm (0.46”) wide band with rolled edges ensures a snug and damage-free fit on hoses.
• Easy Installation: Features a 7mm screw head for straightforward tightening and adjustments.

Technical Specifications

Specification	Details
SAE Size	8
Hose Inner Diameter	3/8" – 1/2" (inch)
Clamping Range	5/8" – 15/16" (inch) / 15 – 24 mm
Recommended Torque	35-45 inch lbs
Band Width	11.7 mm (0.46")
Band Thickness	0.9 mm
Screw Head Size	7.0 mm
Housing Width	16 mm (0.63")

Recommendations for Marine Use

• Accurate Sizing: Measure the outer diameter (O.D.) of your hose before selecting the clamp size to ensure a proper fit.
• Double Clamping: For critical connections, use two clamps on each hose end to enhance security.
• Alternative Options: For larger inner diameter hoses, such as exhaust hoses, consider using our #720 Series wide band 316 SS T-Bolt Clamps for additional strength.

Construction Details

• Band & Housing: Manufactured from 316 stainless steel with an 11.7 mm wide band and a 16 mm wide housing.
• Screw Drive: Features a 7.0 mm screw head made from 316 stainless steel for reliable tightening.

Additional Resources

For more information on installation and usage, please refer to our Quick Guide (PDF).
