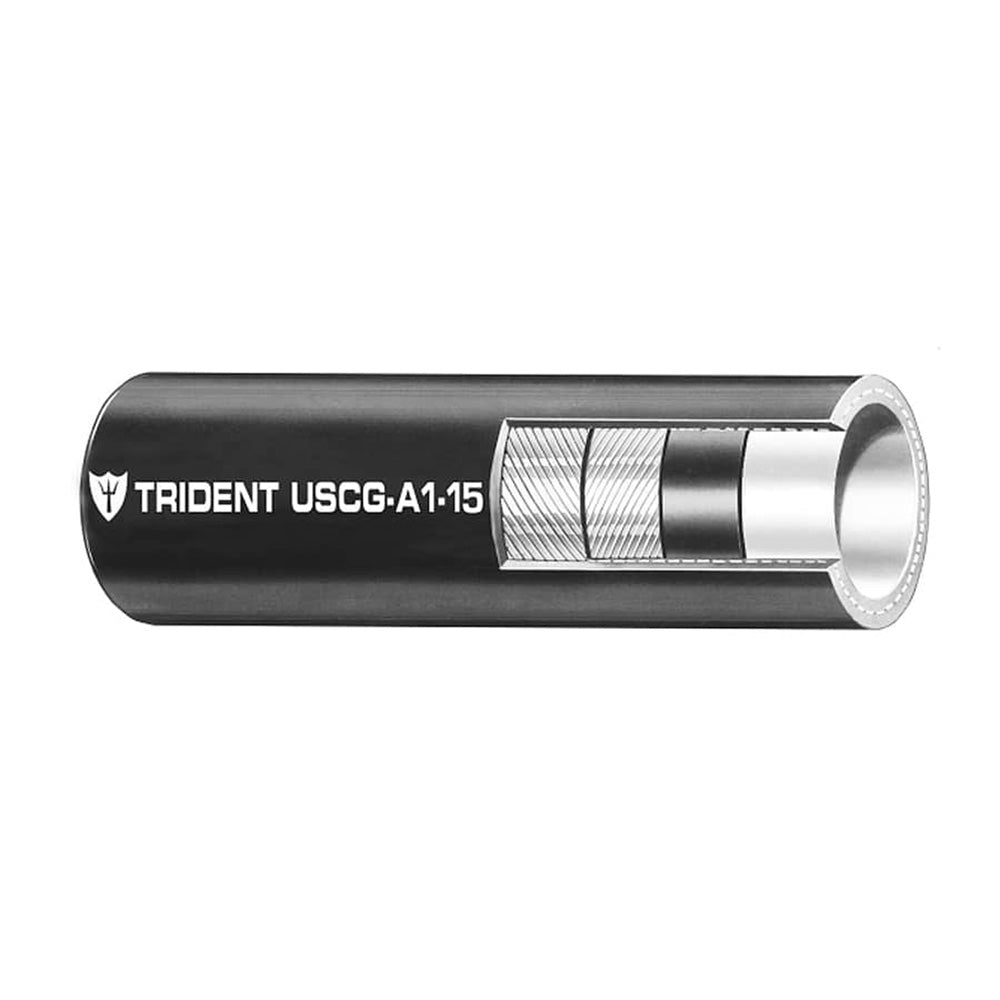

Trident Marine 3/8" Low Permeation Type A1-15 Fuel Line Hose - Black - Sold by the Foot

Ensure your marine vessel runs smoothly with our 3/8" Low Permeation Type A1-15 Fuel Line Hose. Designed specifically for the demanding environments of boating, this fuel hose offers exceptional durability, safety, and performance, making it an ideal choice for both gasoline and diesel applications.

Key Features

• Available for purchase by the foot, allowing you to customize the length to your specific needs.
• Exceptional resistance to fuel permeation, aging, fire, extreme temperatures, and ozone exposure.
• Superior bend-ability ensures easy installation in tight spaces typical on marine vessels.
• Certified by NMMA Type Accepted and CE, ensuring compliance with industry standards.

Ideal Applications

• Marine Fuel Hose: Suitable for fuel distribution, return lines, venting, and fuel transfer tasks.
• Compatible with all marine fuels, including gasoline, alcohol blends (up to CE-10), diesel, and bio-diesel.

Robust Construction

• Tube: Features a Nylon Internal Barrier and Nitrile Butadiene Rubber (NBR) for enhanced fuel resistance.
• Cover: Constructed from a durable NBR/PVC blend, providing added protection.
• Reinforcement: Equipped with two polyester spiral layers for increased strength and flexibility.
• Temperature Range: Operates reliably from -20°F to 212°F (-28ºC to 100ºC).

Technical Specifications

Specification	Value
Inner Diameter	3/8" (9.50 mm)
Outer Diameter	0.681" (17.3 mm)
Burst Pressure	400 psi (2.76 MPa)
Working Pressure	100 psi (0.69 MPa)
Bend Radius	2" (50.8 mm)
Weight	15.6 lb/100 ft. (0.233 kg/m)
Permeation Rate	<10 g/m²/24 hrs (Standard is 10g/m2/24 hrs CE10)

Certifications and Compliance

The #365 series surpasses industry standards including ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15, CARB Executive Order RM-17-008, and EPA Certified low permeation Type A1-10, ensuring top-notch performance and safety for all your marine fuel needs.

Download the Quick Guide (PDF)
