Trident Marine 3/4" x 50 VAC XHD Bilge Live Well Hose - Hard PVC Helix - Black

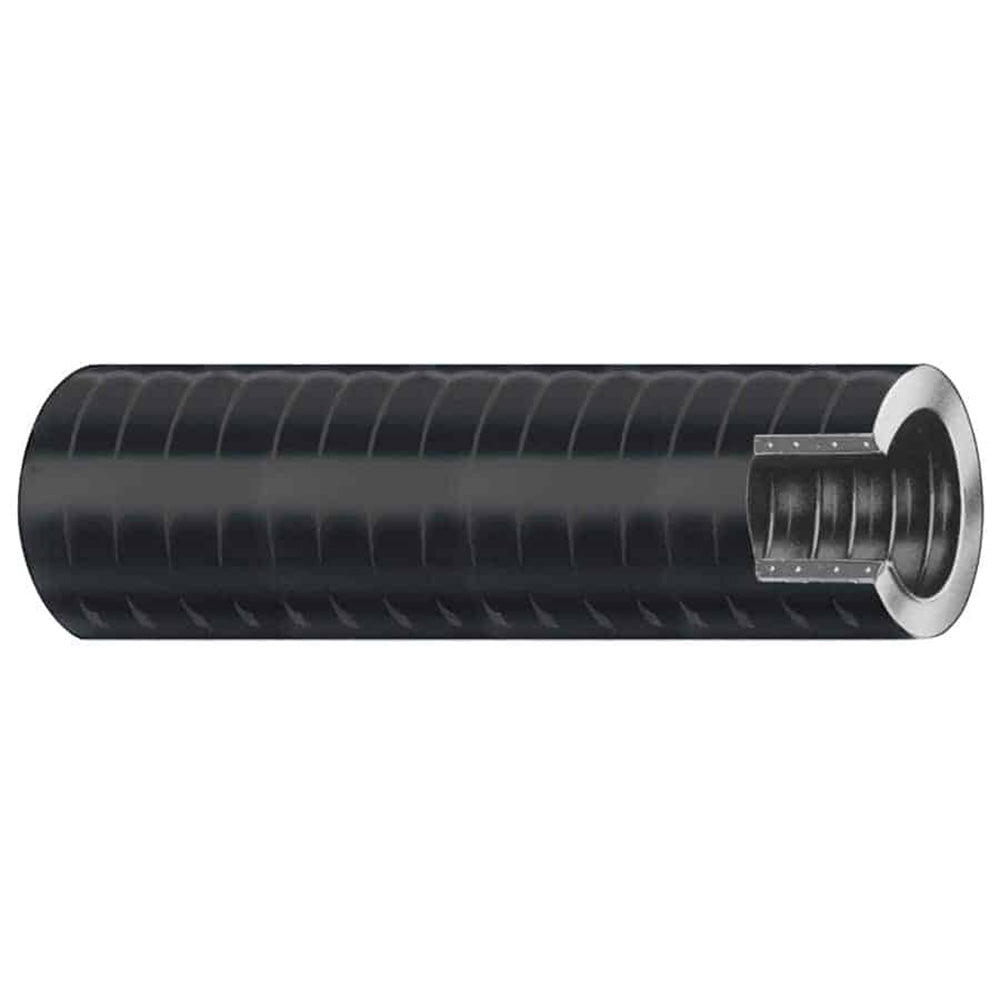

Enhance the performance and reliability of your marine vessel with the 3/4" x 50' VAC XHD Bilge & Live Well Hose from Trident. Engineered specifically for demanding marine applications, this heavy-duty PVC hose delivers exceptional flexibility and durability, ensuring seamless operation for both bilge and live well systems.

Key Features

• Extra flexible 149 series hose for easy installation and maneuverability
• Helical PVC reinforcement offers superior flexibility and bend radius, comparable to rubber hoses
• Smooth outer surface design allows for effortless clamping and secure fittings
• Hard PVC helix construction ensures long-lasting performance in harsh marine environments
• Wide temperature range operation from 10°F to 120°F (-12°C to 48°C)
• Burst pressure is four times the working pressure, providing added safety and reliability

Applications

• Bilge systems: Efficiently manage and expel unwanted water from your vessel
• Live wells: Ensure optimal water flow and circulation for aquatic life on board

Product Specifications

Attribute	Details
Length	50 ft (15.2 m)
Inner Diameter	3/4" (19.1 mm)
Outer Diameter	0.986" (25 mm)
Working Pressure	28 Psi Vac In./Hg, 1.93 Bar
Bend Radius	3" (76.2 mm)
Temperature Range	10°F-120°F (-12°C-48°C)
Tube & Cover	Hard PVC Helix
Color	Black
Weight	11 lbs (4.99 Kg) per 50 ft
Box Dimensions	5"H x 18"W x 18"L
UPC	704917017822

*Burst Pressure is 4 times the Working Pressure

Additional Resources

Download the Quick Guide (PDF)
