Trident Marine  |  SKU: LOS-100827  |  Barcode: 704917001500

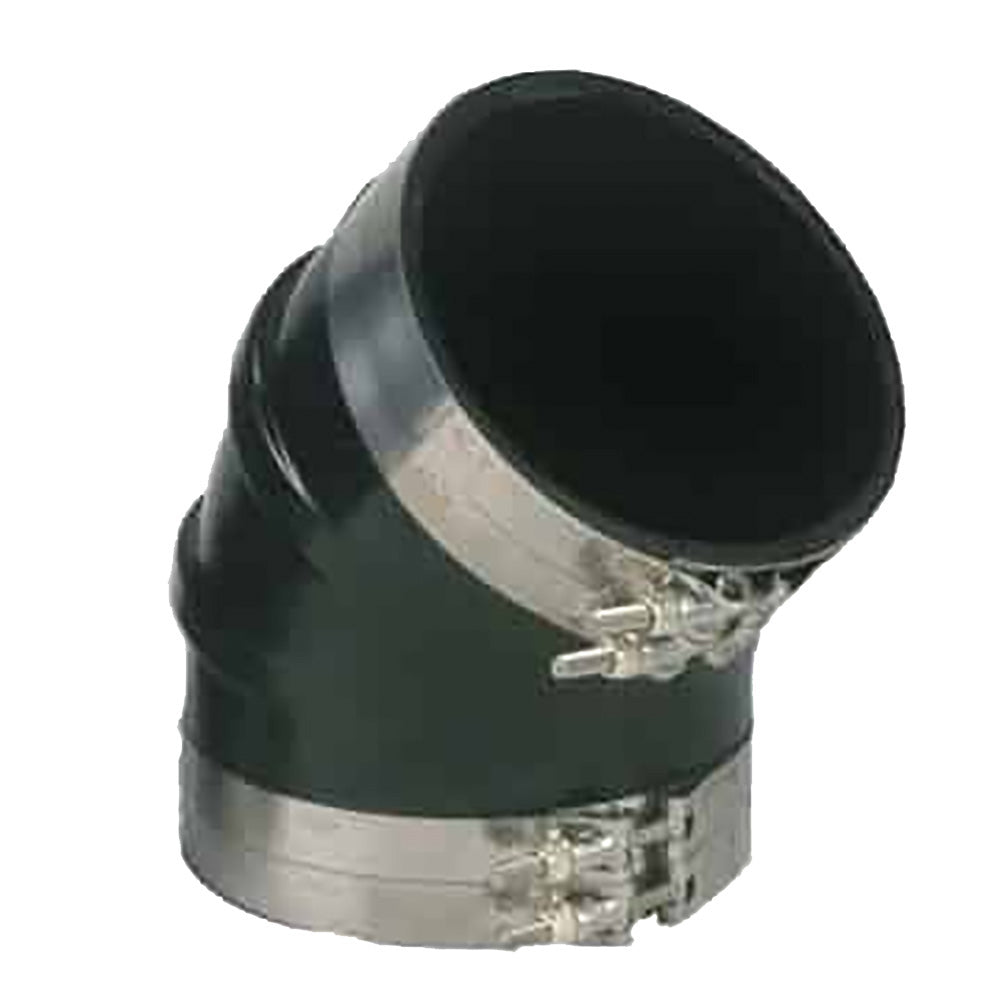

Trident Marine 3-1/2" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps

$86.99 USD $133.99

Product Description

Ensure your marine engine's exhaust system operates flawlessly with our high-quality 3-1/2" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow. Designed specifically for marine applications, this robust elbow connector provides reliable performance in demanding maritime environments.

Key Features

  • Includes four durable stainless steel T-Bolt clamps for secure installation
  • Exceptional resistance to ozone, saltwater corrosion, diesel fumes, and splash-back
  • Withstands extreme temperatures, cold, heat, and aging to ensure longevity
  • Exceeds industry standards including SAE J2006-R1 and ABYC & NMMA P-1 exhaust specifications
  • Molded from high-temperature black EPDM rubber for superior performance

Construction Details

  • Color: Black
  • Reinforcement: Reinforcing ribs on models with 6” I.D. and above for added strength
  • Temperature Range: Operates reliably up to 250°F (121°C)

Specifications

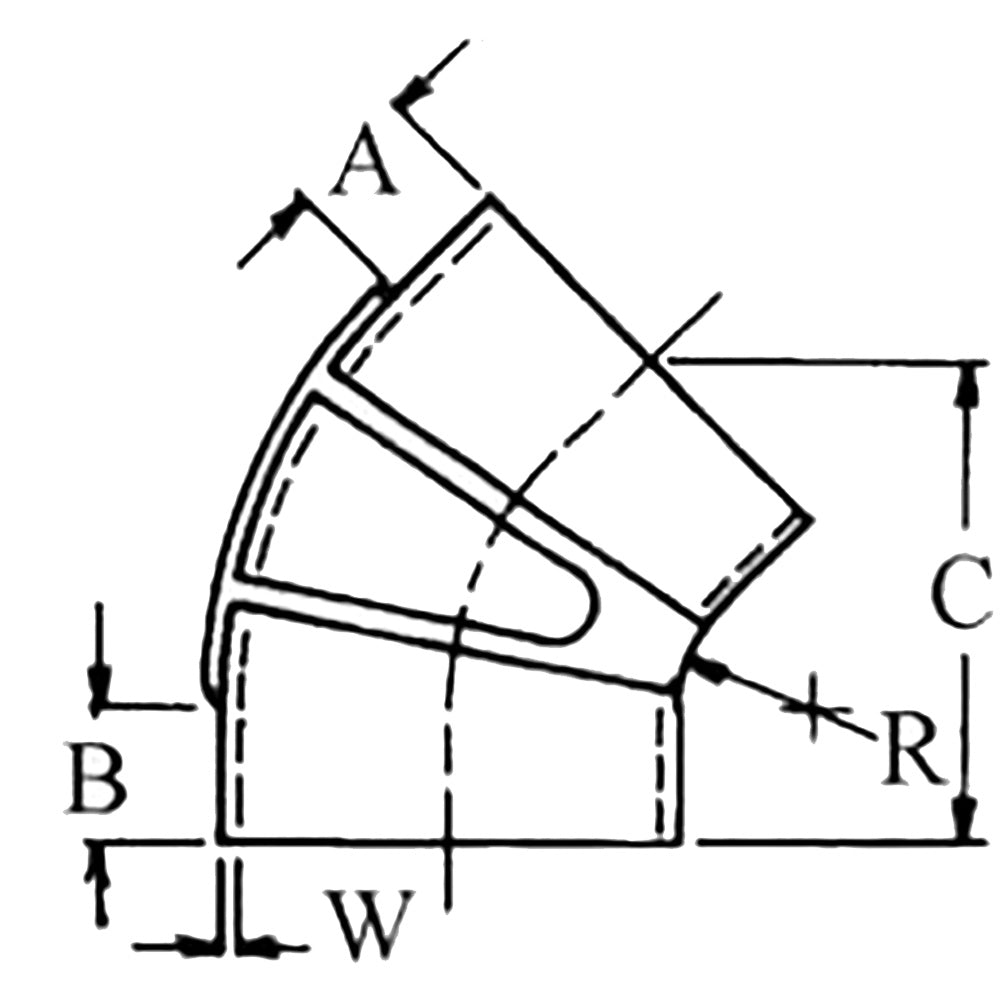

Attribute Measurement
Inner Diameter 3.5” / 88.9 mm
Outer Diameter 4.0” / 101.6 mm
Dimension A 1.5” / 38.1 mm
Dimension B 1.5” / 38.1 mm
Dimension C 5.5” / 139.7 mm
Wall Thickness (W) 0.25” / 6.35 mm
Elbow Angle 45 degrees
Weight 0.7 lbs / 0.32 kg each

For more detailed installation instructions, please refer to our Quick Guide (PDF).
