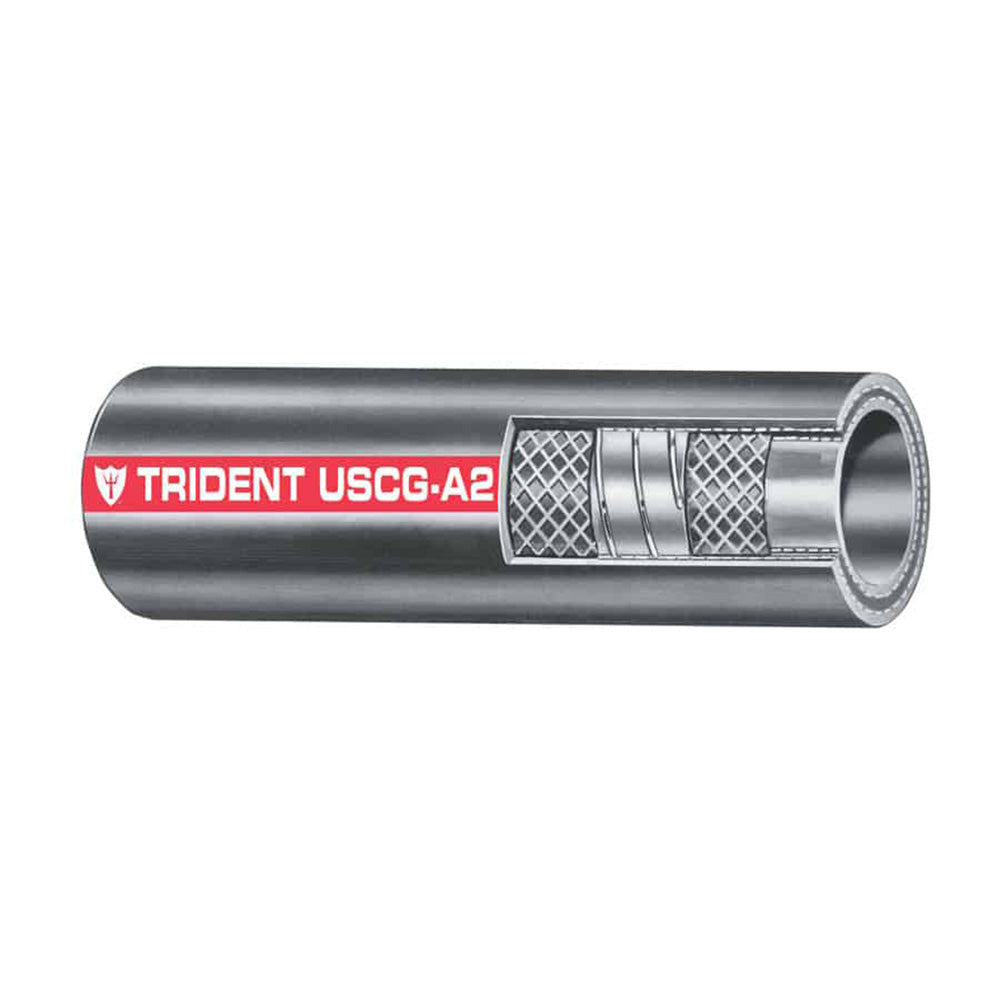

Trident Marine 2" Type A2 Fuel Fill Hose - Sold by the Foot

Ensure the safety and reliability of your vessel’s fueling system with our premium 2" Type A2 Fuel Fill Hose. Designed specifically for marine applications, this hose is perfect for both gasoline and diesel fuels, including their respective blends. Whether you're refueling at a marina or distributing diesel throughout your boat, our fuel fill hose delivers exceptional performance and durability in all marine environments.

Key Features

• Sold by the Foot: Purchase the exact length you need for your specific application, reducing waste and ensuring a perfect fit.
• Superior Resistance: Crafted with a top-tier fuel, fire, and age-resistant formulation to withstand harsh marine conditions.
• Durable Performance: Exceptional resistance to aging, fire, heat, cold, and ozone ensures long-lasting reliability.
• Excellent Bend-Ability: Flexible design allows for easy installation and maneuvering around tight spaces on your vessel.

Ideal Applications

• Marine Fuel Fill and Vent: Perfect for safely filling your boat’s fuel tanks and venting excess fuel.
• Diesel Distribution: Efficiently distribute diesel fuel to various engines and systems on your vessel.
• Versatile Compatibility: Approved for all marine fuels, including gasoline, alcohol blends, diesel, and bio-diesel, making it suitable for a wide range of marine engines and equipment.

Construction Details

• Tube & Cover: Made from high-quality NBR (Nitrile Butadiene Rubber) and Neoprene for optimal fuel compatibility and protection.
• Reinforcement: Reinforced with high-tenacity polyester, two spirals of spring steel helix for added strength and durability.
• Temperature Range: Capable of withstanding temperatures from -20°F (-20ºC) to 212°F (100ºC), ensuring performance in a variety of climates.

Specifications

Attribute	Measurement
Inner Diameter	2" (50.8 mm)
Outer Diameter	2.48" (63.5 mm)
Wall Thickness	0.25" (6.4 mm)
Working Pressure	50 psi (0.345 MPa)
Bend Radius	7.0" (178 mm)

Certifications & Compliance

The #327 series fuel fill hose surpasses industry standards, including ABYC H-24 & H-33, SAE J1527, ISO 7840, and USCG Type A2. It is also NMMA Type Accepted, CE certified, and Lloyd's Registry Type Approved, ensuring compliance with the highest safety and quality regulations in the marine industry.

Download the Quick Guide (PDF)
