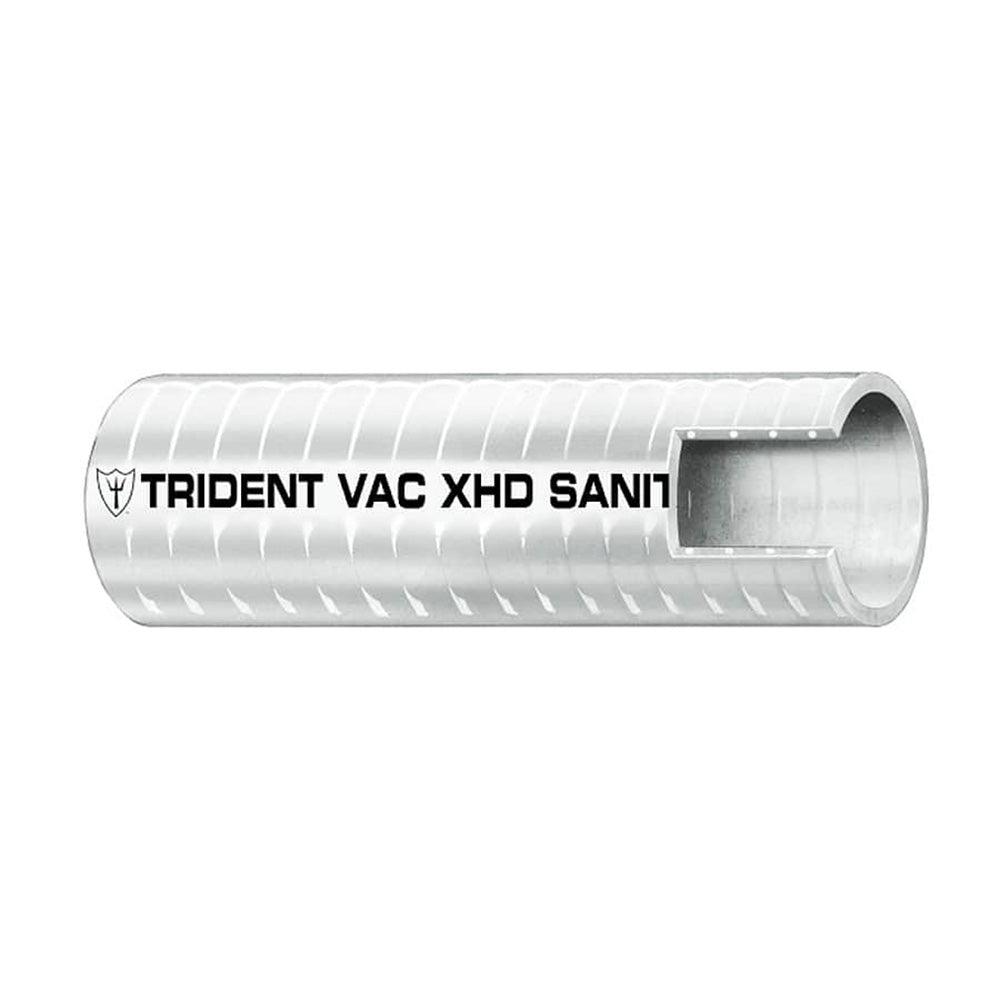

Trident Marine 1" VAC XHD Sanitation Hose - Hard PVC Helix - White - Sold by the Foot

The 1" VAC XHD Sanitation Hose is a top-tier, extra heavy-duty solution tailored for marine and boating applications. Constructed from smooth white vinyl and reinforced with a hard PVC helix, this hose delivers exceptional flexibility and durability. Its specialized composition ensures outstanding resistance to odor permeation and is certified for FDA potable water use, making it ideal for critical systems such as bilges, drain scuppers, and live wells. Sold by the foot, it allows for precise customization to meet your specific marine plumbing needs, while self-draining installations are recommended to maintain the longest odor-free service.

Features

• Available for purchase by the foot, allowing for custom lengths
• Reinforced with a hard PVC helix for excellent flexibility and minimal bend radius
• Eliminates the need for cuffs, simplifying installation
• Constructed from smooth white vinyl for a clean and professional appearance

Applications

• Engineered to resist odor permeation, ensuring a fresh onboard environment
• Certified for FDA potable water applications, making it safe for drinking water systems
• Perfect for critical marine systems including bilges, drain scuppers, and live wells
• Recommended for self-draining installations to enhance odor-free performance

Specifications

Attribute	Details
Material	Hard PVC Helix with smooth white vinyl
Color	White
Reinforcement	PVC Helix
Temperature Range	10°F - 120°F (-12°C - 48°C)
Inner Diameter	1" / 25.4 mm
Outer Diameter	1.262" / 32.1 mm
Working Pressure	28 Psi Vac / Hg
Weight	15 lbs per 50 ft / 0.52 Kg per meter
Bend Radius	3" / 76.2 mm
Available Length	Sold by the foot
Box Dimensions	1" H x 1" W x 6" L
Box Weight	0.32 lbs

Important Notes:

• Do not use with alcohol, anti-freeze, petrochemicals, or solvents.
• Burst Pressure is four times the working pressure.
