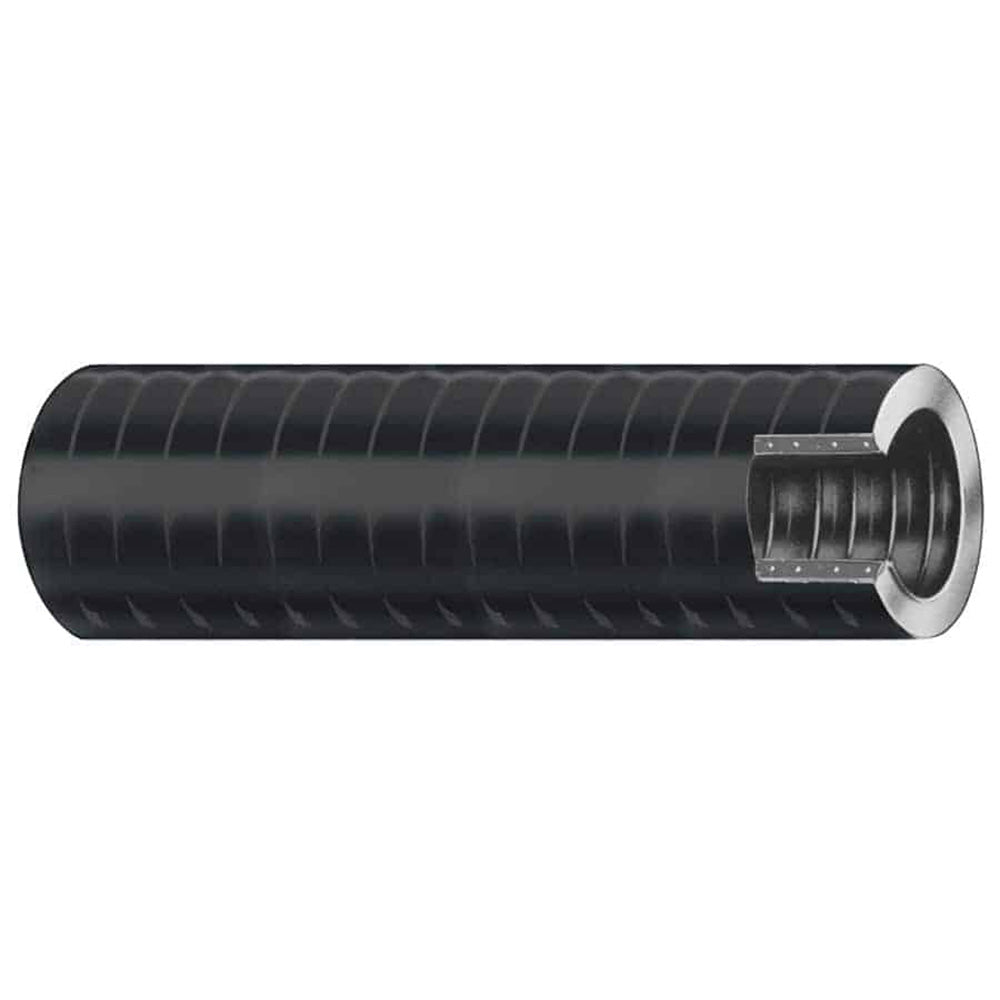

Trident Marine 1-1/8" VAC XHD Bilge Live Well Hose - Hard PVC Helix - Black - Sold by the foot

Enhance your marine vessel's bilge and live well systems with the durable and flexible 1-1/8" VAC XHD Bilge & Live Well Hose. Engineered with a hard PVC helix, this hose offers exceptional performance and reliability for both live well setups and heavy-duty bilge applications, ensuring optimal functionality even in demanding marine environments.

Product Features

• Available for purchase by the foot, allowing you to customize the length to fit your specific needs.
• 149 series hoses are designed for extra flexibility, making installation and maneuvering easier.
• Smooth outer surface facilitates easy clamping, ensuring a secure and leak-free connection.
• Helical PVC reinforcement provides excellent bend radius, mimicking the flexibility of rubber hoses while maintaining superior durability.

Applications

Perfectly suited for a variety of marine applications, including:

• Bilge systems to effectively remove unwanted water from your vessel.
• Live wells to maintain optimal conditions for fish and other marine life.

Technical Specifications

Specification	Details
Tube & Cover	Hard PVC Helix
Color	Black
Reinforcement	PVC Helix
Temperature Range	10°F-120°F (-12°C-48°C)
Inner Diameter	1-1/8" (28.6 mm)
Outer Diameter	1.433" (36.4 mm)
Working Pressure	28 Psi Vac In./Hg or 1.93 Bar
Weight	15 lbs per 50 ft (6.80 kg/m)
Bend Radius	3" (76.2 mm)
Burst Pressure	4 x Working Pressure
Box Dimensions	2"H x 2"W x 12"L
Weight	0.3 lbs

Why Choose VAC XHD Bilge & Live Well Hose?

The VAC XHD hose stands out in the marine market due to its robust construction and flexibility. Whether you're outfitting a small fishing boat or a large marine vessel, this hose provides the reliability you need to keep your bilge and live well systems functioning flawlessly. Its hard PVC helix offers superior resistance to abrasions and environmental factors, ensuring long-lasting performance even in harsh marine conditions.

Installation Tips

Installing the VAC XHD hose is straightforward, thanks to its flexible design and smooth exterior. Here are some tips to ensure a hassle-free installation:

1. Measure the required length and purchase the hose by the foot accordingly.
2. Use appropriate clamps to secure the hose to fittings, taking advantage of the smooth surface for a tight seal.
3. Ensure that bends do not exceed the recommended bend radius to maintain optimal flow and prevent kinks.
4. Regularly inspect the hose for signs of wear or damage, especially in high-stress areas.

Additional Resources

For more detailed information and installation guidance, download our Quick Guide (PDF).
