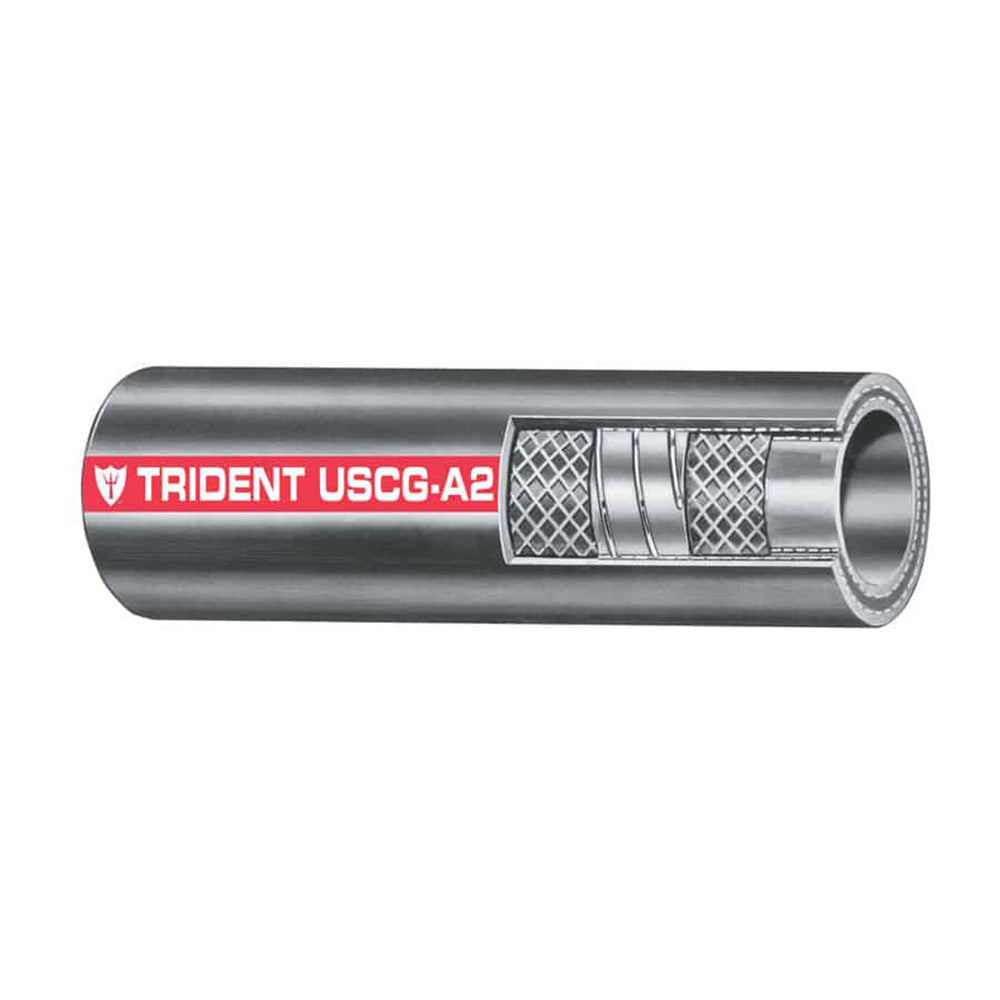

Trident Marine 1-1/2" x 50 Coil Type A2 Fuel Fill Hose

Ensure your vessel is equipped with the highest quality fuel fill solution designed specifically for marine applications. The 1-1/2" x 50' Coil Type A2 Fuel Fill Hose delivers exceptional performance and durability, making it an essential component for any boat owner looking to maintain optimal fuel transfer efficiency.

Key Features

• Superior Resistance: Crafted with a fuel, fire, and age-resistant formulation to withstand harsh marine environments.
• Durable Performance: Offers outstanding resistance to aging, fire, extreme temperatures, and ozone exposure.
• Flexible Design: Excellent bend-ability ensures easy handling and installation on various vessels.

Ideal Applications

• Marine Fuel Transfer: Perfect for fuel filling and venting, as well as diesel distribution across your boat.
• Versatile Compatibility: Approved for use with all marine fuels, including gasoline, ethanol blends, diesel, and bio-diesel.

Construction & Materials

• Tube & Cover: Made from high-quality NBR and Neoprene to ensure flexibility and durability.
• Reinforcement: Features high tenacity polyester with a dual spiral and spring steel helix for added strength.
• Temperature Range: Operational from -20°F to 212°F (-20ºC to 100ºC), suitable for a wide range of marine conditions.
• Length: Comes in a convenient 50 ft. (15.24 m) coil, allowing for ample reach and flexibility.

Technical Specifications

Attribute	Measurement
Inner Diameter	1/2" (38 mm)
Outer Diameter	2" (51 mm)
Wall Thickness	0.25" (6.4 mm)
Working Pressure	60 psi (0.41 mpa)
Bend Radius	5.5" (140 mm)

Certification & Compliance: The #327 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2 standards. It is also NMMA Type Accepted, CE certified, and Lloyd's Registry Type Approved, ensuring top-tier quality and safety for your marine fuel systems.

Download the Quick Guide (PDF)
