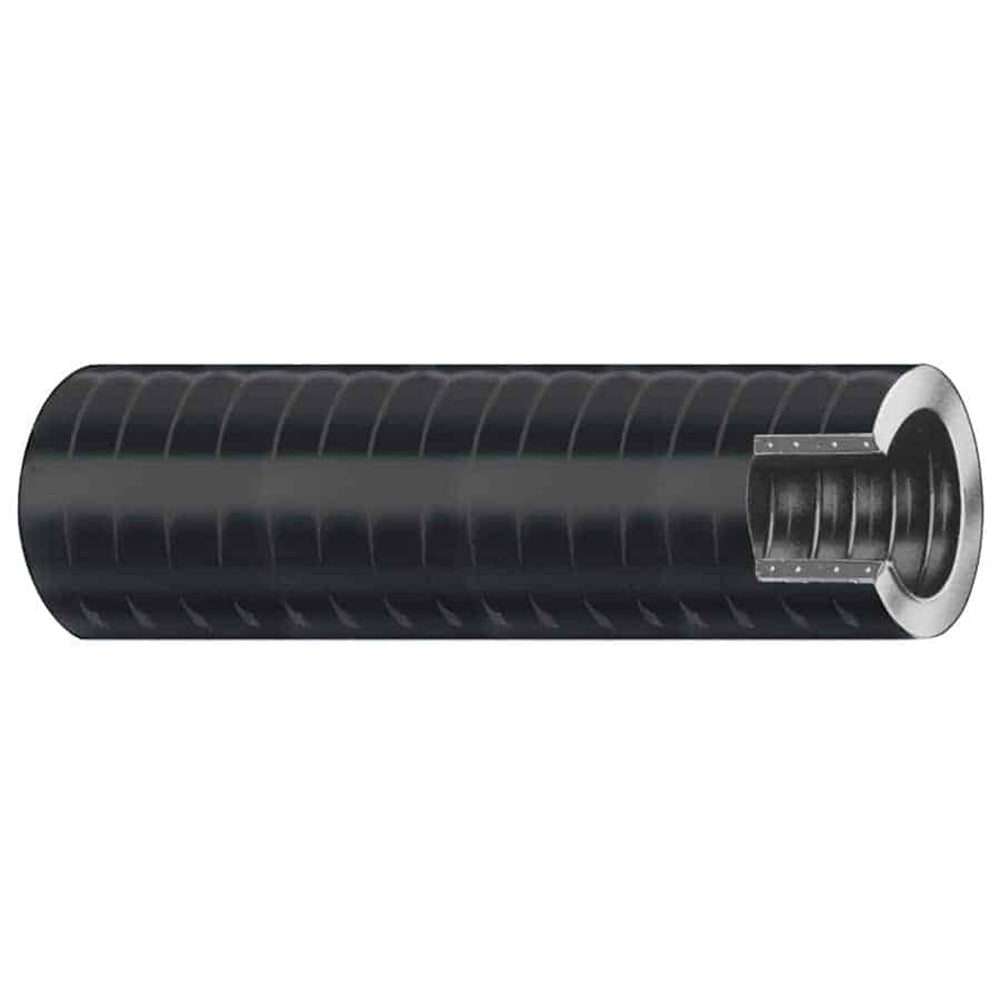

Trident Marine 1-1/2" VAC XHD Bilge Live Well Hose - Hard PVC Helix - Black - Sold by the Foot

Upgrade your marine vessel with the 1-1/2" VAC XHD Bilge & Live Well Hose, engineered for superior performance in demanding marine environments. This hard PVC helix reinforced hose offers unmatched flexibility and durability, making it ideal for both live well and heavy-duty bilge applications. Its sleek black exterior ensures easy clamping and a professional appearance, while the enhanced bend radius simplifies installation akin to traditional rubber hoses.

Features

• Available for purchase by the foot, allowing precise length customization.
• 149 series hoses provide exceptional flexibility for varied marine setups.
• Helical PVC reinforcement ensures longevity and resistance to harsh marine conditions.
• Smooth outer surface facilitates effortless clamping and secure connections.

Applications

• Ideal for bilge pumping systems, ensuring efficient water removal.
• Perfect for live wells, maintaining optimal conditions for live bait and marine life.
• Suitable for a variety of heavy-duty marine hose requirements.

Technical Specifications

Attribute	Details
Tube & Cover Material	Hard PVC Helix
Color	Black
Reinforcement	PVC Helix
Temperature Range	10°F - 120°F (-12°C - 48°C)
Inner Diameter	1-1/2" / 38.1 mm
Outer Diameter	1.792" / 45.5 mm
Working Pressure	28 Psi Vac In./Hg or 1.93 Bar
Weight	22 lbs per 50 ft. / 9.98 Kg per meter
Bend Radius	4" / 101.6 mm
Burst Pressure	4 times the Working Pressure
ID Diameter	1-1/2 inches
Length	Sold By The Foot
Box Dimensions	3"H x 3"W x 12"L
Weight	0.46 lbs

Additional Resources

For detailed installation instructions and maintenance tips, please refer to our Quick Guide (PDF).
