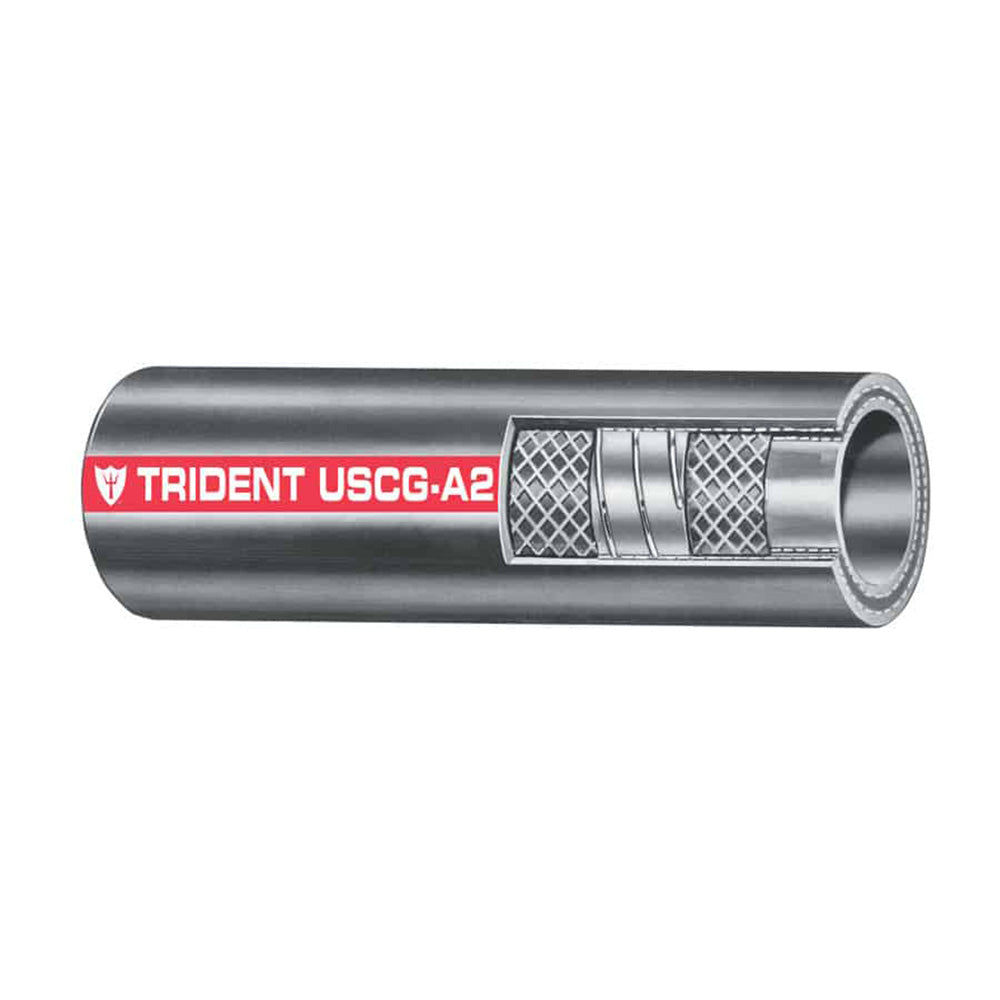

Trident Marine 1-1/2" Type A2 Fuel Fill Hose - Sold by the Foot

Ensure your marine fuel system operates reliably with the Trident 1-1/2" ID A2 Fuel Fill Hose. Specifically designed for boating and marine applications, this hose handles both gasoline and diesel fuels, including ethanol and bio-diesel blends, offering durability and safety in all marine environments.

Features

• Available for purchase by the foot, allowing custom lengths tailored to your specific needs
• Constructed with a superior fuel, fire, and age-resistant formulation
• Exceptional resistance to aging, fire, extreme temperatures, and ozone exposure
• Outstanding flexibility and bend-ability for easy installation and maneuverability

Applications

• Ideal for marine fuel fill and vent systems, as well as diesel fuel distribution
• Approved for use with all marine-compatible fuels, including gasoline, alcohol blends, diesel, and bio-diesel

Construction

• Tube & Cover: Nitrile Butadiene Rubber (NBR) / Neoprene
• Reinforcement: High-tenacity polyester with dual spiral reinforcement and spring steel helix
• Temperature Range: -20°F to 212°F (-20ºC to 100ºC)

Specifications

Specification	Details
Inner Diameter	1/2" (38 mm)
Outer Diameter	2" (51 mm)
Wall Thickness	0.25" (6.4 mm)
Working Pressure	60 psi (0.41 MPa)
Bend Radius	5.5" (140 mm)

Certifications: The #327 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2 standards. It is also NMMA Type Accepted, CE certified, and Lloyd's Register Type Approved, ensuring compliance with the highest safety and quality standards for marine applications.

Download the Quick Guide (PDF)
