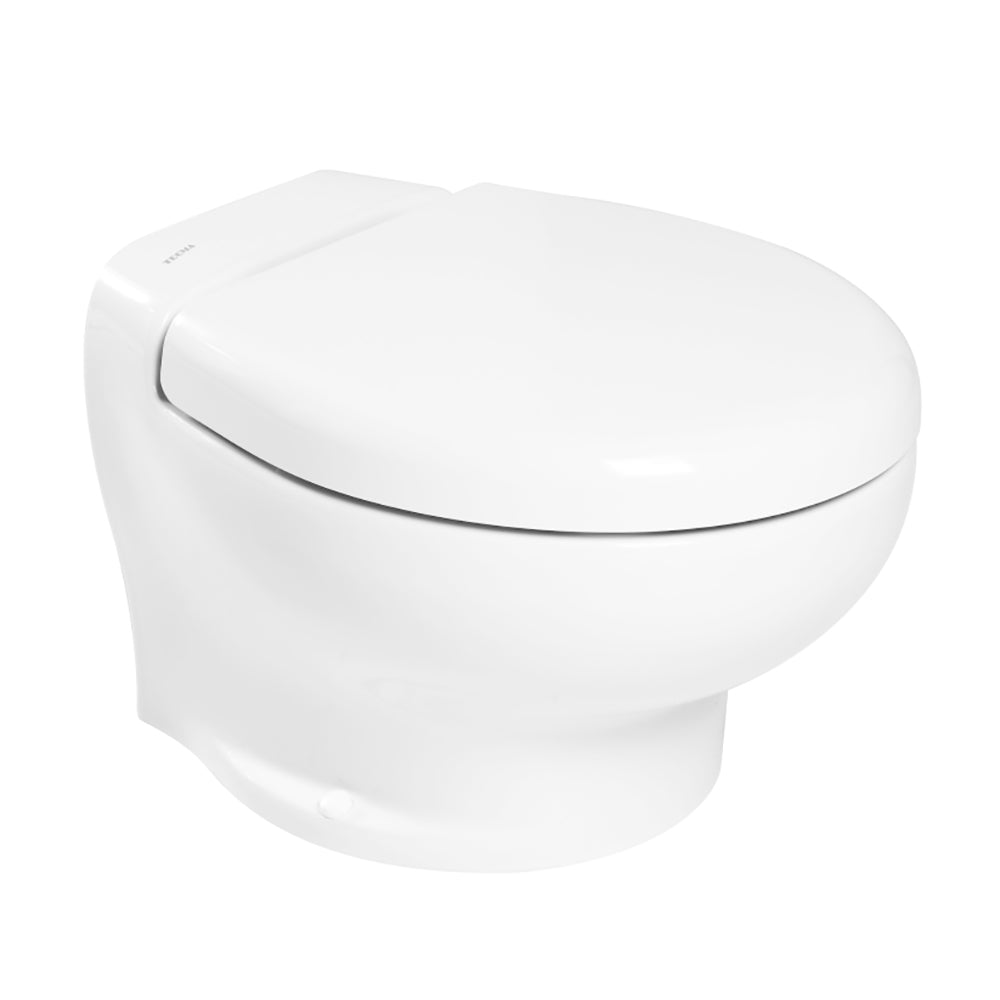

Thetford Nano Touch Compact Toilet - 12V

The Nano Touch Compact Toilet - 12V is the ultimate solution for marine and boating enthusiasts seeking a reliable, space-saving toilet without compromising on performance. Engineered with advanced Turbine Technology, this toilet delivers a powerful, clog-resistant flush, ensuring a clean and dry bowl every time.

Product Overview

The Nano Touch Compact Toilet by Thetford Marine combines the efficiency of a highly effective marine toilet with a compact design, making it ideal for vessels under 50′ (45m). Its elegant and flexible installation design caters to the evolving needs of modern boat owners, providing comfort and functionality in a smaller footprint.

Key Features

• Advanced Flush System: Utilizes two check valves and a water trap to prevent odor issues.
• Quiet Operation: Operates with minimal noise, ensuring a peaceful onboard environment.
• Dual Flush Capability: Compatible with both raw water and pressure water flush systems.
• Efficient Cleaning: Leaves a clean, dry bowl after every powerful flush, reducing maintenance.
• Energy and Water Saving Options: Optional Eco rocker switch available to reduce consumption or a smart flush controller for advanced flush and tank control features (sold separately).

Technical Specifications

Material	Italian ceramic
Flush Rate	0.1-0.7 gallons per flush
Outlet Pump Recommended Fuse	30A
Outlet Pump Performance	13.1ft vertical suction, 131.2ft horizontal suction
Inlet Solenoid (Freshwater) Power Consumption	9.5W
Inlet Pump (Raw Water) Fuse	8A
Inlet Pump (Raw Water) Pressure	45 PSI
Voltage	12V
Color	White
Gallons Per Minute	3 GPM
Inlet Size	1/2"
Operation Method	Electric
Outlet Size	1.5"
Rinse Water	Raw/Fresh
Size	Compact
Suction Lift	13 ft
Type	Toilet
Box Dimensions	17"H x 18"W x 21"L
Weight	46 lbs
UPC	028985002864

What's in the Box

• 1 - 12V Tecma Nano Toilet
• 1 - Wall Switch and Controller
• 1 - Black Wall Switch Bezel
• 1 - Bone Wall Switch Bezel
• 2 - 1/4" 10 x 2.5” Stainless Steel Lag Screws
• 2 - 1/4” Stainless Steel Washers
• 2 - Plastic Washers
• 2 - Bolt Caps
• 2 - Hose Clamps – 1 1/4” - 2”, Stainless
• 1 - Full Tank Sensor
• 1 - Lower Discharge Check Valve (with Straight and Elbow Fittings)
• 1 - Installation/Owner's Manual

Installation and Maintenance

The Nano Touch Compact Toilet is designed for easy installation, thanks to its compact size and the flexibility provided by Thetford Marine's design. Whether you're outfitting a new vessel or upgrading an existing system, the comprehensive installation manual ensures a hassle-free setup. Regular maintenance is minimal, with the powerful flush system minimizing the risk of clogs and keeping the bowl clean and dry.

Video Demonstrations
