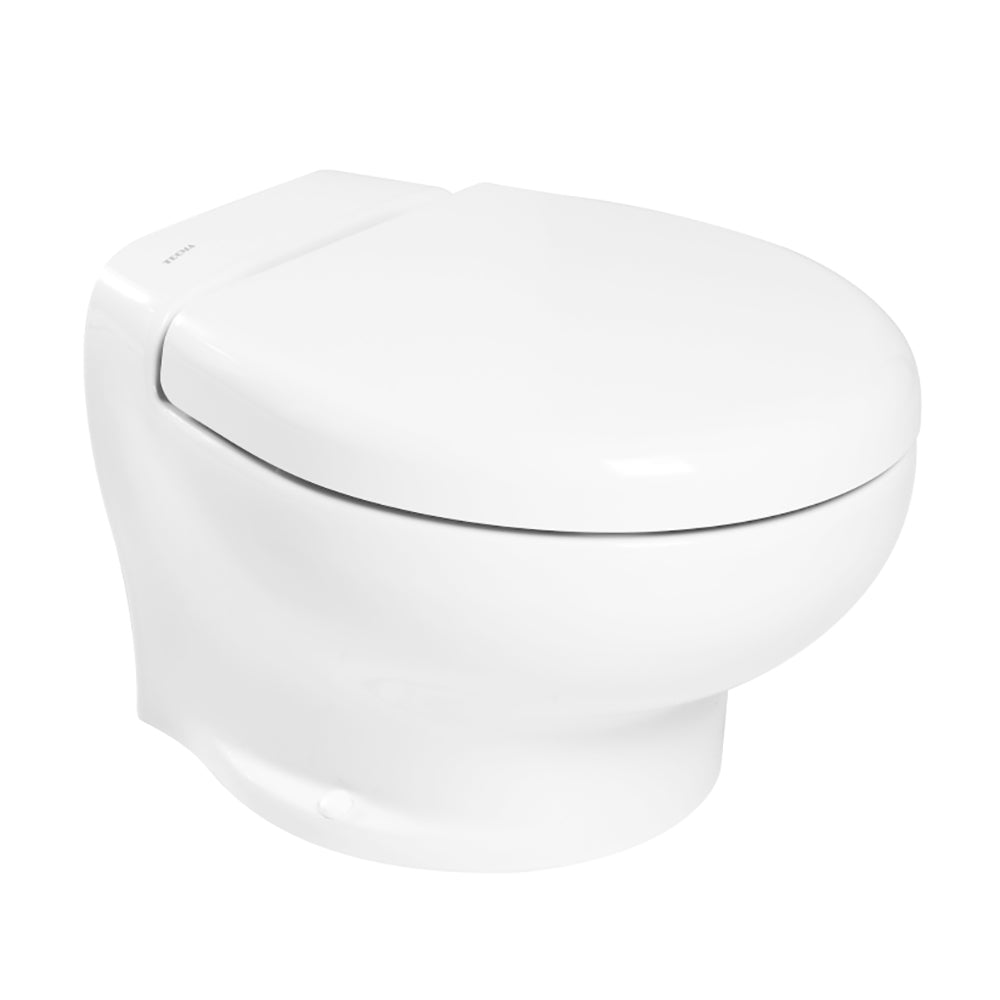

Thetford Nano Touch Compact Toilet - 24V

The Nano Premium Plus Compact Toilet - 24V is a state-of-the-art marine toilet designed for vessels under 50 feet. Combining powerful, clog-resistant flushing with a compact, elegant design, it offers the comfort and efficiency of larger units in a smaller footprint, making it ideal for marine installations.

Features

• Includes 2 check valves combined with a water trap to eliminate odor issues
• Incredibly quiet operation for a comfortable onboard experience
• Flexible flush options supporting both raw water and pressure water systems
• Ensures a clean, dry bowl after every powerful flush
• Optional user-friendly Eco rocker switch to reduce energy and water consumption or a smart flush controller with advanced flush and tank control features (sold separately)

Technical Specifications

Material	Italian ceramic
Flush Rate	0.1-0.7 gallons per flush
Flush Options	Raw water and pressure water flush
Operation Method	Electric
Volts	24V
Color	White
Gallons Per Minute	3 GPM
Inlet Size	1/2"
Outlet Size	1.5"
Rinse Water	Raw/Fresh
Size	Compact
Suction Lift	13ft
Outlet Pump Recommended Fuse	20A
Outlet Pump Performance	13.1ft vertical suction, 131.2ft horizontal suction
Inlet Solenoid (Fresh Water) Power Consumption	10W
Inlet Pump (Raw Water) Fuse	4A
Inlet Pump (Raw Water) Pressure	45 PSI

What's Included

• 1 - 24V Tecma Nano toilet
• 1 - Wall switch and controller
• 1 - Black wall switch bezel
• 1 - Bone wall switch bezel
• 2 - 1/4" 10 x 2.5” stainless steel lag screws
• 2 - 1/4” stainless steel washers
• 2 - Plastic washers
• 2 - Bolt caps
• 2 - Hose clamps – 1 1/4”- 2”, stainless
• 1 - Full tank sensor
• 1 - Lower Discharge Check Valve (with straight and elbow fittings)
• 1 - Installation/Owner's Manual
