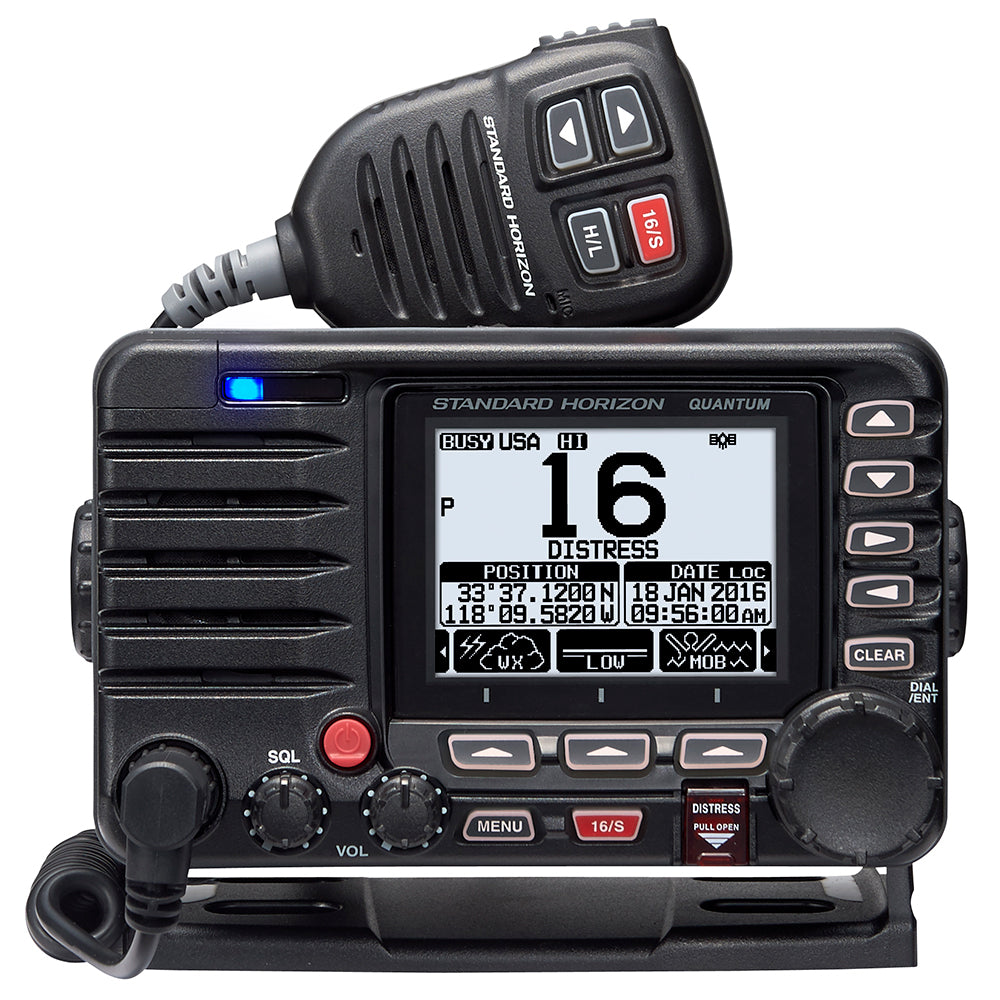

Standard Horizon Quantum GX6000 25W Commercial Grade Fixed Mount VHF w/NMEA 2000, Integrated AIS receiver, Speaker Mic

$499.99 USD $549.99

Product Description

Enhance your marine communication system with the Quantum GX6000, a 25W commercial-grade fixed mount VHF radio designed for reliability and advanced functionality. Integrated with NMEA 2000 and an AIS receiver, this VHF provides seamless connectivity and comprehensive maritime safety features, making it an essential addition to any serious boater's arsenal.

Advanced NMEA 2000 Integration

The Quantum GX6000 features a plug-and-play NMEA 2000 interface, ensuring effortless integration into your existing marine network. It supports all PGNs for Navigation, GPS, AIS, and DSC functions, allowing you to enhance your vessel’s communication capabilities with full VHF and DSC features.

Wireless Remote Control with RAM4W

Experience unparalleled control with the RAM4W wireless Remote Access Microphone. This feature allows you to wirelessly manage all radio functions of the GX6000 from up to 65 feet away. Sync up to four RAM4W units using the SCU-30 Wireless Access Point, enabling DSC calling, position polling, group calling, and intercom capabilities between the main station and other wireless units.

Built-In AIS Receiver

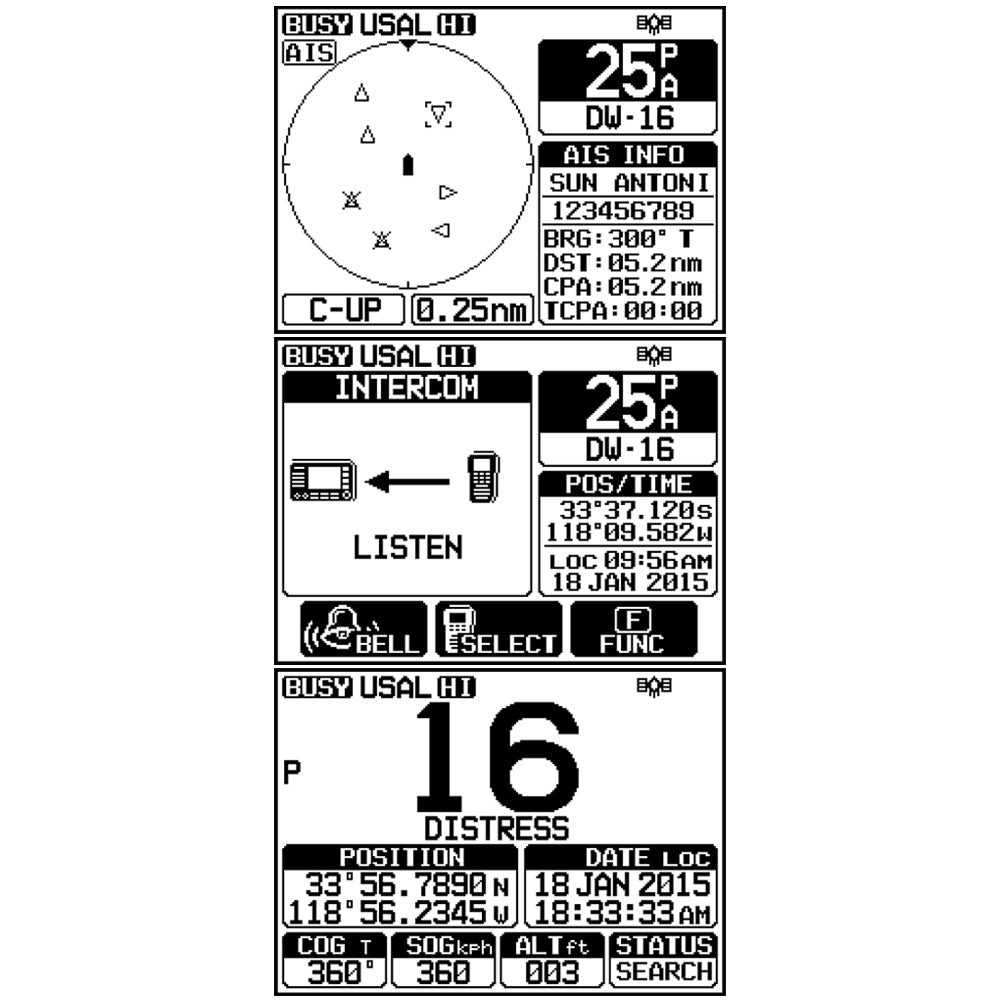

The integrated AIS receiver in the Quantum GX6000 provides real-time AIS target information directly on the large front panel display. View essential data such as MMSI, Call Sign, Ship Name, Bearing, Distance, Speed Over Ground (SOG), and Course Over Ground (COG). This feature allows you to contact AIS-equipped vessels via DSC, monitor your position relative to AIS targets, and receive alerts when ships approach too closely with the Closest Point of Approach (CPA) Alarm.

Powerful 25W PA/Loud Hailer

Communicate loudly and clearly with the built-in 25W loud hailer, complete with preprogrammed fog signals, bells, whistles, and listen-back functionality. The last selected VHF channel remains audible during PA or fog modes, and you can simultaneously view the AIS display while operating the hailer. Additionally, initiate a fog horn and monitor AIS data simultaneously for enhanced safety.

Secure Communications with Voice Scrambler

Ensure your communications remain private with the integrated 32-code voice scrambler (FVP-42) and 4-code scrambler (CVS2500A). Compatible with all Standard Horizon 4-code scramblers, simply select a channel to scramble and choose a common code between transmitting and receiving radios for secure, encrypted communication.

Comprehensive Features

  • Integrated AIS Receiver
  • Built-in Speaker in Microphone Handset
  • AIS / AIS SART Target Display: MMSI, Call Sign, Ship Name, BRG, DST, SOG, COG
  • NMEA2000 and NMEA0183 Compatible
  • Programmable CPA and TCPA Collision Avoidance Alarms
  • Dual Zone 25W PA / Loud Hailer with Preprogrammed Fog Signals and Listen Back

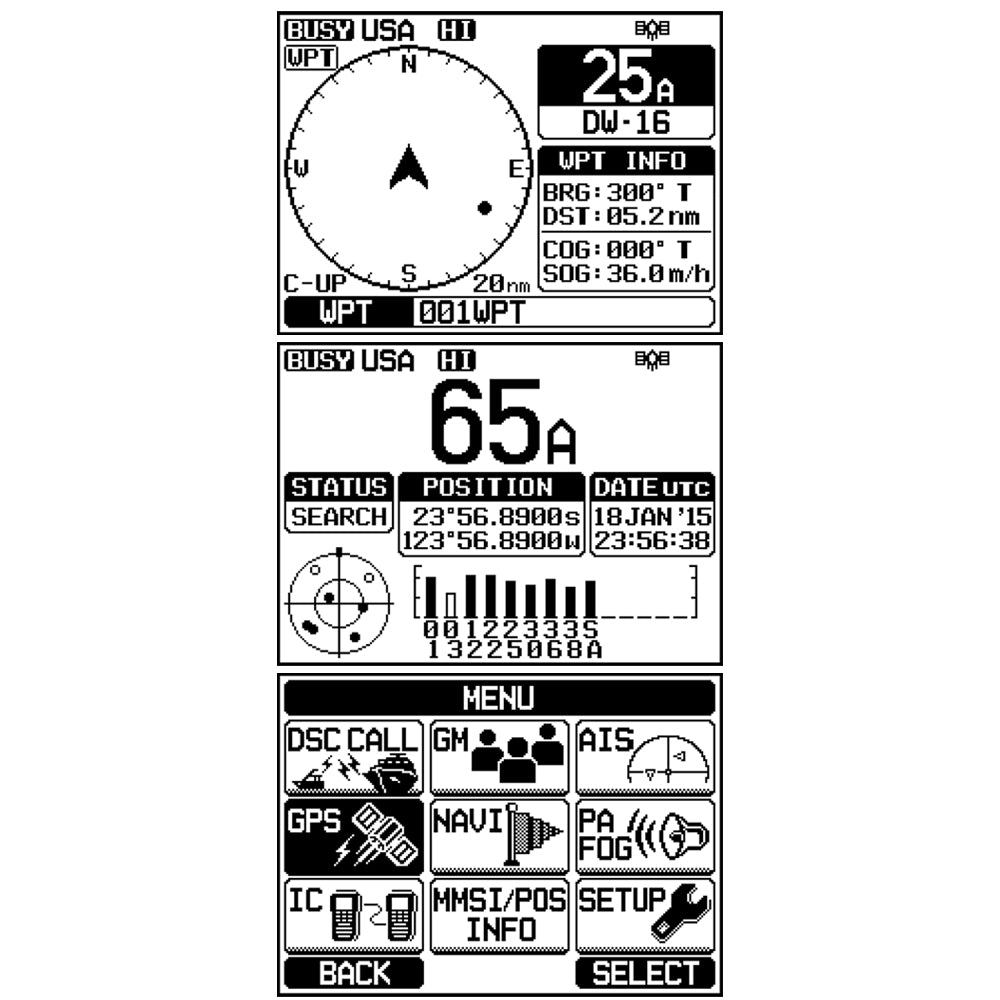

  • GPS Compass, Waypoint, and GPS Status Pages
  • E2O Easy to Operate Menu System
  • Oversized Rotary Channel Knob with Push to Enter
  • Front Panel Microphone Connection with Rear Panel and 20-Foot Extension via MEK-4 Kit
  • Supports Two Optional RAM4 or Four Wireless RAM4W Units
  • Integrated Voice Recorder for Up to Two Minutes of RX Audio Playback
  • Advanced 80dB Commercial Grade Receiver with Local / Distance Attenuator
  • Compact Design: 6.9"W x 4.3"H
  • Flush-Mount Dimensions: 6.2"W × 3.7"H × 6.2"D
  • 3-Year Waterproof Warranty

Note: Requires a separate dedicated AIS antenna

Technical Specifications

Feature Specification
NMEA 2000 Yes
Built-In GPS No
AIS Yes
Hailer Yes
Remote Mic Capable Yes
Scrambler Capable Yes
Color Black
Intercom Capability Yes
Listen-Back Yes
Box Dimensions 9"H x 10"W x 14"L
Weight 6.6 lbs
UPC 788026149056

Download the Brochure (PDF)
