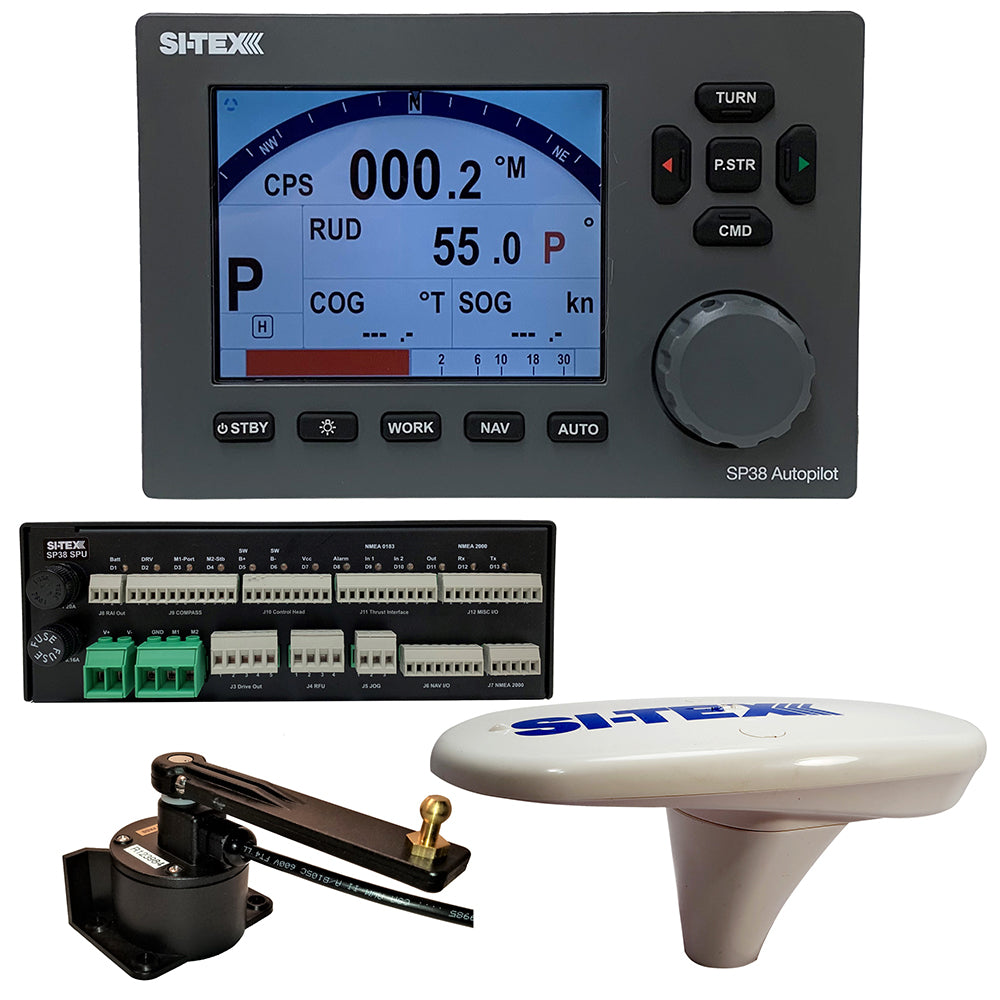

SI-TEX SP38-18 Autopilot Core Pack Including Compact GPS Compass RotaryFeedback, No Pump

Enhance your vessel's navigation and steering capabilities with the SP38-18 Autopilot Core Pack. Engineered for precision and adaptability, this comprehensive autopilot system is perfect for a wide range of marine applications, ensuring smooth and reliable performance in varying sea conditions.

Key Features

• Intelligent Steering Technology (IST): Delivers superior vessel steering capabilities with adaptive responses to sea conditions and vessel speeds.
• AUTO-SETUP: Facilitates automatic drive detection, rudder response time, compass detection, and calibration for hassle-free installation.
• Advanced Interfaces: Equipped with NMEA 2000, ETHERNET, and NMEA 0183 interfaces for seamless integration with onboard systems.
• Versatile Compatibility: Configurable for fishing boats, offshore vessels, workboats, towboats, and yachts.
• Proportional Rate Control (PRC): Ensures a gentle and smooth steering response for optimal maneuverability.
• Multi-Station Capability: Features a security station lock to allow multiple control stations on the vessel.
• Sunlight Viewable Display: 5.7” color LCD screen remains clear and readable even in bright sunlight.
• Automatic Leeway Compensation (ALC): Adjusts for drift, tide, and wind to maintain accurate course.
• Optional Enhancements: Includes options for Z-Drive interface and Automatic Bow-Thruster Control for advanced maneuvering.
• Multi-Language Support: Available in English, Chinese, French, German, Norwegian, Spanish, Italian, Vietnamese, and more.
• Durable Construction: IP67 waterproof rating for the control head, TS4, NF4, and WS4 components.
• Compliance: RoHS & CE certified for EMI and RFI immunity.

Additional Features

• Backlit LCD Display: 9-level brightness control with a red night palette to preserve night vision for operators.
• Pre-Defined Parameter Sets: Optimized for full or semi-displacement, planning hulls, stern drives, and sailboat applications.
• Customizable Steering Parameters: Multiple settings for Fast Cruise, Slow Cruise, and Work modes to suit different navigation needs.
• User-Friendly Controls: Features a simple course knob with mechanical detent for easy adjustments.
• Automatic Trim: Automatically adjusts trim for optimal vessel performance.
• Adjustable Settings: Fine-tune yaw, turn rate, and rudder settings to match your vessel's characteristics.
• Collision Avoidance: PORT and STBD dodge buttons help prevent potential collisions.
• Rudder Angle Indicator: Provides output for optional analog rudder angle indicators, supporting up to four stations.
• Seamless Integration: Fully compatible with onboard NMEA N2K instruments and most steering systems.

Specifications

Operating Voltage	10 to 30 VDC
Power Consumption	Average: 0.5 Amps Peak: 3 Amps (Lower consumption with low backlight setting)
Drive Output	20 Amps
Network	NMEA 2000 & Ethernet
Navigational Interface	NMEA 0183 input/output
NMEA 0183 Output	Heading (10x per sec), Autopilot Status (1x per sec)
Heading Reference	Fluxgate, Magnetic Compass, NMEA Compass, or Sat Compass
Course Resolution	1°
Course Detection	0.5°

Package Details

• Type: Parts
• Box Dimensions: 17"H x 20"W x 20"L
• Weight: 23.1 lbs
• UPC: 010407750071

Quick Guide

Download the Quick Guide (PDF)

Product Video
