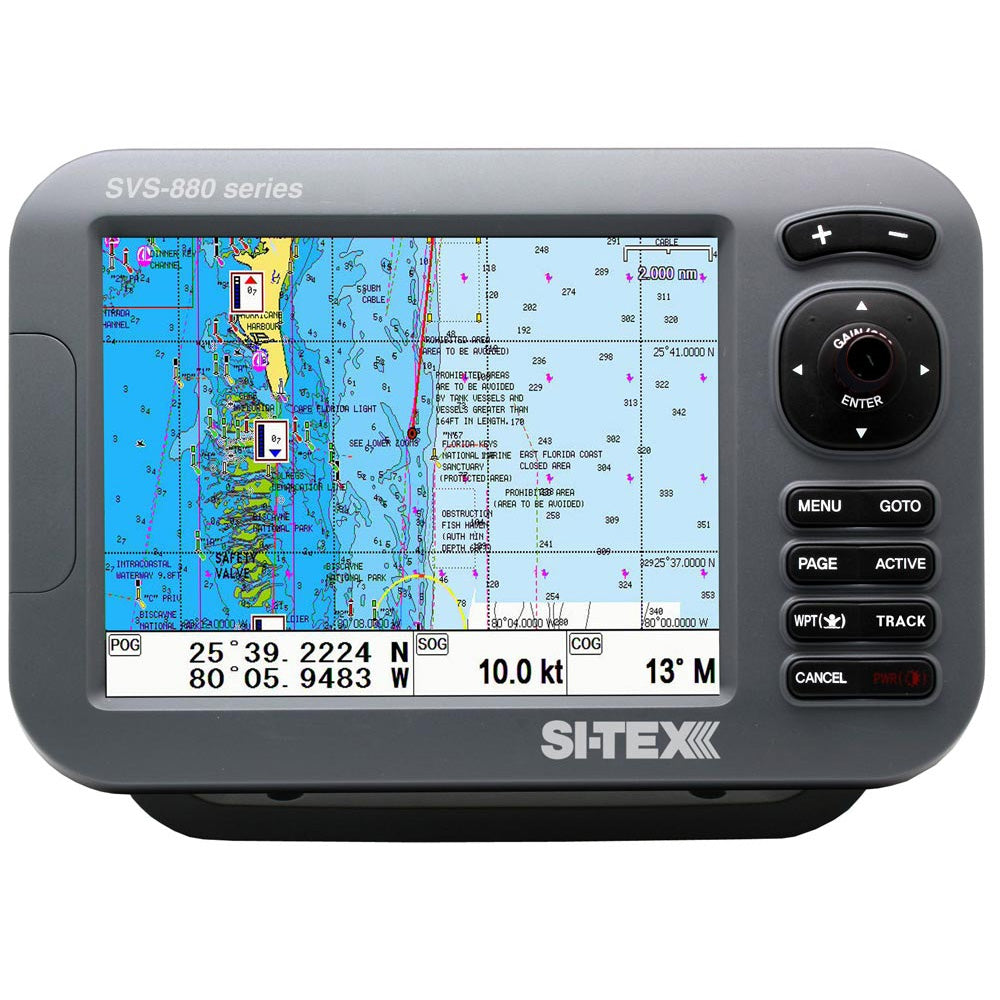

SI-TEX GPS Chart-Dual Frequency 600W Sonar System - 8 Color LCD w/Internal External GPS Antenna C-MAP 4D Card

The SI-TEX SVS-880CFE+ is a top-of-the-line GPS chartplotter and sonar system designed to enhance your boating experience. With its large 8” color LCD, dual-frequency sonar, and robust GPS capabilities, this system is perfect for a wide range of vessels, from small center console boats to larger sailboats and light commercial vessels.

Key Features

• Dual GPS Antenna: Includes both internal and external GPS antennas for optimal signal reception.
• High-Resolution Display: 8” color LCD with brilliant LED backlighting ensures excellent readability in all lighting conditions.
• Advanced Sonar: 600-watt dual-frequency (50/200 kHz) digital echo sounder provides detailed underwater imagery.
• Dual Fuel Charting: Supports both C-MAP and Navionics cartography, pre-loaded with Navionics Gold North American Chart Card.
• Global Compatibility: Supports global GPS systems, including GPS, GLONASS, QZSS, and Galileo for precise positioning worldwide.
• Intuitive Operation: Easy-to-use interface with straightforward controls for seamless navigation.
• Video Integration: Features a video input for connecting underwater and on-deck cameras.

Enhanced Performance: SVS-880CFE vs. SVS-880CFE+

The SVS-880CFE+ model is equipped with an updated Android processor, providing faster and more reliable performance. Additionally, it exclusively uses C-MAP 4D chart cartridges, offering enhanced map detail and navigation features compared to the SVS-880CFE.

Technical Specifications

General Specifications

Display Screen	8-inch Color LCD with LED backlight
Resolution	SVGA (800 x 600 pixels)
Power Supply	DC 12V-36V (±10%) SVS-880: 4W (without sonar) / 6W (with sonar)
Operating Temperature	Display Unit: -15°C to +50°C Antenna Unit: -25°C to +70°C
Performance Standard	IMO Resolution MSC.112(73)

Chartplotter Specifications

Display Method	Mercator Projection
Display Modes	True motion, N/S/E/W up, Course up, Head up
Latitude Limits	85° N to 85° S
Map Scale	0.05nm to 1500nm
Map Datum	WGS-84
Waypoints	20,000 points 16 selectable colors and icons per point Name tags: 6 alphanumeric characters
Track Points	50,000 points (2 types)
Routes	Up to 100 routes 20 waypoints per route Name tags: 8 alphanumeric characters
Additional Features	Draw Points: 1,000 Area Names: 1,000 Chart Data: Standard with Navionics Gold, C-MAP MAX optional
Data Connectivity	Output: NMEA-0183 Input: NMEA-0183
Alarms	Arrival, Anchor, XTE, Interval Timer, User Line

GPS Receiver Specifications

GNSS Capabilities	GPS - L1 C/A code GLONASS - L1OF/ QZSS - L1 C/A code Galileo - E1B/E1C/L1
Number of Channels	52 channels
Positioning Accuracy	Autonomous: 2.5m (CEP 50%)
Sensitivity	Acquisition: -148 dBm Tracking: -165 dBm Reacquisition: -162 dBm Navigation Update: 1Hz, 5Hz
Supported Systems	DGPS, SBAS (EGNOS, WAAS, MASA, GAGAN)

Sonar Specifications

Display Modes	Normal (single/dual-frequency), Bottom-lock, Bottom-zoom, A-scope
Frequency	50 and 200 kHz (single or dual)
Output Power	600W
Range Speed	2.5m - 600m
Image Speed	Fixed 8 speeds: 4/1, 2/1, 1/1, 1/2, 1/4, 1/8, 1/16, 1/32 and stop
Rejection	Interference Rejection: 3 levels Noise Rejection: 4 levels
Functions	Gain (auto/manual), Range (auto/manual), Shift (auto/manual) White/Black Line Supports Speed Sensor Water Temperature Monitoring

Additional Specifications

• Cartography Brand: Navionics/C-Map
• Screen Size: 8 inches
• Touchscreen: No

Why Choose the SI-TEX SVS-880CFE+?

The SI-TEX SVS-880CFE+ stands out in the marine electronics market with its comprehensive feature set tailored for serious boaters. Whether you're navigating open waters, fishing, or exploring coastal areas, this system provides the reliability and accuracy you need. The dual GPS antennas ensure superior signal reception, while the powerful sonar system delivers clear underwater views. Combined with versatile charting options and intuitive controls, the SVS-880CFE+ is an essential addition to any boat.

Purchase with Confidence

Equip your vessel with the SI-TEX SVS-880CFE+ and enjoy enhanced navigation, safety, and performance on every voyage. Order now from our marine and boating store and take advantage of our expert support and competitive pricing.
