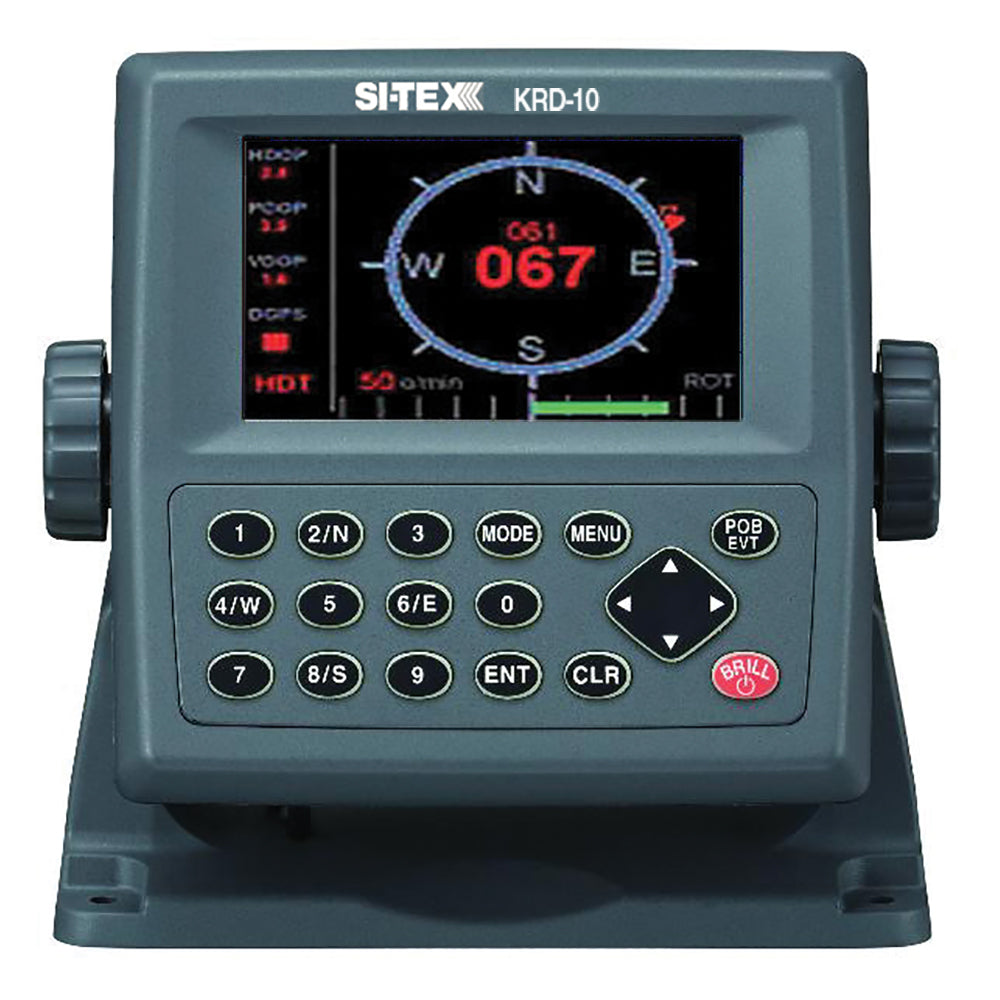

SI-TEX Color LCD NMEA 0183 Repeater

The Color LCD NMEA 0183 Repeater is an essential component for marine enthusiasts, offering seamless integration with your vessel’s navigation and monitoring systems. Engineered for optimal performance and straightforward installation, this repeater ensures clear data transmission and enhanced visibility, even in the most challenging marine environments.

Features

• Maximum performance with a straightforward setup process
• Bright 4.3" Color LCD Display, easily viewable under direct sunlight
• Bonded color LCD design for condensation-free operation and excellent visibility
• Compatible with NMEA-0183 interfaces, allowing seamless connection of external sensors for reliable operation
• 18 versatile display modes to suit various marine navigation needs
• Conversion capabilities from L/L to Loran C, Loran A, and Decca LOPs
• Advanced Track Plotter featuring 10,000-point memory, 100-route capacity, and 3,000 track point storage
• Energy-efficient operation with low 4.5-watt power consumption and a wide 10.8 to 31.2 VDC power supply range
• Easy flush mount installation for a sleek and integrated look

Specifications

Model	SI-TEX Model KRD-10
Display	4.3" Color LCD
Resolution	480 x 272 pixels (WQVGA)
Display Modes	Compass, Rate of Turn, Rudder Angle, Navigation, Plotter, Water Temperature, Highway, Weather Info
Interface	NMEA-0183 versions 1.5, 2.0, 3.0
Voltage	10.8 to 31.2 VDC
Water Protection	IPX6
Dimensions	5.75" W x 5.75" H x 2.75" D
Screen Size	4.3"
Shape	Rectangular
Box Dimensions	8" H x 10" W x 14" L
Weight	5.65 lbs
UPC	010407340449

What's in the Box

• KRD-10 Display with Mounting Bracket, Knobs, and Sun Cover
• Power Cable and NMEA Interface Cable
• Comprehensive Operation Manual

18 Functions Include:

• Navigation
• Steering
• Highway
• Depth
• Water Temperature
• Wind
• Heading
• Course
• Rate of Turn
• Position
• Current
• Weather Data
• Rate of Turn
• Rudder Angle
• Plotter
• Compass
• Water Temperature
• Weather Info

Download Brochure (PDF)
