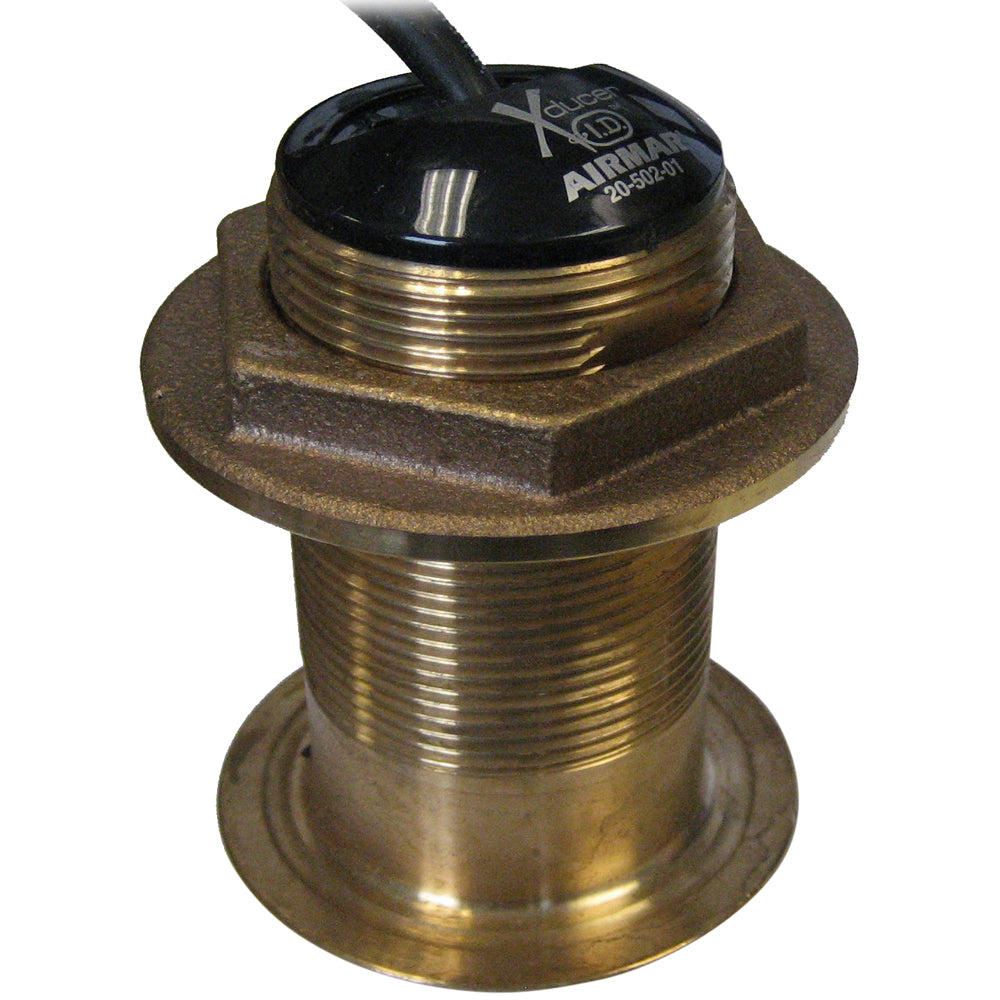

SI-TEX B-60-20 Tilted Element Transducer f/CVS-126 & CVS-128

The B-60-20 Tilted Element Transducer is expertly crafted for boats featuring 16° to 20° deadrise hulls, offering superior sonar performance in a slim, low-profile design. Ideal for anglers and boaters seeking reliable underwater imaging, this transducer delivers clear fish detection and precise depth measurements, enhancing your marine navigation and fishing adventures.

Outstanding Features

• High Power Output (600 Watts): Ensures robust sonar signals for deeper and more accurate underwater imaging, allowing you to locate fish and underwater structures with ease.
• Dual Frequency Capability (50/200kHz): Provides flexibility between wide-range navigation sonar and high-resolution fish finding frequencies, catering to various marine activities.

Detailed Specifications

Specification	Details
Temperature Sensor	Included
Speed Sensor	Not Included
Connector Pins	8
Mounting Style	Thru-Hull
Imaging Direction	Downward
Chirp Technology	No
Cable Length	30 feet
Box Dimensions	6" H x 6" W x 7" L
Weight	5 lbs
UPC	010407320625

Installation & Usage

The B-60-20 Tilted Element Transducer is designed for easy thru-hull mounting, ensuring a secure and stable installation on your vessel's hull. Its downward imaging direction provides clear and consistent sonar readings, making it an excellent addition to your boat's electronics setup.

Additional Resources

Owner's Manual (PDF)
Brochure (PDF)
