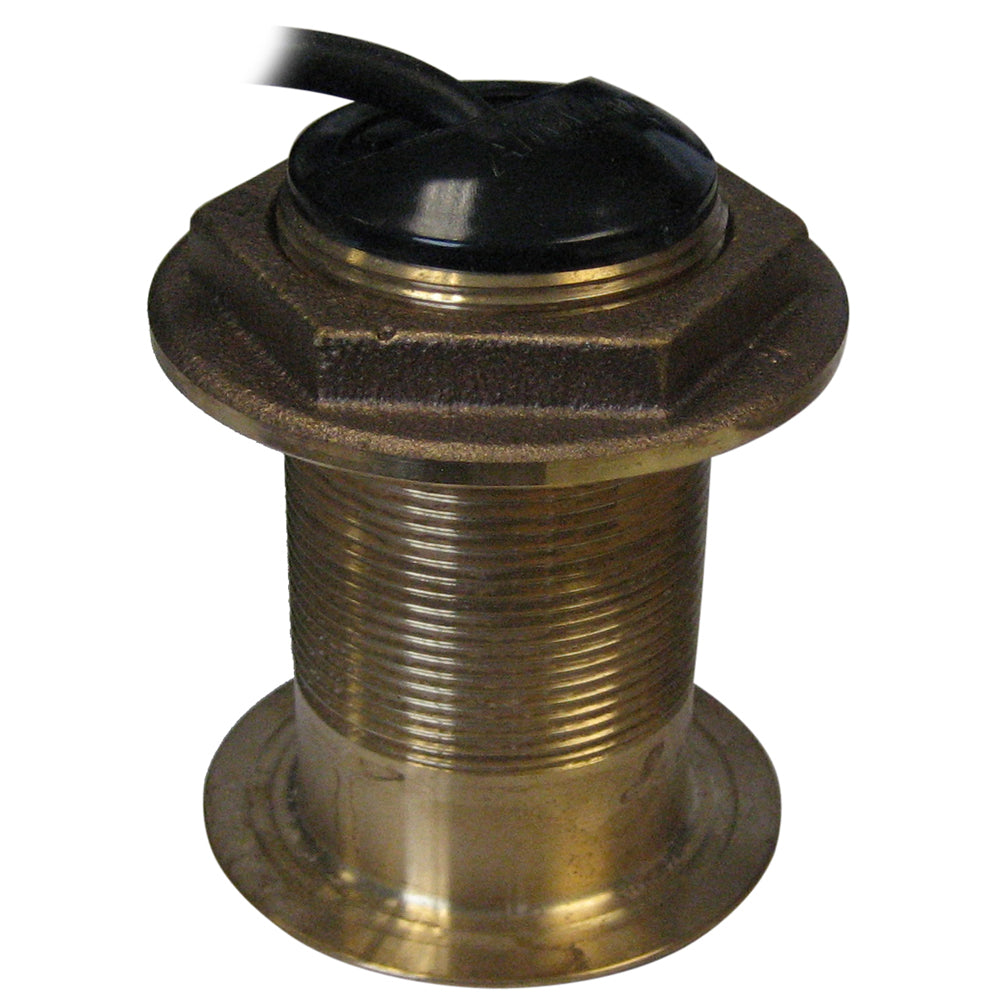

SI-TEX B-60-12-ES Tilt Element Transducer f/EC5F EC7F ES502

The Bronze 12 Degrees Tilt-Element Thru-Hull is an essential upgrade for boating enthusiasts seeking enhanced underwater imaging and reliable performance. Designed to accommodate hull deadrise angles between 8 and 15 degrees, this tilt-element ensures optimal sonar functionality, providing clear and accurate readings for various marine applications.

Key Benefits

• Enhanced Imaging: Achieve precise underwater visuals with beam angles of 45° at 50kHz and 12° at 200kHz.
• Temperature Monitoring: Integrated temperature sensor allows for comprehensive data collection.
• Durable Construction: Crafted from high-quality bronze for longevity and resistance to marine environments.
• Flexible Installation: Thru-hull mounting style offers seamless integration with your vessel's existing setup.

Technical Specifications

Aspect	Details
Pins	8
Temperature Sensor	Yes
Speed Included	No
Mounting Style	Thru-Hull
Imaging Direction	Downward
Chirp Capability	No
Cable Length	30 feet
Box Dimensions	4" H x 8" W x 10" L
Weight	4.9 lbs

Installation Guidelines

Installing the Bronze 12 Degrees Tilt-Element Thru-Hull is straightforward with its thru-hull mounting style. Ensure that your vessel's hull deadrise falls within the 8° to 15° range for optimal performance. Follow the step-by-step instructions provided in the Owner's Manual to securely mount the tilt-element and connect it to your sonar system.

Additional Information

For comprehensive installation instructions and further product details, download the Owner's Manual (PDF).
