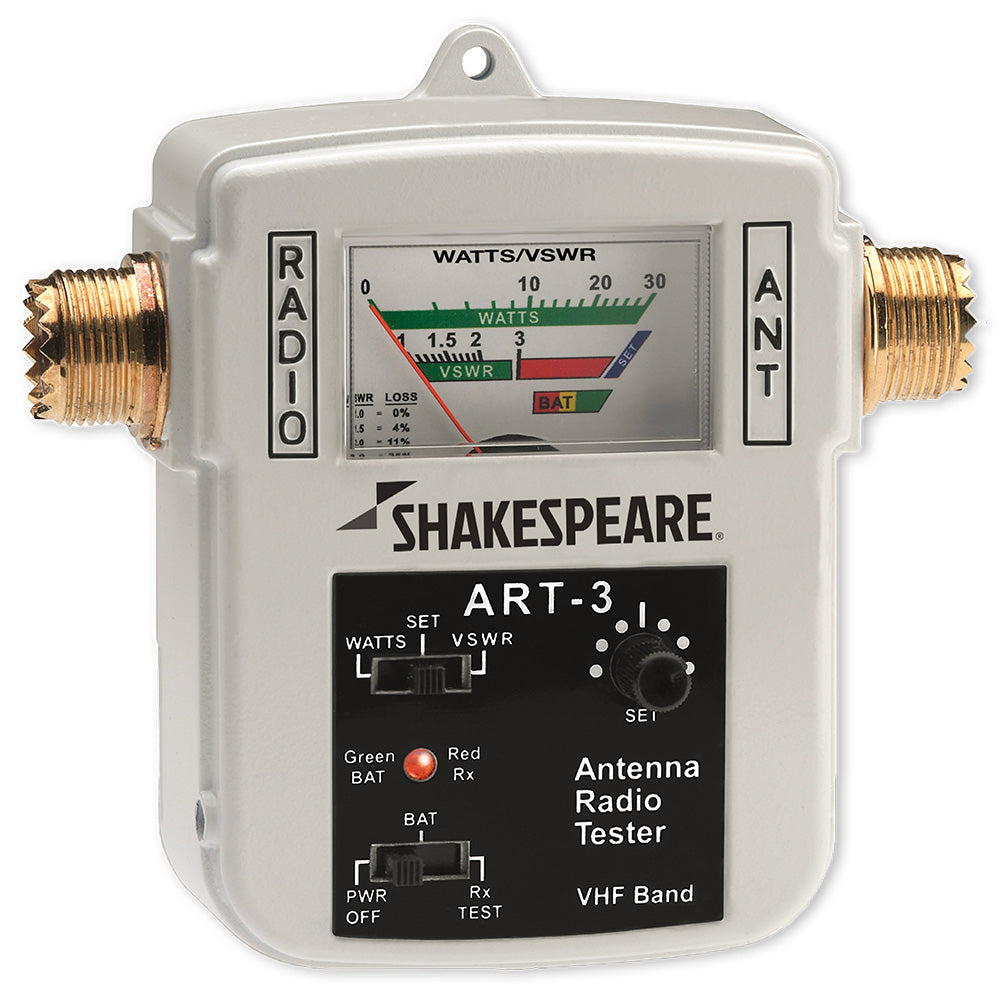

Shakespeare ART-3 Antenna Radio Tester

The ART-3 Antenna Radio Test unit is an essential tool for every boater, offering a compact and user-friendly solution for monitoring and testing your VHF radio system. Ensure reliable communication on the water by testing not only the output power and VSWR (antenna efficiency) but also the receiver function without the hassle of traditional radio checks.

Features

• Comprehensive testing of receiver functionality, output power, and VSWR for optimal antenna performance
• Compact and easy to use, perfect for on-board applications
• Dual power options: internal battery or connection to your vessel's 12 VDC system
• Convenient battery level indicator for quick monitoring
• Durable die-cast aluminum construction designed to withstand harsh marine environments

Specifications

Frequency Range	155-158 MHz
RF Power Scale	0 to 30 watts
Impedance	50 ohms
Accuracy	±10%
Connectors	SO-239
Signal Generator	3 KHz Deviation
Tone	1000 Hz
RF Level	Approximately -115 dBm

Construction

The ART-3 is built with a robust die-cast aluminum body, ensuring durability and resistance to the corrosive marine environment. Its sturdy design makes it a reliable companion for any serious boater, providing long-lasting performance on the water.

Power Options

The ART-3 offers flexible power solutions to suit your boating needs. It can be powered by its internal rechargeable battery for convenient on-the-go use or connected to your vessel's 12 VDC system using the supplied power cable. The battery level is easily checked with a flip switch, ensuring you always know when it's time to recharge.

Additional Accessories

Enhance your ART-3 setup with the Style 4079 one-meter cable, sold separately. This cable allows you to seamlessly connect the ART-3 or ART-2 to your VHF radio, ensuring optimal performance and ease of use.

Product Details

Part Number	ART-3
Type	Misc
Box Dimensions	2" H x 6" W x 8" L
Weight	0.45 lbs
UPC	719441151034

Download the Quick Guide (PDF)
