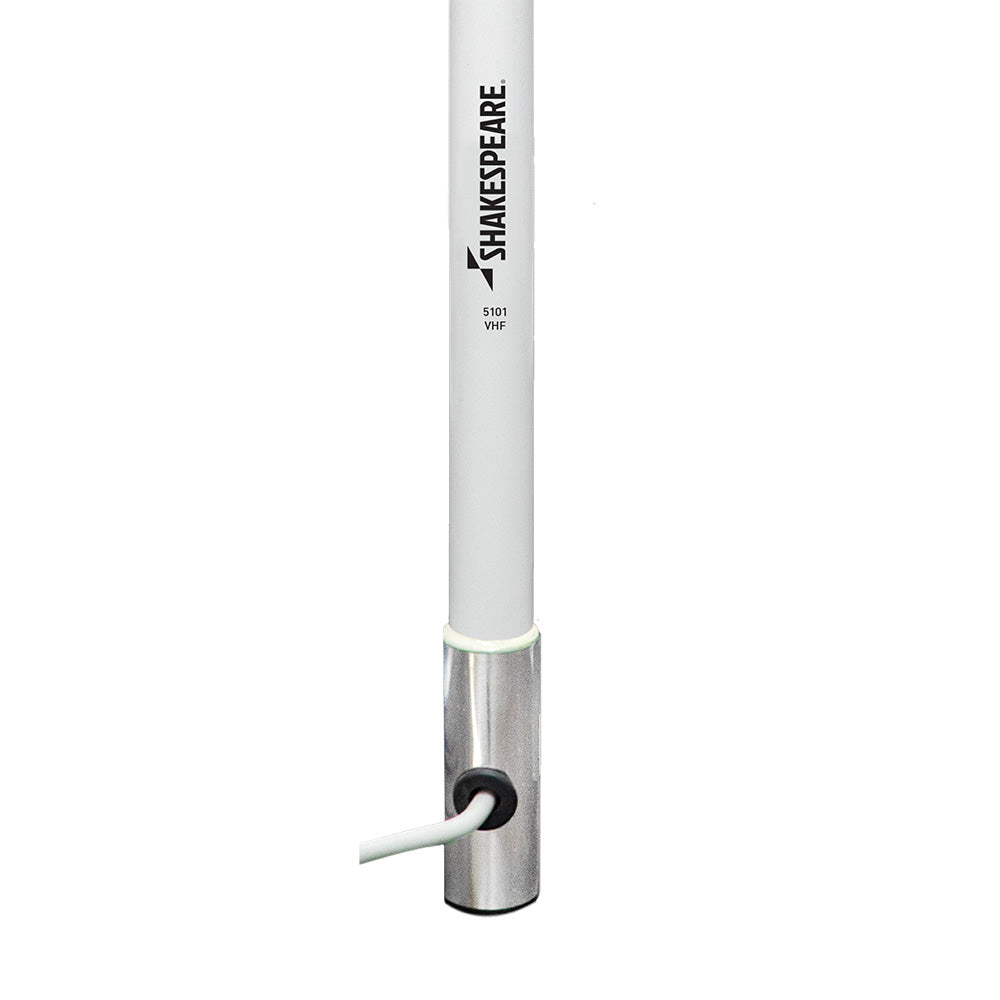

Shakespeare 5101 8 Classic VHF Antenna w/15' RG-58 Cable - White
Shakespeare 5101 8 Classic VHF Antenna w/15' RG-58 Cable - White is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The 5101 8’ Classic VHF Antenna by Shakespeare is the perfect blend of high-performance and affordability for your marine needs. Designed with durability and reliability in mind, this white antenna features a brass element and a high-gloss polyurethane finish that resists yellowing from sun exposure, ensuring it maintains its pristine look over time. Whether you're navigating open waters or anchored near the shore, this antenna provides exceptional VHF marine band communication capabilities for a seamless boating experience.
Key Features
- Constructed with brass and copper elements for enhanced durability and performance
- Chrome-plated brass ferrule with standard 1"-14 thread for easy installation
- Includes a 15' RG-58 cable equipped with a PL-259 connector for reliable signal transmission
- Versatile mounting options: Compatible with Shakespeare Style 4187 Ratchet Mount or use the Shakespeare Style 410-R Mounting Kit combined with the Style 4008 Extension Mast to form a 16' antenna system
- Single-section design for simplicity and ease of installation
- Backed by a 2-year Shakespeare limited warranty ensuring quality and support
Technical Specifications
| Parameter | Details |
|---|---|
| Frequency | VHF Marine Band |
| Bandwidth | 5 MHz (within 2.0:1 SWR) |
| SWR | 1.5:1 at 156.8 MHz |
| Impedance | 50 Ohms |
| Gain | 6 dB |
| Maximum Input Power | 50 Watts |
| DC Ground | Yes - Note: Antenna reads "open circuit" when tested with an ohmmeter |
| Termination | 15' RG-58 cable included |
| Height | 8 feet |
| Polarization | Vertical |
| Radiation Pattern | Omni-directional |
Additional Specifications
| Specification | Details |
|---|---|
| Antenna Band | VHF |
| Color | White |
| Construction | Fiberglass |
| Ferrule Type | Chrome Plated |
| Length | 96 inches |
| Box Dimensions | 2" H x 2" W x 95" L |
| Weight | 3.8 lbs |
| UPC | 719441100490 |
Installation and Compatibility
The 5101 Classic VHF Antenna is designed for straightforward installation on a variety of marine vessels. It is compatible with common mounting solutions such as the Shakespeare Style 4187 Ratchet Mount, providing a secure fit on your mast or other mounting points. Additionally, for those requiring an extended reach, pairing it with the Shakespeare Style 410-R Mounting Kit and the Style 4008 Extension Mast allows you to configure a 16-foot antenna system, ensuring optimal signal reception and transmission.
Warranty and Support
Shakespeare stands behind the quality of their antennas with a 2-year limited warranty. This ensures that your investment in the 5101 Classic VHF Antenna is protected, and you have access to dedicated support should any issues arise during its use.
