Shakespeare 396-1-AIS Broadband VHF for AIS System
Shakespeare 396-1-AIS Broadband VHF for AIS System is backordered and will ship as soon as it is back in stock.
Product Description
Product Description

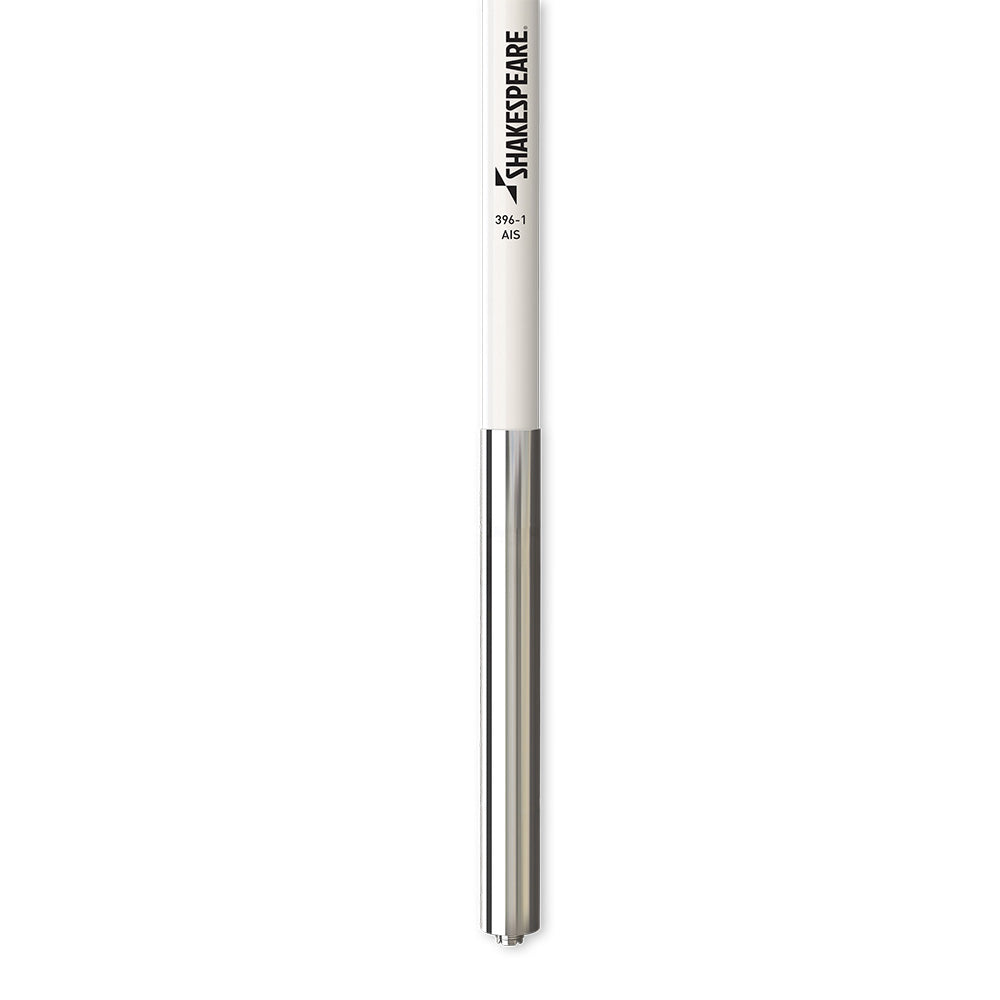

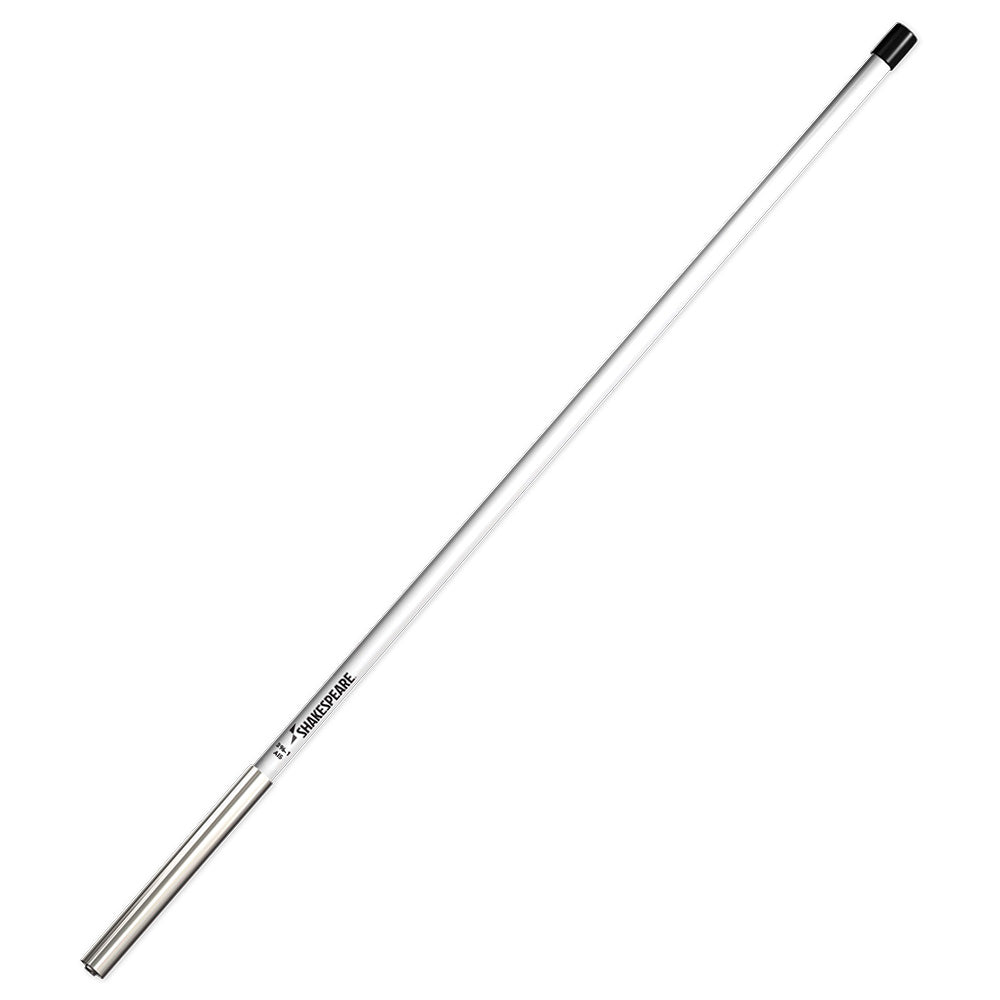

The Shakespeare Style 396-1-AIS VHF Marine AIS antenna is meticulously crafted for optimal performance on all popular AIS transceivers. With its commercial-grade fiberglass construction and robust mast mounting sleeve, this 4-foot antenna ensures reliable communication and durable service in marine environments.
Key Features
- High-Quality Construction: Features brass and copper elements for enhanced durability and performance.
- Secure Mounting: Comes with U-bolts for easy mast installation. Can also be strapped to larger masts using steel banding (not supplied).
- Connector Type: Equipped with an SO-239 connector at the base for seamless integration with your AIS transceiver.
- Optimized Design: One-section antenna designed to meet the broader bandwidth requirements of commercial AIS systems.
- Warranty: Backed by a 2-year limited warranty from Shakespeare.
- Additional Note: Coax cable is sold separately, allowing you to choose the length that best fits your setup.
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency | VHF Marine Band |
| Bandwidth within 2.0:1 SWR | 6.0 MHz |
| SWR | 1.5:1 at 156.8 MHz |
| Gain | 3dB |
| Impedance (Ohms) | 50 |
| Max. Input (Watts) | 100 |
| DC Ground | No (will read open-circuit with ohmmeter test) |
| Termination | SO-239 at bottom of antenna |
| Height | 4 feet |
| Polarization | Vertical |
| Radiation Pattern | Omni-directional |
Additional Specifications
| Specification | Details |
|---|---|
| Antenna Band | VHF |
| Color | White |
| Construction | Fiberglass |
| Length | 48 inches |
| Box Dimensions | 3"H x 3"W x 55"L |
| Weight | 3 lbs |
| UPC | 719441170585 |
Installation Guide
The Shakespeare 396-1-AIS antenna is designed for straightforward installation on your vessel’s mast. Utilize the included U-bolts for a secure fit, or opt for steel banding to attach to larger masts for enhanced stability. Ensure that the antenna is mounted in a vertical polarization for optimal omni-directional radiation pattern and AIS performance.
Additional Resources
Download the Quick Guide (PDF)
Product Video
