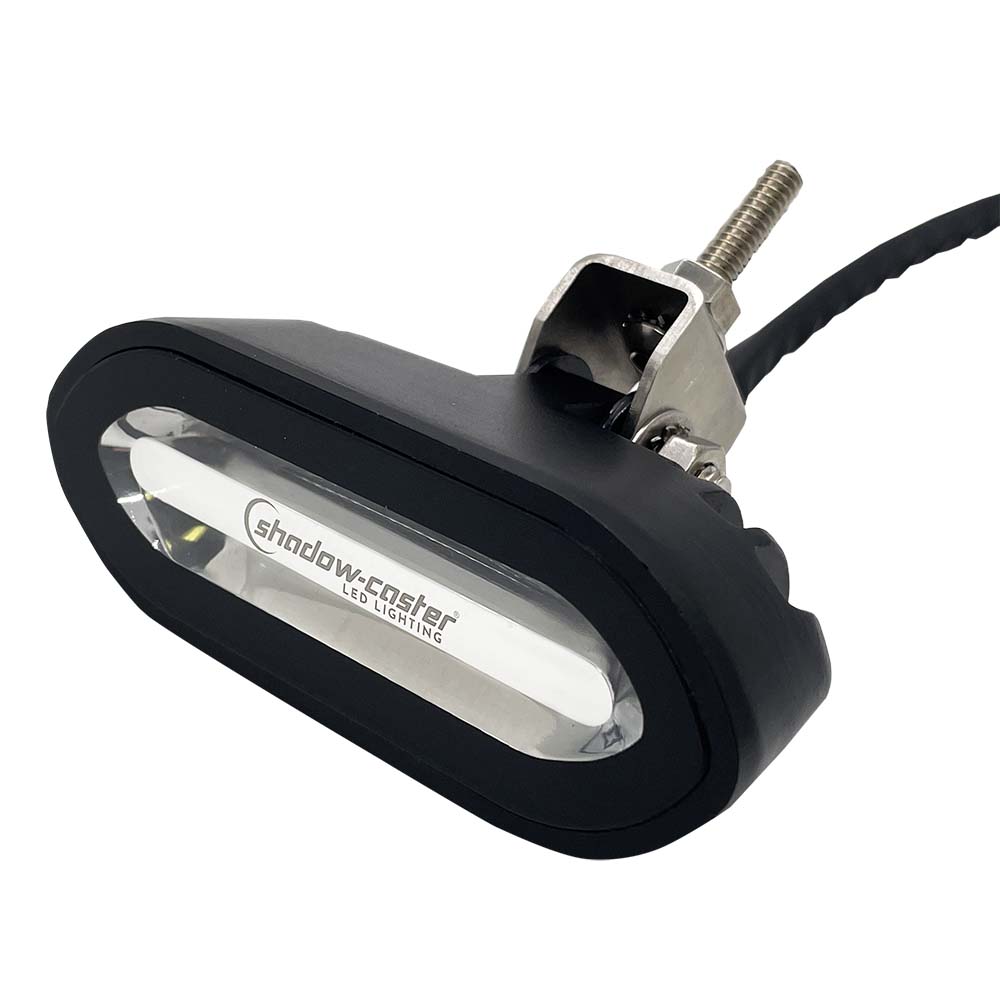

Shadow-Caster SCM-SL Series Bracket Mount Spreader Light - Black Housing - Full-Color

The SCM-SL Series Bracket Mount Spreader Light in black housing is the ideal solution for illuminating decks and expansive areas on your boat or yacht. Designed specifically for marine applications, this spreader light provides robust performance and reduces glare, ensuring a safe and visually appealing environment for all on board.

Product Overview

The Shadow-Caster Spreader Light features a unique reflector design that meticulously spreads light beams to minimize glare, enhancing visibility without compromising comfort. Whether you choose the flush mount version for seamless installation on T-Tops or the bracket mount version for retrofitting existing setups, this versatile lighting solution is available in both black and white finishes. With three color output options—single color white, dual colors white and blue, and a vibrant full-color version—you can effortlessly control brightness and color through a standard switch, allowing for personalized lighting to match your marine setting.

Key Features

• Soft Start Technology: Gently ramps up brightness over 2 seconds, providing a smooth lighting experience and protecting the LED longevity.
• Power Toggle Feature: Easily set brightness levels and switch colors with a convenient power toggle.
• True White LED: Ensures the best color performance for clear and natural lighting.
• High-Efficiency Switch Mode Power Supply: Delivers reliable and efficient power consumption for extended use.
• Waterproof Low-Profile Aluminum Housing: Durable construction with IP67 waterproof rating to withstand harsh marine environments.
• Color Finish Options: Available in both white and black finishes to complement your boat’s aesthetics.
• Unique Reflector Design: Reduces glare for comfortable and effective illumination.

Technical Specifications

Specification	Details
Brightness	1500 lumens
Beam Angle	60 degrees
Power Draw	16 watts
Input Voltage	10-30 volts
Current	1.4A at 12 volts, 0.7A at 24 volts
Color Temperature	6200 Kelvin (Cool White)
Dimensions	5″ (127mm) width x 1.5″ (38mm) height x 1.3″ (33mm) mounting depth
Waterproof Rating	IP67
Lens Material	Durable glass
Control Interface	Shadow-NET® interface (full-color version)

What's Included

• SCM-SL Series Spreader Light
• Mounting Hardware:
  • Mounting screws
  • Two #4 x 0.5” SS3160H screws (with flush mount version)
• Quick Start Guide
• Standard 2-Year Warranty

Why Choose the SCM-SL Series Spreader Light?

Engineered specifically for the demanding marine environment, the SCM-SL Series Spreader Light offers exceptional durability and performance. Its low-profile aluminum housing not only ensures longevity but also maintains a sleek look that blends seamlessly with your boat’s design. The customizable lighting options allow you to tailor the illumination to your specific needs, whether for enhanced safety during nighttime navigation or for aesthetic purposes during daytime outings. With easy installation and reliable functionality, this spreader light is a top choice for boating enthusiasts seeking to upgrade their vessel’s lighting system.
