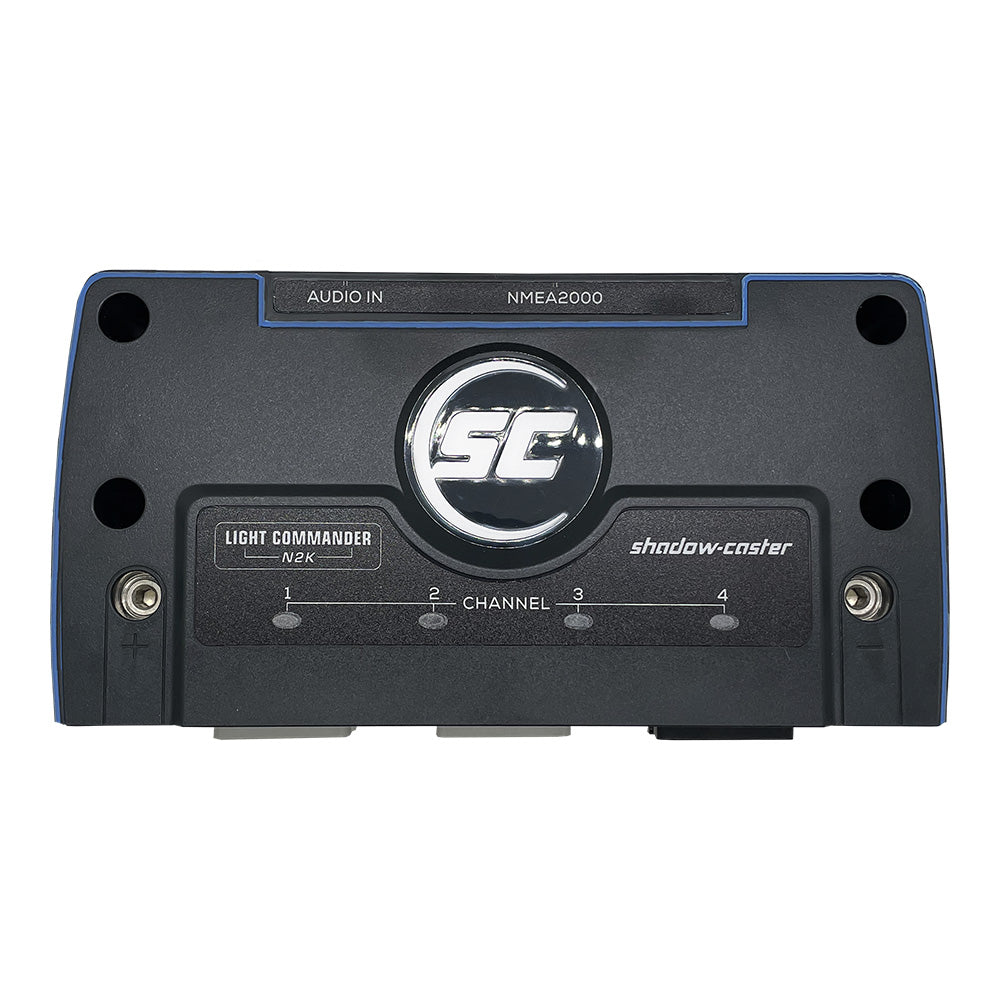

Shadow-Caster Light Commander NMEA 2000 6-Zone Lighting Controller (NMEA 2000 Only - No MFD Network or Wi-Fi/Bluetooth Connectivity

The Shadow-Caster Light Commander is the ultimate NMEA2000-connected lighting controller designed specifically for marine applications. Engineered with the latest NMEA2000 lighting control standards, it offers unparalleled integration and interoperability for your boat's lighting systems. Whether you're looking to enhance ambiance or improve functionality, the Light Commander provides robust, multi-zone lighting control to elevate your maritime experience.

Advanced Lighting Control for Your Marine Vessel

The Light Commander supports up to six separate lighting zones per module, with native support for four zones of RGB or RGBW lighting. Expand your system up to 18 zones by connecting multiple units, allowing for comprehensive customization and control over your vessel's lighting. Whether you're sailing by day or night, easily adjust your lights to create the perfect atmosphere or enhance visibility.

Intelligent Features for Seamless Operation

• Multi-Program Support: Choose from multiple color fade, music sync, and color rotation programs to match your mood or activities on board.
• Instant ON Switches: Utilize the six “Instant ON” switch inputs to activate lights without relying on MFD control, offering quick and easy access.
• Music Synchronization: Built-in 3.5mm audio port and microphone enable your lights to sync with your favorite tunes, enhancing your onboard entertainment.
• Backlit Indicators: The backlit logo and zone indicator LEDs provide clear visual feedback on functions and operations, ensuring ease of use in all lighting conditions.

Rugged and Reliable Design

Built to withstand harsh marine environments, the Light Commander features an IP67-rated waterproof enclosure and Deutsch-style connections for secure, leak-proof installations. The digitally fused overcurrent protection circuits support 15 amps per channel (up to 60 amps total), ensuring reliable performance even under demanding conditions.

Comprehensive Specifications

Feature	Details
Enclosure Dimensions	8.9” (226mm) x 4.75” (120mm) x 1.8” (46mm)
Ingress Protection	IP67 Rated
Power Support	Over 600 watts of RGB lighting and virtually limitless Shadow-NET® connected modules
Current Capacity	15 amps per zone, 60 amps max
Input Voltage Range	10 to 30V
Audio Synchronization	Direct 3.5mm female audio input or built-in microphone
Connectivity Options	Optional Wi-Fi/Bluetooth for Shadow-Caster Light Commander Mobile app
Digital Signal Processing	Onboard DSP for music synchronization
Expandability	Shadow-Net® bus allows system expandability
Power Protection	Digital power protection set at 15 amps per channel
Switch Inputs	Built-in inputs for instant-on lighting for each zone
Color Support	24-bit color and gamma correction for universal color support

Easy Installation and Integration

The Light Commander is designed for hassle-free installation with its all-in-one design, eliminating the need for a separate MFD communication bridge. The Deutsch-style IP67 rated connections ensure clean OEM installations, providing a seamless integration with your existing marine systems. Additionally, the optional wireless connectivity allows for convenient control from your mobile device using the Shadow-Caster Light Commander Mobile app.

Get Started Today

Enhance your boat's lighting system with the Shadow-Caster Light Commander and experience the perfect blend of control, reliability, and style. For more information and installation guidance, download our Quick Guide (PDF).
